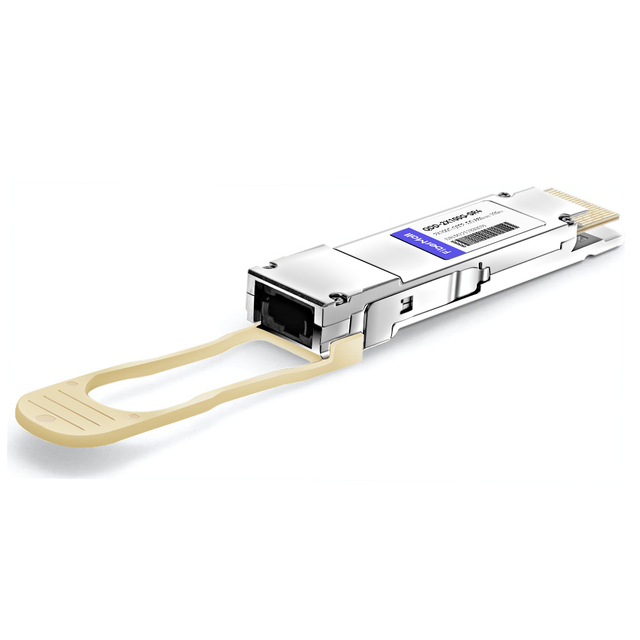

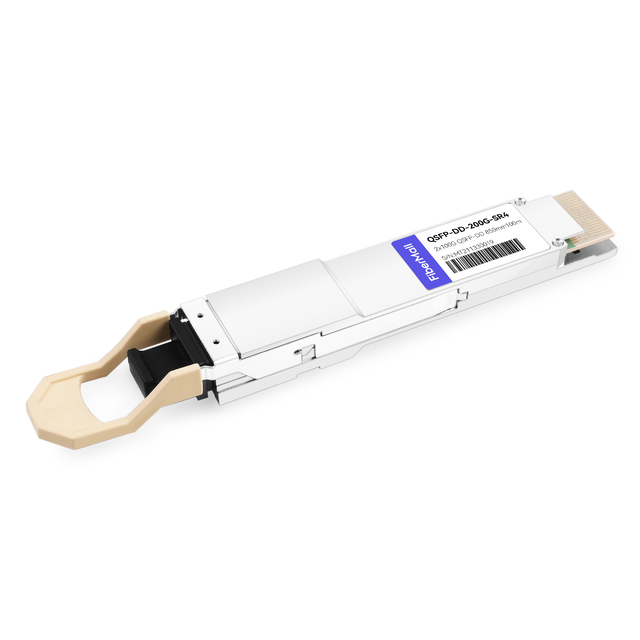

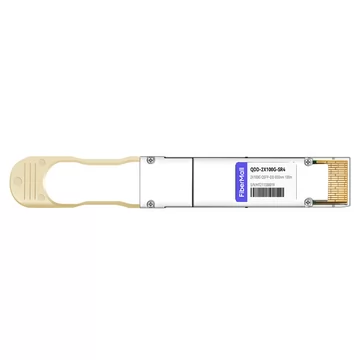

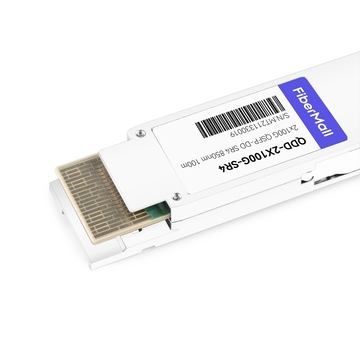

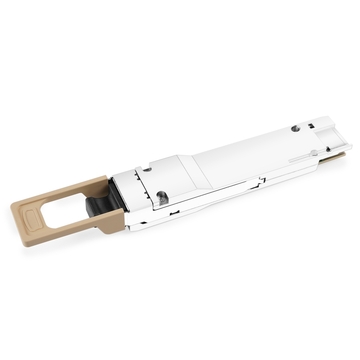

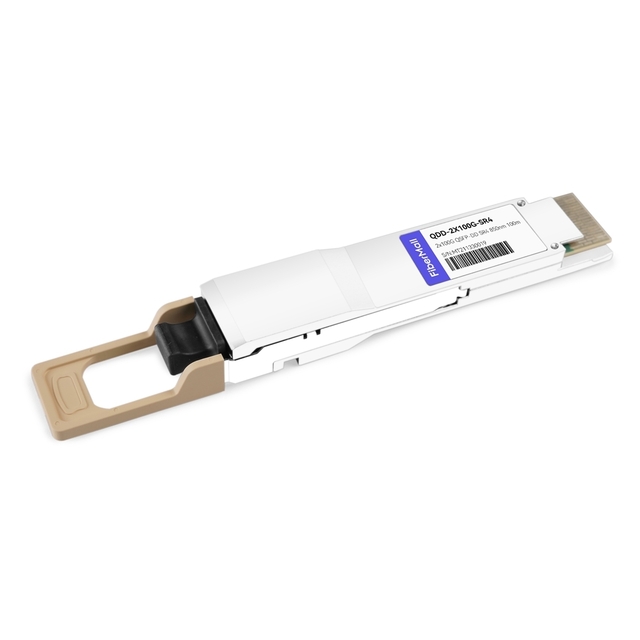

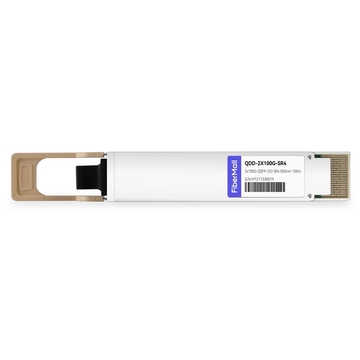

Dell Q28DD-200G-2SR4 Compatible 2X100G QSFP-DD SR4 850nm 70m/100m OM3/OM4 MTP/MPO MMF Optical Transceiver Module

Name: Dell Q28DD-200G-2SR4 Compatible 2X100G QSFP-DD SR4 850nm 70m/100m OM3/OM4 MTP/MPO MMF Optical Transceiver Module
Brand: fibermall
SKU: 20188
Price: 380.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20188

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Dell; Juniper Networks

Transceiver Type: Q56-200G-SR4; Q28DD-200G-2SR4

FM PN:

QSFP-DD-200G-SR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

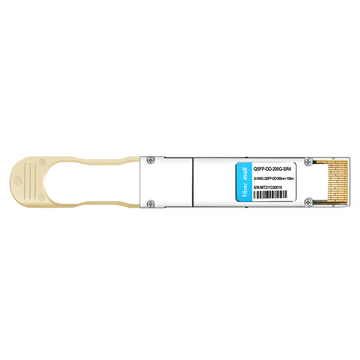

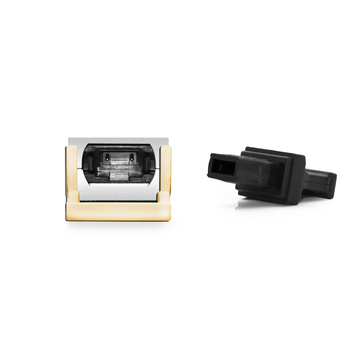

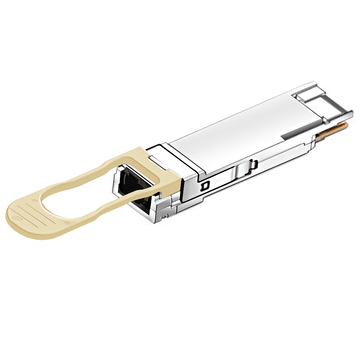

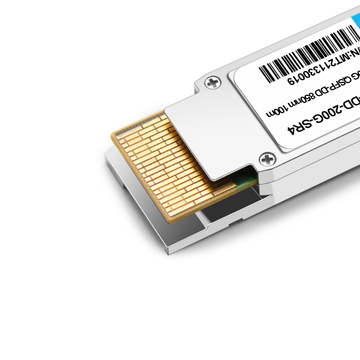

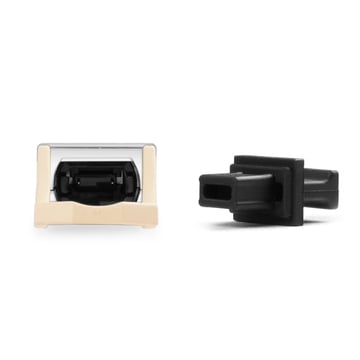

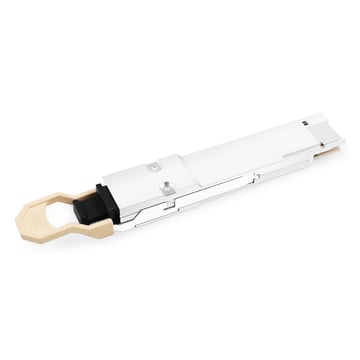

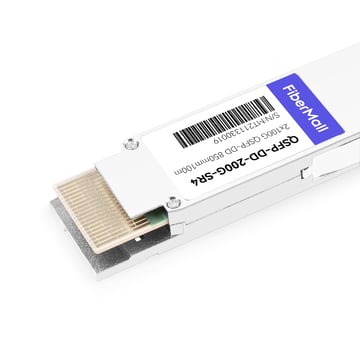

Dell Q28DD-200G-2SR4 Compatible 2X100G QSFP-DD SR4 Optical Transceiver Module (850nm MTP/MPO MMF 70m/100m OM3/OM4 DDM)

2X100G QSFP-DD SR4 transceiver provides 200GBase-SR4 throughput up to 100m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO-24 connector. It supports Digital optical monitoring (DOM). Its easy-to-install, hot-swappable transceiver has been programmed, uniquely serialized, and data-traffic and application tested to ensure that it will initialize and perform identically.

Product Details

Dell Compatible	Q28DD-200G-2SR4	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	200Gbps
Wavelength	850nm	Max Distance	70m on OM3/100m on OM4
Connector	MTP/MPO-24	Voltage Supply	3.3V
Cable Type	MMF	DDM Support	Yes
Transmitter Type	850nm VCSEL	Receiver Type	PIN
TX Power	Each Lane	Receiver Sensitivity	< -10.3dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 5W
Protocols	IEEE 802.3bm 100GBASE- SR4, QSFP-DD MSA	Application	200G Ethernet, Data Center Interconnect

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v Compliant with QSFP-DD MSA

v Compliant with IEEE 802.3bm 100GBASE-SR4 standards

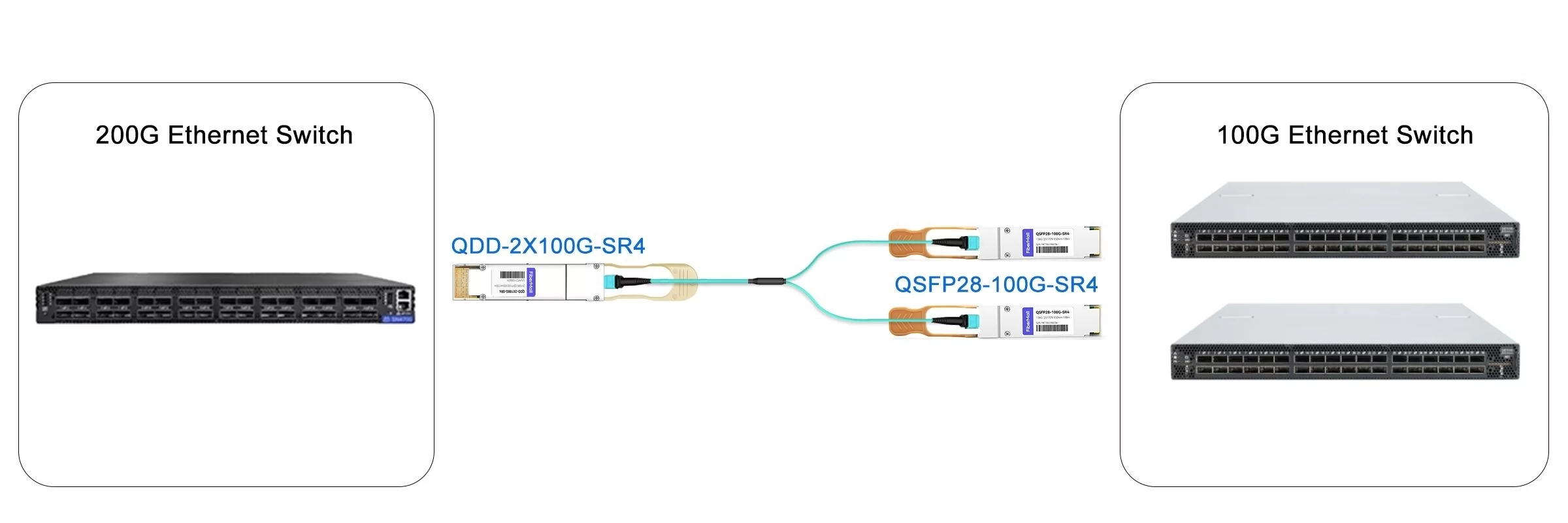

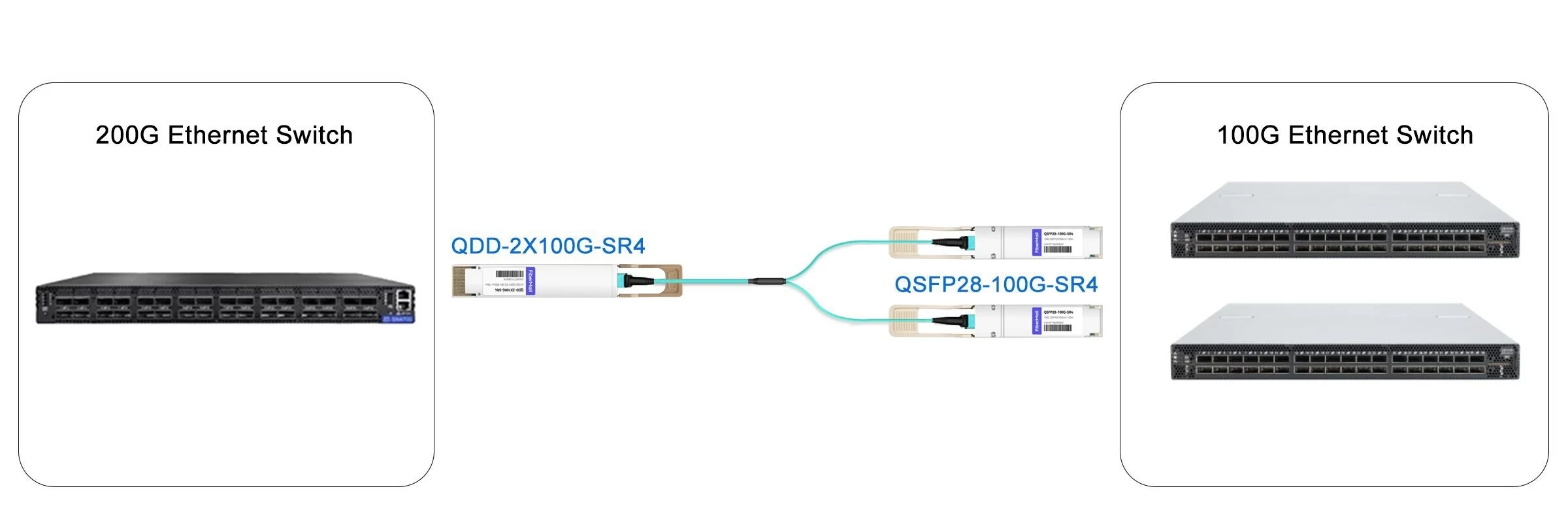

v Supports 2x100 Gbps data rate links of up to 70m via OM3 MMF and 100m via OM4 MMF

v 3.3V single power supply

v Power consumption < 5W

v Standard Optical fiber with MPO-12 two-row optical connector

v Compliant with RoHS, UL & TUV
