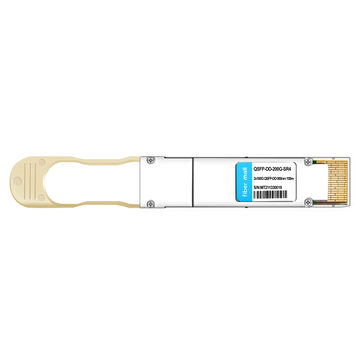

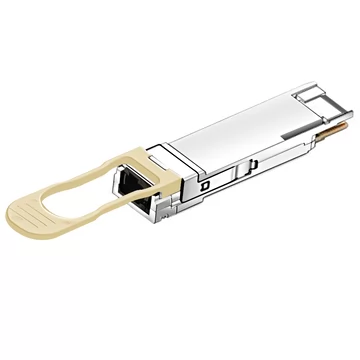

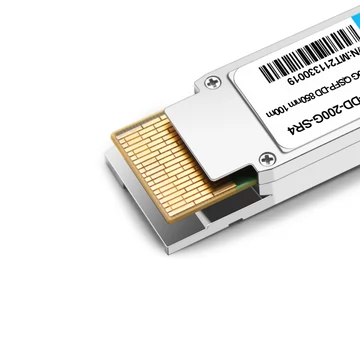

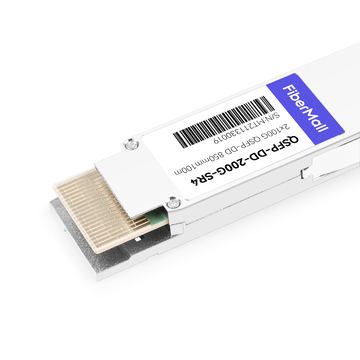

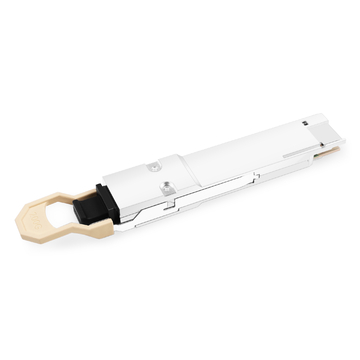

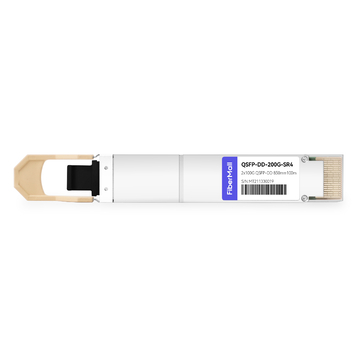

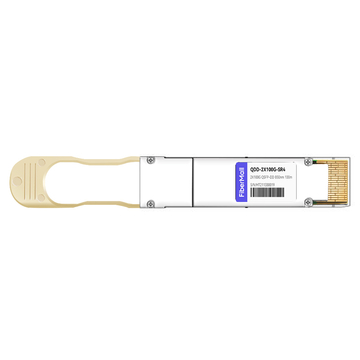

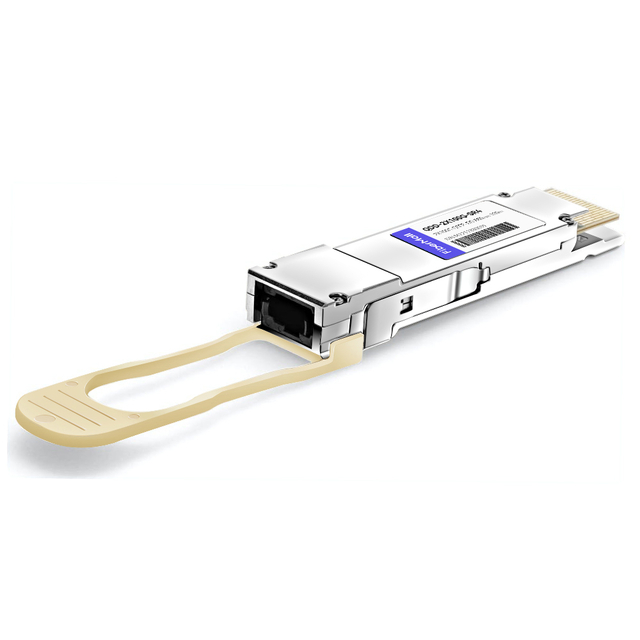

2X100G QSFP-DD SR4 transceiver provides 200GBase-SR4 throughput up to 100m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO-24 connector. It supports Digital optical monitoring (DOM). Its easy-to-install, hot-swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically.
| Juniper Networks Compatible | QDD-2X100G-SR4 | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 200Gbps |
| Wavelength | 850nm | Max Distance | 70m on OM3/100m on OM4 |

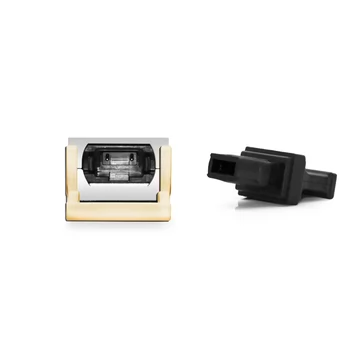

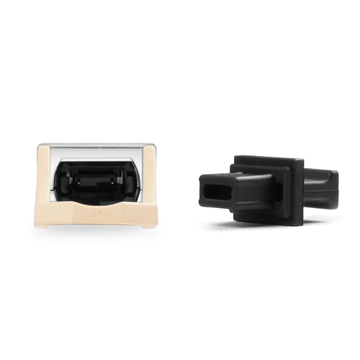

| Connector | MTP/MPO-24 | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| TX Power | Each Lane | Receiver Sensitivity | < -10.3dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 5W |
| Protocols | IEEE 802.3bm 100GBASE- SR4, QSFP-DD MSA | Application | 200G Ethernet, Data Center Interconnect |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Compliant with QSFP-DD MSA
v Compliant with IEEE 802.3bm 100GBASE-SR4 standards
v Supports 2x100 Gbps data rate links of up to 70m via OM3 MMF and 100m via OM4 MMF
v 3.3V single power supply
v Power consumption < 5W
v Standard Optical fiber with MPO-12 two-row optical connector
v Compliant with RoHS, UL & TUV
