NVIDIA QSFP-DD 400GBASE-SR4 Transceiver | FiberMall

Add to wish

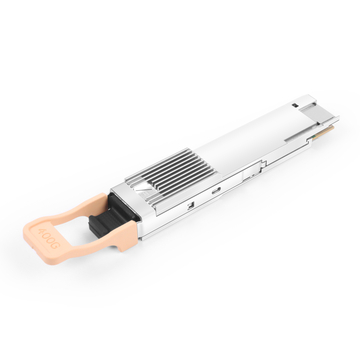

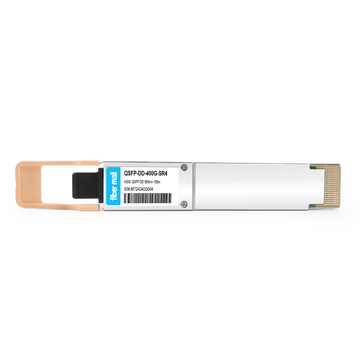

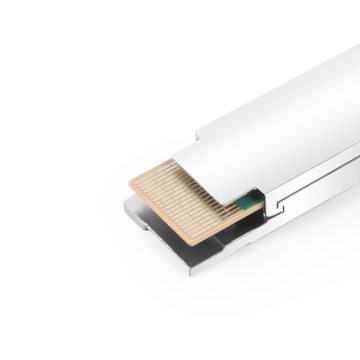

NVIDIA Compatible QSFP-DD 400GBASE-SR4 PAM4 850nm 100m DOM MPO-12 OM4 FEC Optical Transceiver Module

Name: NVIDIA Compatible QSFP-DD 400GBASE-SR4 PAM4 850nm 100m DOM MPO-12 OM4 FEC Optical Transceiver Module
Brand: fibermall
SKU: 20160
Price: 600.00 USD
Availability: OutOfStock
Rating: 5 (5 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20160

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista; Huawei; Juniper; NVIDIA

Transceiver Type: QSFP-DD-400G-SR4-NV

FM PN:

QSFP-DD-400G-SR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

NVIDIA Compatible 400G QSFP-DD SR4 PAM4 Optical Transceiver Module (850nm MTP/MPO-12 OM3/OM4 60m/100m with FEC DDM)

400G QSFP-DD SR4 connects 400G QSFP-DD switches and NVIDIA ConnectX-7 NDR 400G OSFP or QSFP112 InfiniBand Adapter Card.

Product Details

Fiber Mall P/N	QSFP-DD-400G-SR4	Vendor Name	FiberMall
Form Factor	QSFP-DD	Wavelength	850nm
Max Distance	60m on OM3/100m on OM4	Modulation Format	PAM4
Host Required	FEC	Connector	MTP/MPO-12
Voltage Supply	3.3V	Cable Type	MMF
Modulation (electrical)	8x53.125Gb/s PAM4	Modulation (Optical)	4x106.25Gb/s PAM4
TX Power	-4.6~+4.0dBm	Receiver Sensitivity	<-6.4dBm
DDM Support	Yes	Receiver Type	PIN
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	<9W
Protocols	QSFP-DD MSA, IEEE 802.3bs	Application	400G Ethernet, Data Center Interconnect

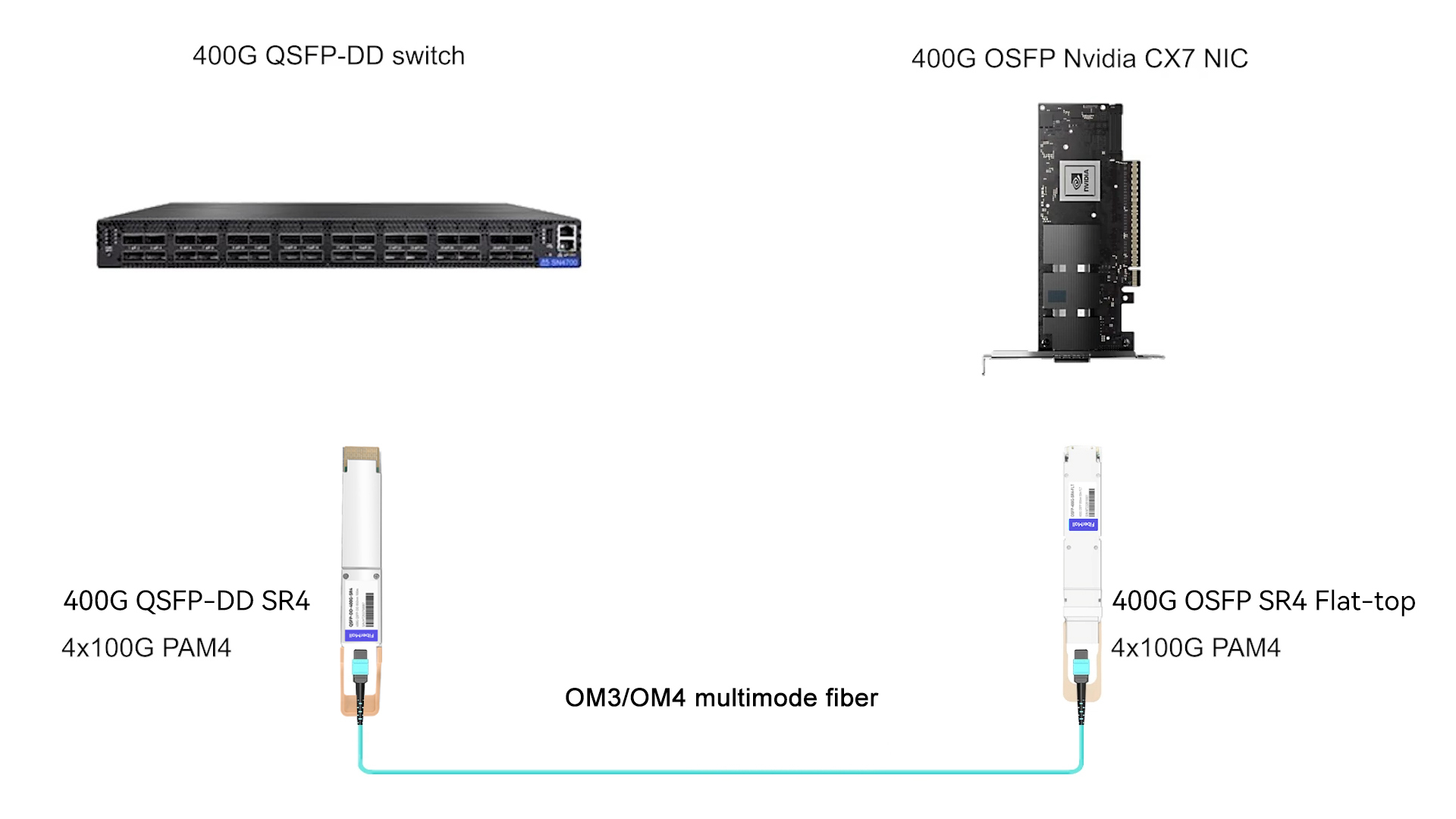

400G QSFP-DD Switch to 400G NVIDIA OSFP NIC

400G QSFP-DD Switch to 400G NVIDIA OSFP NIC Link

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP-DD-400G-SR4	OSFP-400G-SR4-FLT
Fiber Mall P/N	QSFP-DD-400G-SR4	-
Vendor Name	FiberMall	FiberMall
Form Factor	QSFP-DD	OSFP
Wavelength	850nm	850nm
Max Distance	60m on OM3/100m on OM4	30m on OM3/50m on OM4
Modulation Format	PAM4	PAM4
Host Required	FEC	FEC

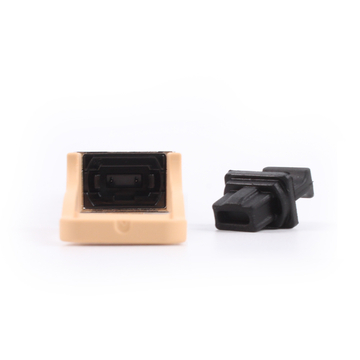

Connector	MTP/MPO-12	MPO-12 (APC)
Voltage Supply	3.3V	3.3V
Cable Type	MMF	MMF
Modulation (electrical)	8x53.125Gb/s PAM4	-
Modulation (Optical)	4x106.25Gb/s PAM4	-
TX Power	-4.6~+4.0dBm	-4.6~+4.0dBm
Receiver Sensitivity	<-6.4dBm	< -4.6dBm
DDM Support	Yes	Yes
Receiver Type	PIN	PIN
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	<9W	< 8W
Protocols	QSFP-DD MSA, IEEE 802.3bs	OSFP MSA, IEEE 802.3bs
Application	400G Ethernet, Data Center Interconnect	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Product Features

QSFP-DD Serial Optical Interface

v 8x50G PAM4 retimed 400GAUI-8 electrical interface

v MPO-12 APC connector

v 4 channel VCSEL arrays and 4 channels PIN photo detector arrays

v Maximum link length of 60m on OM3 or 100m on OM4

QSFP-DD MSA Compliant

v Compliant to QSFP-DD Module Specification Rev 6.0

v Compliant with CMIS 5.2

Support Protocol

v Compliant with IEEE 802.3db

v Compliant to IEEE 802.3bs

Low Power Consumption

v Less than 9W in the temperature range of 0 to 70℃

Applications

v Data Center
