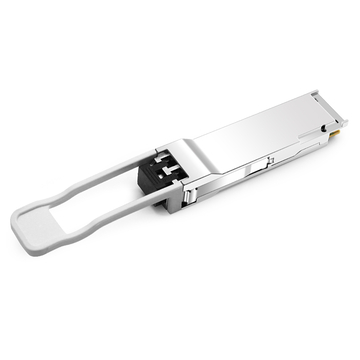

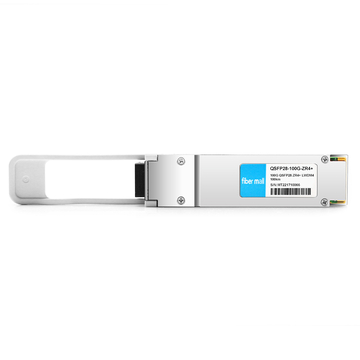

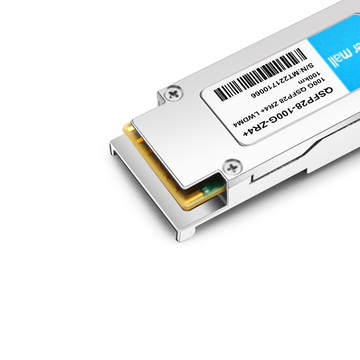

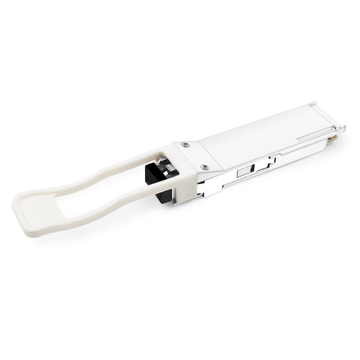

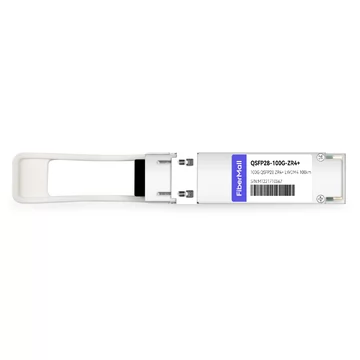

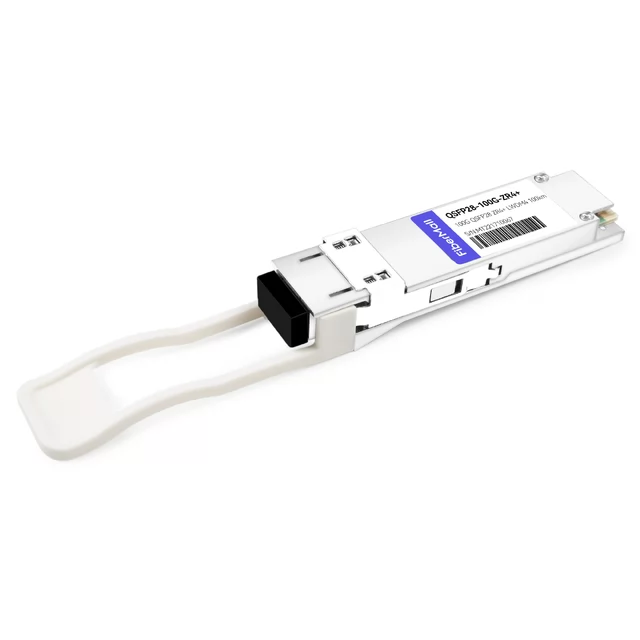

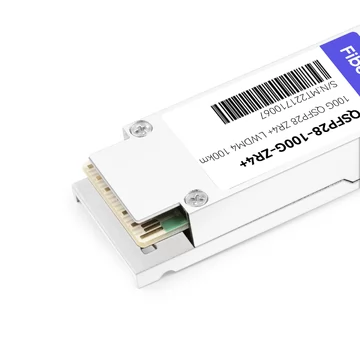

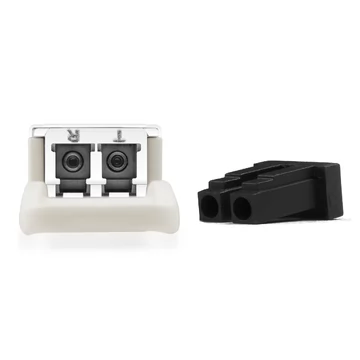

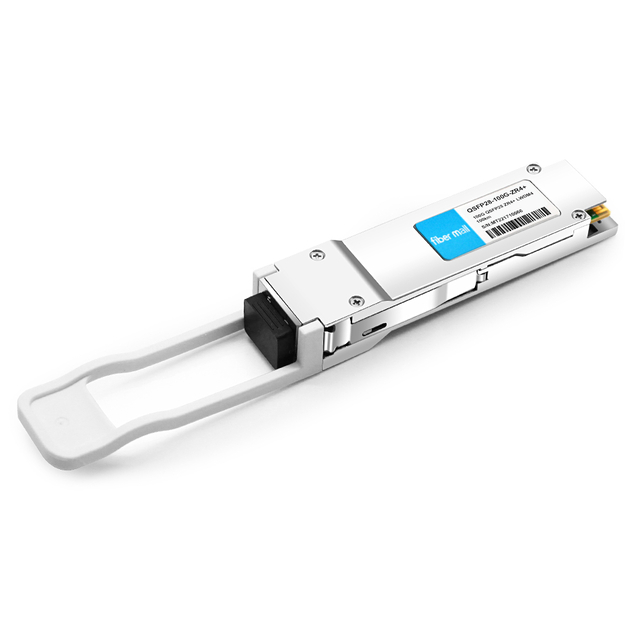

100G ZR4+ optical module provides up to 103.12Gbps data rate using QSFP28 footprint at the wavelengths of LWDM, which is designed with digital diagnostic monitoring. Compared to the 100G QSFP28 ZR4 module, this optics features up to 100km transmission distance over single-mode fiber with LC ports. It is compatible with the IEEE 802.3bm, ITU-T G.959, SFF-8636, and SFF-8679 specifications for 100GBASE-ZR4+ applications. The hot-pluggable transceiver supports the Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS.
| FiberMall P/N | QSFP28-100G-ZR4+ | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 103.12Gbps |
| Wavelength | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm | Max Distance | 100km |
| Connector | Duplex LC | Transmitter Type | LAN WDM Laser |
| Cable Type | SMF | Receiver Type | PIN with SOA |
| TX Power | +4.0~+8.0dBm | Receiver Sensitivity | < -30dBm |
| Protocols | QSFP28 MSA, IEEE 802.3bm, ITU-T G.959, SFF-8636 and SFF-8679 | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
FiberMall P/N
|
QSFP28-100G-ZR4+
|
-
|
-
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP28
|
QSFP28
|
QSFP28
|
|
Max Data Rate
|
103.12Gbps
|
103.125Gbps
|
103.1Gbps
|
|
Wavelength
|
1295.56nm, 1300.05nm,
1304.58nm, 1309.14nm |
1295.56nm, 1300.05nm
1304.58nm, 1309.14nm |
1295.56nm, 1300.05nm
1304.58nm, 1309.14nm |
|
Max Distance
|
100km
|
80km
|
30km without FEC
40km with FEC |
|
Connector
|
Duplex LC
|
Duplex LC
|
Duplex LC
|
|
Transmitter Type
|
LAN WDM Laser
|
EML
|
LAN WDM EML
|
|
Cable Type
|
SMF
|
SMF
|
SMF
|
|
Receiver Type
|
PIN with SOA
|
SOA + PIN
|
APD
|
|
TX Power
|
+4.0~+8.0dBm
|
+2.0~+6.5dBm
|
-2.9~+4.5dBm
|
|
Receiver Sensitivity
|
< -30dBm
|
< -28dBm
|
<-16.9dBm without FEC
<-20.9dBm with FEC |
|
Protocols
|
QSFP28 MSA, IEEE 802.3bm, ITU-T G.959, SFF-8636 and SFF-8679
|
100G Ethernet, QSFP28 MSA Compliant
|
100G Ethernet, MSA Compliant
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
Product Features
v Supports 100GBASE 100GE
v Lane bit rate 25.78 Gb/s 100GE
v Up to 100km transmission on SMF;
v LAN WDM laser and PIN receiver with SOA;
v Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
v High speed I/O electrical interface (CAUI-4);
v Single +3.3V power supply;
v Typical power consumption 6.5 W;
v Compliant with SFF-8636 and SFF-8679, IEEE 802.3bm and ITU-T G.959 and EU Directive 2015/863/EU
