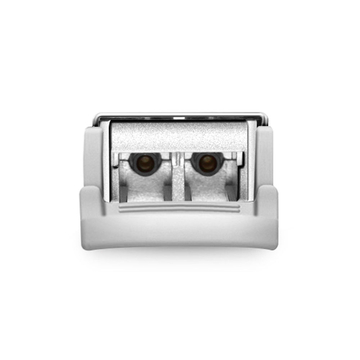

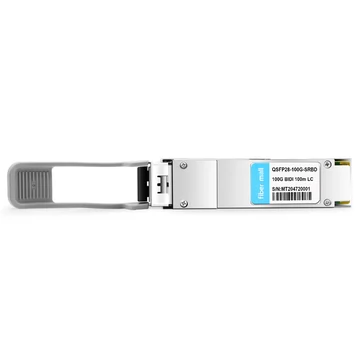

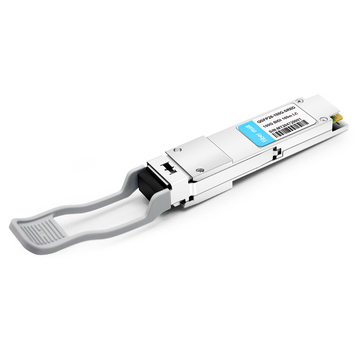

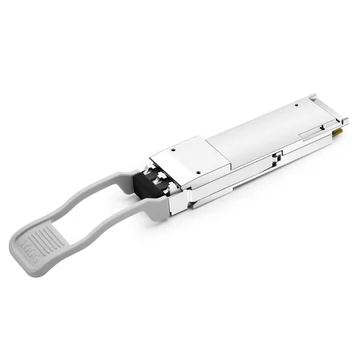

| Juniper Compatible | JNP-QSFP-100G-BXSR | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 40Gbps/100Gbps |
| Wavelength | 850nm & 900nm | Max Distance | 100m |
| Connector | Duplex LC | Transmitter Type | 850/900nm VCSEL |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -6.0~+4.0dBm | Receiver Sensitivity | <-8.0dBm |
| Chip Manufacturers | Broadcom | Modulation Format | PAM4 |
| Protocols | 100G Ethernet, QSFP28 MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
Juniper Networks Compatible
|
JNP-QSFP-100G-SR4
|
-
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP28
|
QSFP28
|
|
Max Data Rate
|
103.1Gbps
|
40Gbps/100Gbps
|
|
Wavelength
|
850nm
|
850nm & 900nm
|
|
Max Distance
|
100m on OM4
|
100m
|
|
Connector
|
MTP/MPO-12
|
Duplex LC
|
|
Transmitter Type
|
850nm VCSEL
|
850/900nm VCSEL
|
|
Cable Type
|
MMF
|
MMF
|
|
Receiver Type
|
PIN
|
PIN
|
|
TX Power
|
-8.4~+2.4dBm
|
-6.0~+4.0dBm
|
|
Receiver Sensitivity
|
< -10.3dBm
|
<-8.0dBm
|
|
Protocols
|
100G Ethernet, MSA Compliant
|
100G Ethernet, QSFP28 MSA Compliant
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
Product Features
v Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm
v Compliant to QSFP28 SFF-8636 Specification
v Dual-wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850nm/900 nm
v QSFP28 MSA compliant
v Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
v Single +3.3V power supply operating
v RoHS Compliant Part
v Supports 100 Gigabit Ethernet interconnects, Datacom/Telecom switch & router connections, Data aggregation and backplane applications, and Proprietary protocol and density applications
