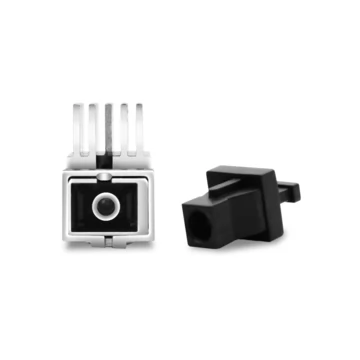

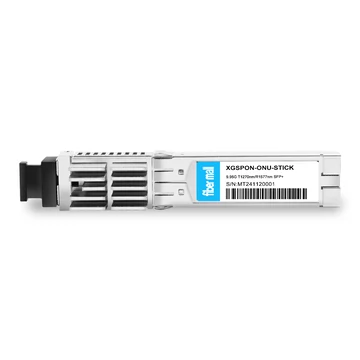

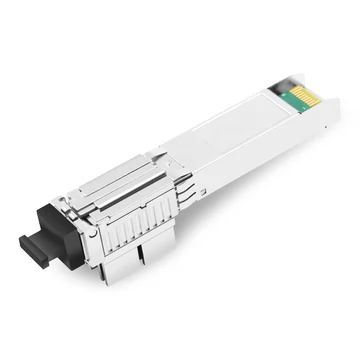

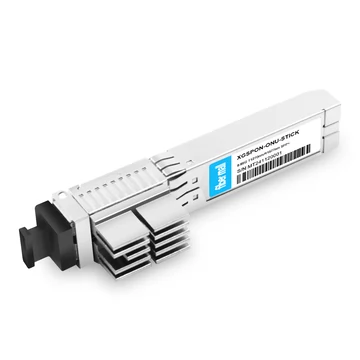

9.953G-TX/9.953G-RX XGSPON ONU Stick with MAC Class N1/N2 Transceiver Chipset: MaxLinear PRX126 (SMF, 1270nm-TX/1577nm-RX, 20km, SC/APC, DDM)
The XGSPON ONU stick with MAC module is designed for 10G passive optical network systems. The STICK optical module can fully meet the requirements of the carrier-grade FTTB\ FTTH\ FTTO device. It can be hot-swapped into the SFP+ slot of the Layer 2 Ethernet switch. The whole machine can be used as an ONT or even an MDU so that the entire device can be directly connected to the XGSPON optical network; the central office OLT only needs to register the XGSPON ONU STICK optical module as if it were a typical optical CAT. The communication device can complete the access switch from the original P2P.
| FiberMall P/N | XGSPON-ONU-STICK | Vendor Name | FiberMall |
| Application | XGSPON ONU | ODN Class | N1/N2 |
| Wavelength | TX 1270nm/RX 1577nm | Data Rate | TX 9.95G/RX 9.95G |
| TX Power | +4.0~+9.0dBm | Receiver Sensitivity | < -28.5dBm |
| Package | SFP+ | Interface | SC/APC |
| Cable Type | SMF | Max Distance | 20km |
| Operation Temperature | -20°C~85℃ | Protocols | ITU-T G.9807, SFP+ MSA |
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system. |
|
FiberMall P/N
|
XGSPON-ONU-STICK
|
XGSPON-ONU-C
|
GPON-ONU-STB+
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
FiberMall
|
|
Application
|
XGSPON ONU
|
XGSPON ONU
|
-
|
|
ODN Class
|
N1/N2
|
N1/N2
|
-
|
|
Wavelength
|
TX 1270nm/RX 1577nm
|
TX 1270nm/RX 1577nm
|
TX-1310nm/RX-1490nm
|
|
Data Rate
|
TX 9.95G/RX 9.95G
|
TX 9.95G/RX 9.95G
|
-
|
|
TX Power
|
+4.0~+9.0dBm
|
+4.0~+9.0dBm
|
+0.5~+5.0dBm
|
|
Receiver Sensitivity
|
< -28.5dBm
|
< -28.0dBm
|
< -28.0dBm
|
|
Package
|
SFP+
|
SFP+
|
-
|
|
Interface
|
SC/APC
|
SC
|
-
|
|
Cable Type
|
SMF
|
SMF
|
SMF
|
|
Max Distance
|
20km
|
20km
|
20km
|
|
Operation Temperature
|
-20°C~85℃
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
|
Protocols
|
ITU-T G.9807, SFP+ MSA
|
ITU-T G.9807, SFP+ MSA
|
MSA and IEEE 802.3
|
Q: What is the chipset used in this ONU? By M***d on 2024-10-11
A: MaxLinear PRX126By Fiber Mall on 2024-10-12
