NVIDIA MFP7E20-N007 8 Fibers OM3 MM LSZH MPO Cable 7M | FiberMall

Add to wish

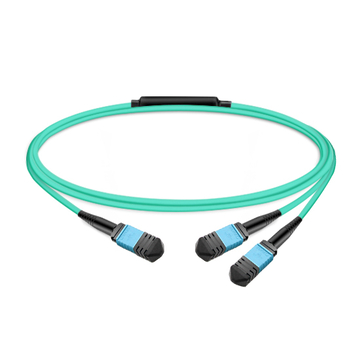

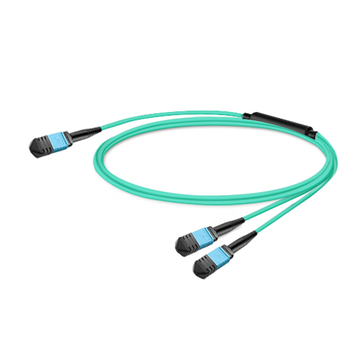

NVIDIA MFP7E20-N007 Compatible 7m (23ft) 8 Fibers Low Insertion Loss Female to Female MPO12 to 2xMPO12 Polarity B APC to APC LSZH Multimode OM3 50/125

Name: NVIDIA MFP7E20-N007 Compatible 7m (23ft) 8 Fibers Low Insertion Loss Female to Female MPO12 to 2xMPO12 Polarity B APC to APC LSZH Multimode OM3 50/125
Brand: fibermall
SKU: 50760
Price: 57.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:50760

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible Brands: NVIDIA

Length: 3m; 5m; 7m; 10m; 15m; 20m; 30m

FM PN:

MPO8YFLOM3BA07

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

NVIDIA MFP7E20-N007 Compatible 8 Fibers OM3 Multimode MPO Y Splitter Cables 7m (MPO to 2xMPO12 Cable)

Product Details

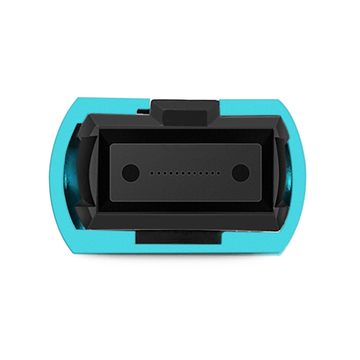

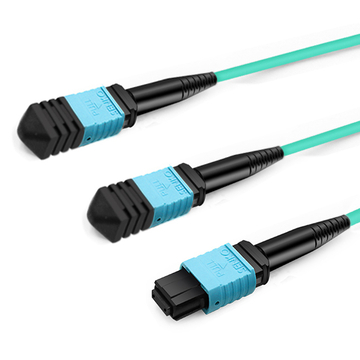

Connector A	MPO12 Female	Connector B	2xMPO12 Female
Fiber Type	OM3 50/125μm Multimode	Wavelength	850/1300nm
Fiber Count	8 Fibers	Distance	7m (23ft)
Glass Fiber	Corning ClearCurve®	Cable Jacket	LSZH
Polish Type	APC to APC	Minimum Bend Radius	7.5mm
Insertion Loss	0.35dB Max (0.15dB Typ.)	Return Loss	≥35dB
Attenuation at 850nm	≤2.3 dB/km	Attenuation at 1300nm	≤0.6 dB/km
Cable Diameter	3.0mm	Fiber Color	Aqua
Installation Tensile Load	66 N	Long-Term Tensile Load	50 N
Operating Temperature	-10°C to +70°C	Storage Temperature	-40°C to +85°C

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. FiberMall adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: 3D Interferometer Test

: End-Face Inspection

: Insertion Loss and Return Loss Testing

Specifications

Connectors

Fiber Count

8 fibers

MPO-LC Harness Cables

12 fibers

MPO Trunk Cables / MPO-LC Harness Cables

24 fibers

MPO Trunk Cables

Fiber Type

: OM3 50/125 MMF; Corning ClearCurve Multimode Fiber

: OM4 50/125 MMF; Corning ClearCurve Multimode Fiber

: OS2 9/125 SMF; Corning SMF-28 Ultra Optical Fiber

Gender Type

: MPO Male With Pins

: MPO Female Without Pins

Polarity Type

Packaging & Labeling

: Single Package

: Small Quantity Package

: Bulk quantity package

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Datasheet


MPO MTP.pdf
