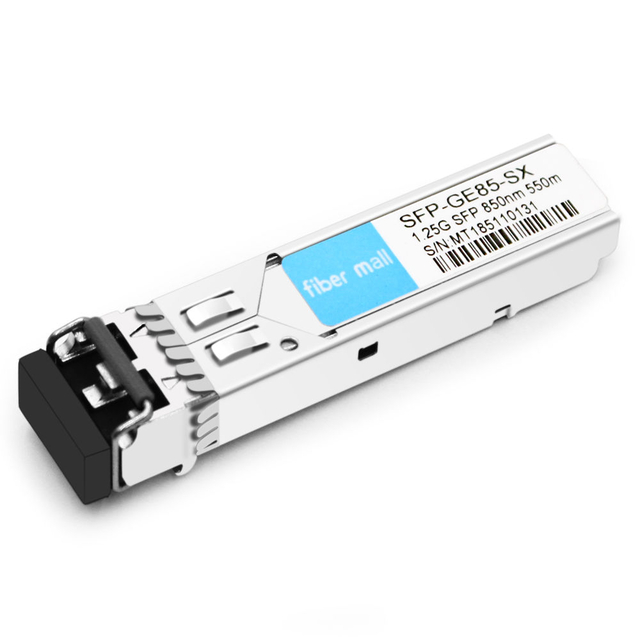

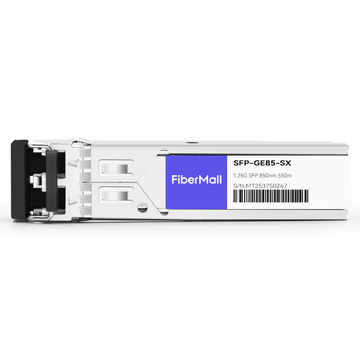

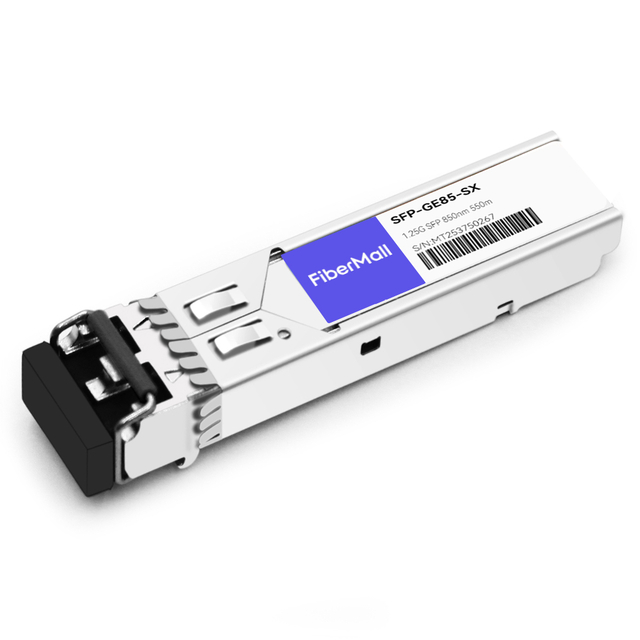

| Cisco Meraki Compatible | MA-SFP-1GB-SX | Vendor Name | FiberMall |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 850nm | Max Distance | 550m over OM2 MMF |
| Connector | Duplex LC | Transmitter Type | 850nm VCSEL |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -9.0~0dBm | Receiver Sensitivity | < -18.0dBm |
| Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports up to 10.7Gbps bit rates
v Single +3.3V power supply
v 1310nm FP laser and PIN photo detector, Up to 10km for SMF transmission
v Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
v Compatible with RoHS
v Real-Time Digital Diagnostic Monitoring
v 1.25Gbps Optical systems
v 10GBASE-LW at 9.953Gbps
v 1.063Gbps Fiber Channel
