Aruba SFP-SX Compatible 1000Base SX SFP Transceiver | FiberMall

17%

OFF

Aruba SFP-SX Compatible 1000Base SFP SX 850nm 550m LC MMF DDM Transceiver Module

Add to wish

17%

OFF

Aruba SFP-SX Compatible 1000Base SFP SX 850nm 550m LC MMF DDM Transceiver Module

Name: Aruba SFP-SX Compatible 1000Base SFP SX 850nm 550m LC MMF DDM Transceiver Module
Brand: fibermall
SKU: 11938
Price: 5.00 usd
Availability: OutOfStock
Rating: 5 (5 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:11938

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Alcatel-Lucent; Allied Telesis; Arista Networks; Aruba; Avaya; Brocade; Ciena; Cisco (Meraki); D-link; DELL; Extreme; F5 Networks; Force10; H3C; HPE (Aruba); HPE (BladeSystem); HPE (H3C); HPE (Procurve); Huawei; IBM; Juniper Networks; MikroTik; Netgear; Nortel; Palo Alto Networks; Ruijie; SMC; TRENDnet; Ubiquiti; ZTE

Transceiver Type: SFP-LX; SFP-SX; SFP-TX; SFP-ZX

FM PN:

SFP-GE85-SX

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

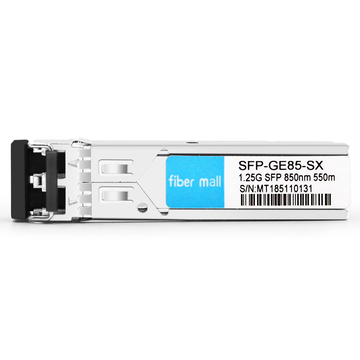

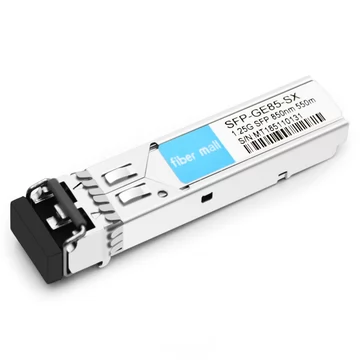

Aruba SFP-SX Compatible 1000Base SFP SX Transceiver Module (850nm MMF 550m LC DDM)

The 1000Base SFP SX transceivers are high-performance, cost-effective modules supporting a data rate of 1.25Gbps and 550m transmission distance and support up to 550m link lengths over LC duplex MMF fiber. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface cards (NICs), etc.

Product Details

Aruba Compatible	SFP-SX	Vendor Name	FiberMall
Form Factor	SFP	Max Data Rate	1.25Gbps
Wavelength	850nm	Max Distance	550m over OM2 MMF
Connector	Duplex LC	Transmitter Type	850nm VCSEL
Cable Type	MMF	Receiver Type	PIN
TX Power	-9.0~0dBm	Receiver Sensitivity	< -18.0dBm
Protocols	SFF-8472 MSA Compliant, IEEE 802.3ah-2004	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

1000Base SFP SX

Product Features

v Supports up to 10.7Gbps bit rates

v Single +3.3V power supply

v 1310nm FP laser and PIN photo detector, Up to 10km for SMF transmission

v Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

v Compatible with RoHS

v Real-Time Digital Diagnostic Monitoring

v 1.25Gbps Optical systems

v 10GBASE-LW at 9.953Gbps

v 1.063Gbps Fiber Channel
