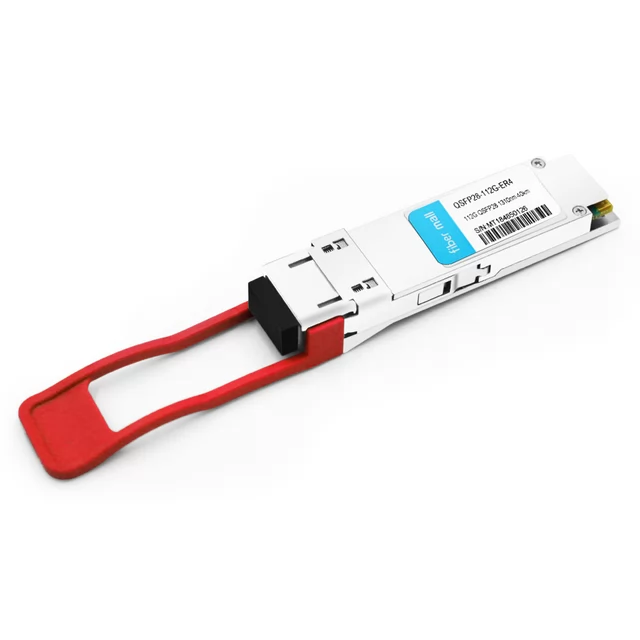

112G OTU4 QSFP28 ER4 Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with IEEE 802.3ba 100GBASE-ER4 and OTU4 4I1-9D1F standards.
| Juniper Compatible | 100GBASE-ER4-D40 | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 111.8Gbps |
| Wavelength | 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm | Max Distance | 40km |
| Connector | Duplex LC | Transmitter Type | LAN WDM EML |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | -2.9~+6.5dBm | Receiver Sensitivity | <-20.5dBm |
| Protocols | OTU4, 128G FC and MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports 100GBASE (103.1Gb/s) and OTU4 (111.8Gb/s) aggregate
v Lane bit rate 25.78 Gb/s 100GE, 27.95Gb/s OTU4
v Up to 40km transmission on SMF
v LAN WDM EML laser and APD receiver
v High speed I/O electrical interface (CAUI-4)
v QSFP28 MSA package with duplex LC connector
v Single +3.3V power supply
v Maximum power consumption 5 W
v Compliant to SFF-8665 and SFF-8679, EU Directive 2011/65/EU (RoHS 6/6)
