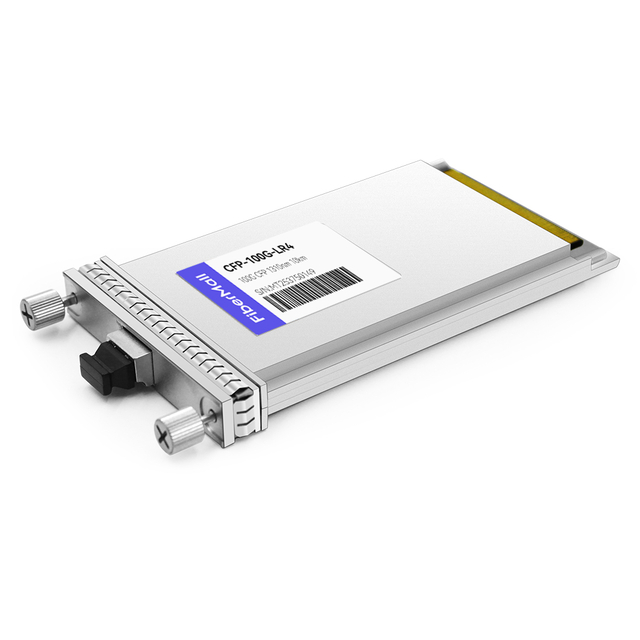

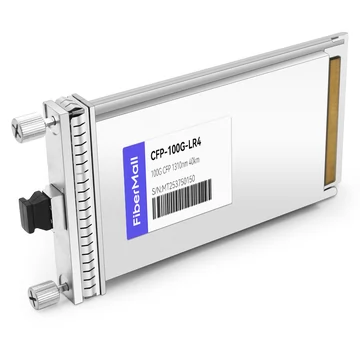

Juniper CFP-GEN2-100GBASE-LR4 Compatible 100G CFP LR4 module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652). 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. It is designed for 4x25G OTN client interfaces and 100G Ethernet links over single-mode fiber. It conforms to CFP MSA, IEEE 802.3ba 100GBASE-LR4, and OTU4 4I1-9D1F, and supports digital diagnostics through the MDIO interface.
| Juniper Compatible | CFP-GEN2-100GBASE-LR4 | Vendor Name | FiberMall |
| Form Factor | CFP | Max Data Rate | 103.1Gbps |
| Wavelength | 1310nm | Max Distance | 10km |
| Connector | LC | Transmitter Type | CWDM DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -4.3~+4.5dBm | Receiver Sensitivity | <-10.6dBm |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
