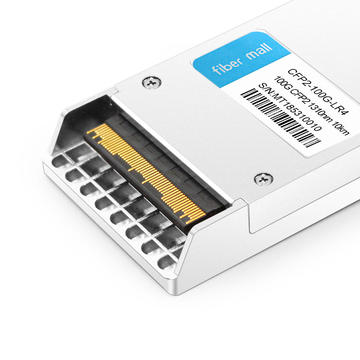

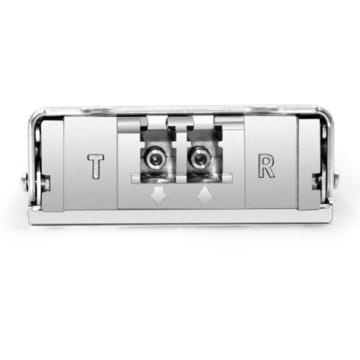

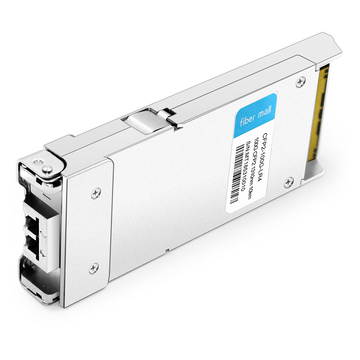

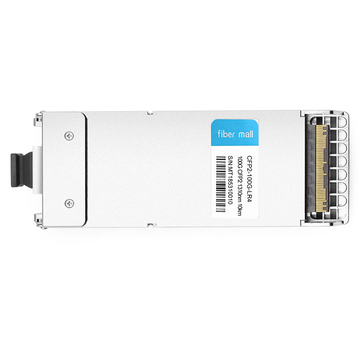

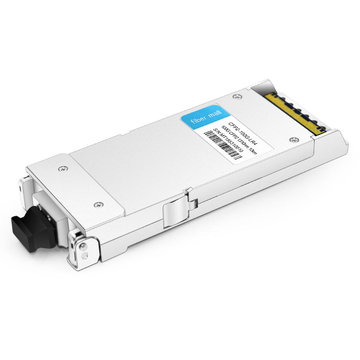

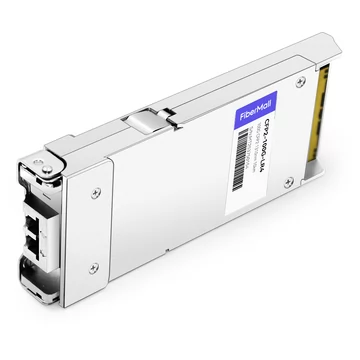

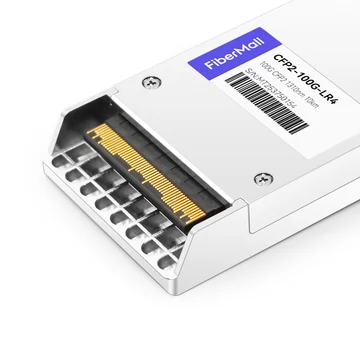

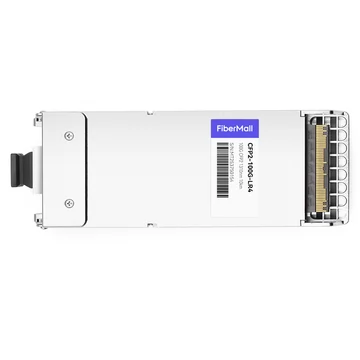

Juniper CFP2-100GBASE-LR4 Compatible CFP2 100GEBASE-LR4 optical transceiver is a hot-pluggable 100Gbps small-form-factor transceiver module. It is compliant with IEEE802.3ba and CFP MSA. It supports 100GBase-LR4 transmission up to 10km over single-mode fiber (SMF) and operates at a wavelength of 1310nm using an LC connector. The module is a multi-rate optical transceiver and is intended to support Telecom and Datacom applications.
| Juniper Compatible | CFP2-100GBASE-LR4 | Vendor Name | FiberMall |
| Form Factor | CFP2 | Max Data Rate | 103.1Gbps |
| Wavelength | 1310nm | Max Distance | 10km |
| Connector | LC | Transmitter Type | CWDM DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -4.3~+4.5dBm | Receiver Sensitivity | < -10.6dBm |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
