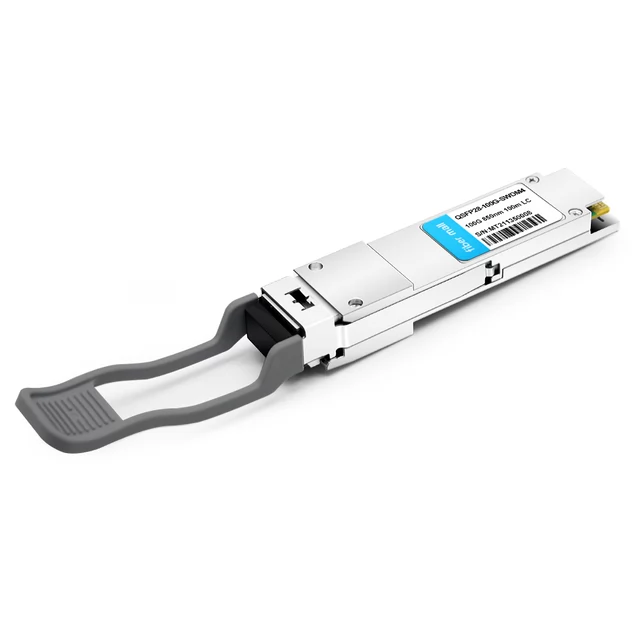

Dell Q28-100G-SWDM4 Compatible 100G QSFP28 SWDM4 | FiberMall

Add to wish

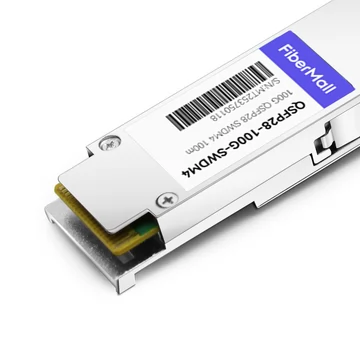

Dell Q28-100G-SWDM4 Compatible 100G QSFP28 SWDM4 850nm-940nm 100m LC MMF DDM Optical Transceiver

Name: Dell Q28-100G-SWDM4 Compatible 100G QSFP28 SWDM4 850nm-940nm 100m LC MMF DDM Optical Transceiver
Brand: fibermall
SKU: 18777
Price: 300.00 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18777

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall; Arista Networks; DELL; H3C; HPE (H3C）; Huawei

Transceiver Type: Q28-100G-ESR4; Q28-100G-SR4; Q28-100G-CWDM4; Q28-100G-PSM4-IR; Q28-100G-4WDM-10; Q28-100G-FR; Q28-100G-SR1.2; Q28-100G-LR4; Q28-100G-SWDM4; Q28-100G-BIDI; Q28-100G-BIDI-ON; Q28-100G23-BX10-DE; Q28-100G32-BX10-DE; Q28-100G23-BX20-DE; Q28-100G32-BX20-DE; Q28-100G-ER4-lite; Q28-100G49-BX40-DE; Q28-100G94-BX40-DE; Q28-100G23W-BX40; Q28-100G32W-BX40

Transmission Mode: Regular

FM PN:

QSFP28-100G-SWDM4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Dell Q28-100G-SWDM4 Compatible 100G QSFP28 SWDM4 Optical Transceiver (850nm, 880nm, 910nm, 940nm MMF 100m LC DDM)

The 100G QSFP28 SWDM4 optical transceiver module is designed for 100-Gigabit Ethernet links up to 100m over a multimode. It complies with QSFP28 MSA, IEEE802.3cm-2020, and CAUI-4 (no FEC)1. The module contains 4 channels of 25Gbps VCSEL and PIN photodetectors, transmitting and receiving over a simplex LC fiber using SWDM4 optics.

Product Details

Dell Compatible	Q28-100G-SWDM4	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	103.1Gb/s
Wavelength	850nm, 880nm, 910nm, 940nm	Max Distance	100m
Connector	Duplex LC	Transmitter Type	850mm VCSEL
Cable Type	MMF	Receiver Type	PIN
TX Power	-7.1~+4.2dBm	Receiver Sensitivity	<-9.4dBm
Protocols	100G Ethernet, QSFP28 MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v QSFP28 MSA compliant

v Supports 103.1Gb/s aggregate bit rate

v 100G-SWDM4 Specification compliant

v Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)

v Data rate up to 25.78125Gbps per channel

v Maximum power consumption 3.5W

v RoHS compliant

v Supports Data Center Interconnect, 100G Ethernet, and Enterprise networking.

v 4x25G CAUI-4 electrical interface
