HPE Aruba JL743A Compatible 100G-ER4 QSFP28 Optics | FiberMall

Add to wish

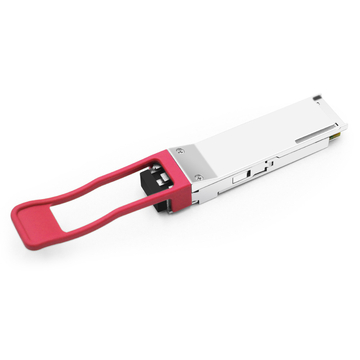

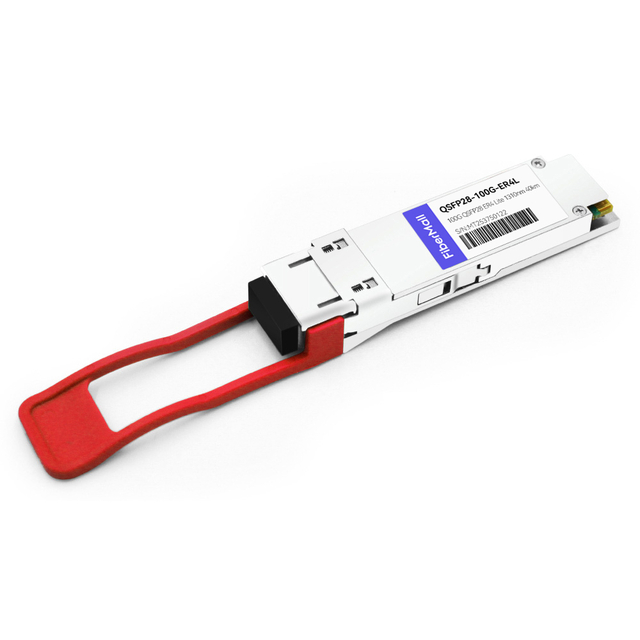

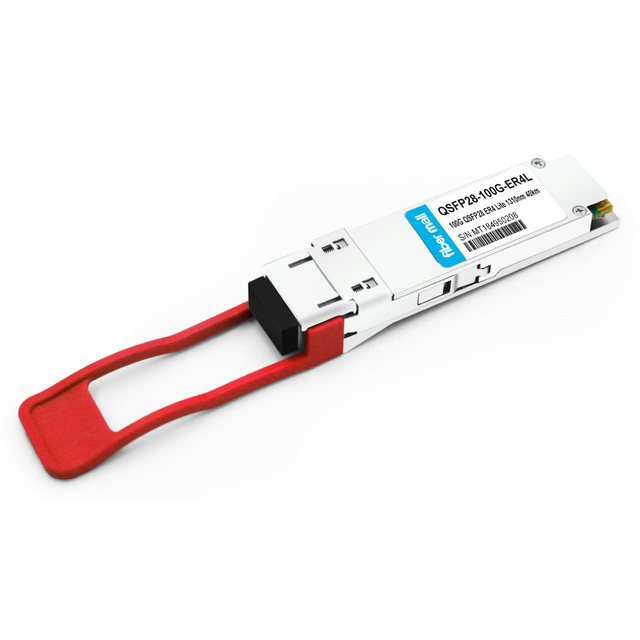

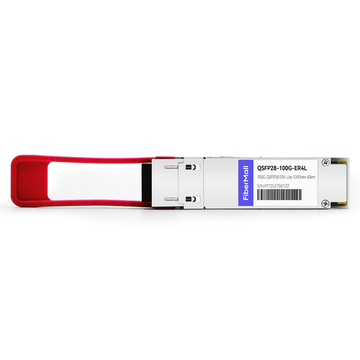

HPE Aruba JL743A Compatible 100G QSFP28 ER4 Lite 1310nm (LAN WDM) 40km with FEC, 30km without FEC LC SMF DDM Transceiver Module

Name: HPE Aruba JL743A Compatible 100G QSFP28 ER4 Lite 1310nm (LAN WDM) 40km with FEC, 30km without FEC LC SMF DDM Transceiver Module
Brand: fibermall
SKU: 18737
Price: 800.00 USD
Availability: OutOfStock
Rating: 4.8 (13 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18737

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Brocade; Ciena; DELL; EdgeCore; HPE (Aruba); Huawei; Juniper Networks; Ruijie Networks

Transceiver Type: JL309A; R0Z30A; JL310A; JL743A

Transmission Mode: Regular

FM PN:

QSFP28-100G-ER4L

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

HPE Aruba JL743A Compatible 100G-ER4 QSFP28 Optical Transceiver Module Use for Enterprise Core and Data Center(1310nm, without FEC, LC, DDM, SMF)

This product is a 100Gb/s transceiver module designed for optical communication applications compliant with Ethernet 100GBASE-ER4 Lite standard. The module converts input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. The high-performance cooled LAN WDM EA-DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 30km links without FEC and 40km links with FEC.

Product Details

HPE Aruba Compatible	JL743A	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1295.56nm, 1300.05nm 1304.58nm, 1309.14nm	Max Distance	30km without FEC 40km with FEC
Connector	Duplex LC	Transmitter Type	LAN WDM EML
Cable Type	SMF	Receiver Type	APD
TX Power	-2.9~+4.5dBm	Receiver Sensitivity	<-16.9dBm without FEC <-20.9dBm with FEC
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

100G QSFP28 ER4

Product Features

v Hot pluggable QSFP28 MSA form factor

v Compliant to Ethernet 100GBASE-ER4 Lite

v Supports 103.1Gb/s aggregate bit rate

v Up to 30km reach for G.652 SMF without FEC, Up to 40km reach for G.652 SMF with FEC

v Single +3.3V power supply

v Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

v Receiver: 4x25Gb/s APD ROSA

v 4x25G electrical interface (OIF CEI-28G-VSR)

v Maximum power consumption 4.5W

v RoHS-6 compliant

v Supports 100GBASE-ER4 Ethernet Links, Infiniband QDR and DDR interconnects, Client-side 100G Telecom connections
