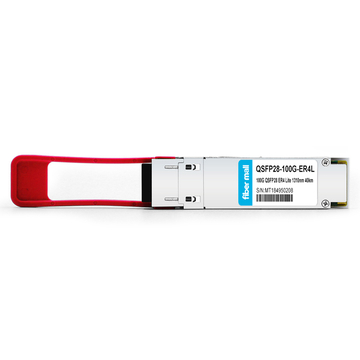

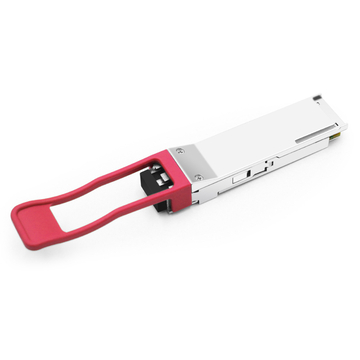

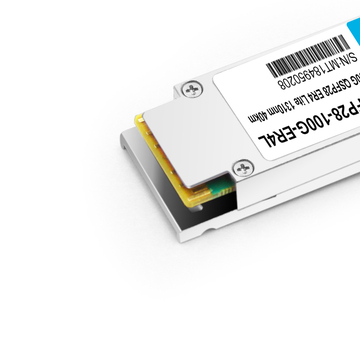

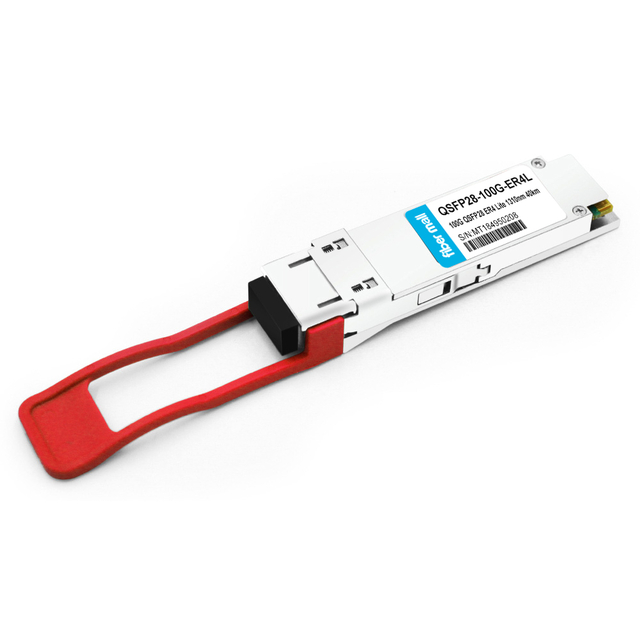

Brocade 100G-QSFP28-ER4-40KM Compatible 100G QSFP28 ER4 Lite Transceiver Module (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm SMF 40km with FEC, 30km without FEC LC DDM)

This product is a 100Gb/s transceiver module designed for optical communication applications compliant with Ethernet 100GBASE-ER4 Lite standard. The module converts input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. The high-performance cooled LAN WDM EA-DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 30km links without FEC and 40km links with FEC.

Product Details

Brocade Compatible	100G-QSFP28-ER4-40KM	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1295.56nm, 1300.05nm 1304.58nm, 1309.14nm	Max Distance	30km without FEC 40km with FEC

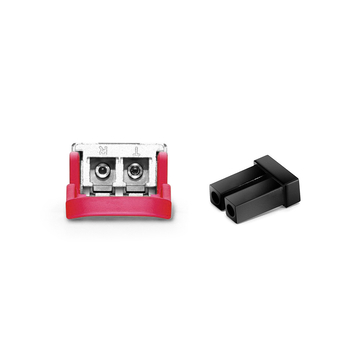

Connector	Duplex LC	Transmitter Type	LAN WDM EML
Cable Type	SMF	Receiver Type	APD
TX Power	-2.9~+4.5dBm	Receiver Sensitivity	<-16.9dBm without FEC <-20.9dBm with FEC
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

: Temperature Impact; High and low-temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: EMI Testing; Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF(Mean Time Between Failures)testing ensures high stability

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

ARISTA 7060SX2-48YC6

H3C S6850-56HF

Cisco N9K-C92160YC-X

HP JG510A

Juniper QFX5110-48S-AFO

Mellanox SN4700

Cisco-N9K-C93600CD-GX

NVIDIA QM9790

Ruijie RG-S6990-128QC2XS

100G QSFP28 ER4

Product Features

v Hot pluggable QSFP28 MSA form factor

v Compliant to Ethernet 100GBASE-ER4 Lite

v Supports 103.1Gb/s aggregate bit rate

v Up to 30km reach for G.652 SMF without FEC, Up to 40km reach for G.652 SMF with FEC

v Single +3.3V power supply

v Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

v Receiver: 4x25Gb/s APD ROSA

v 4x25G electrical interface (OIF CEI-28G-VSR)

v Maximum power consumption 4.5W

v RoHS-6 compliant

v Supports 100GBASE-ER4 Ethernet Links, Infiniband QDR and DDR interconnects, Client-side 100G Telecom connections
