{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

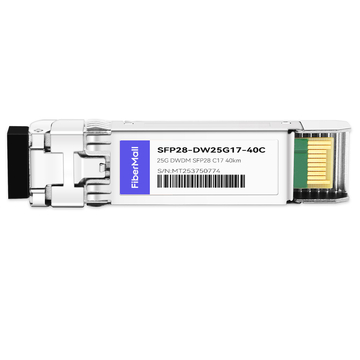

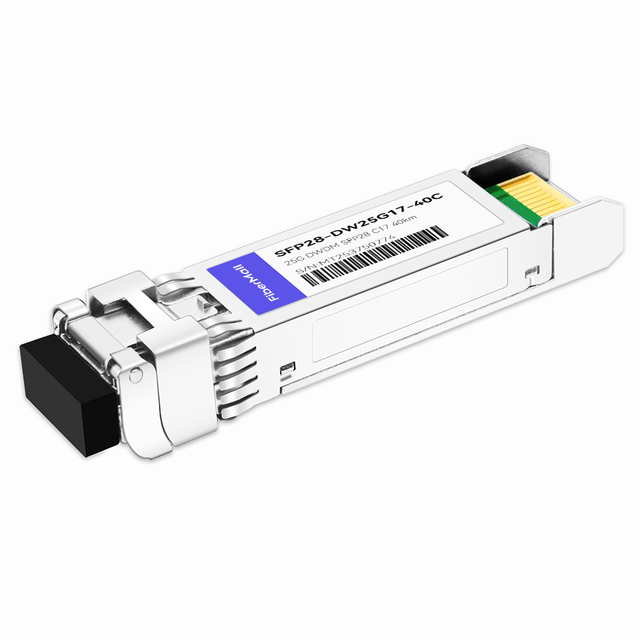

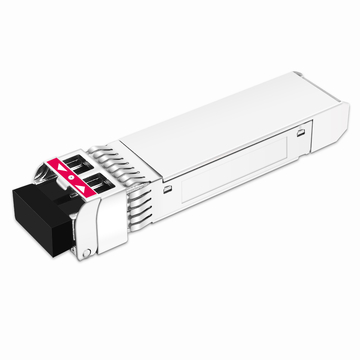

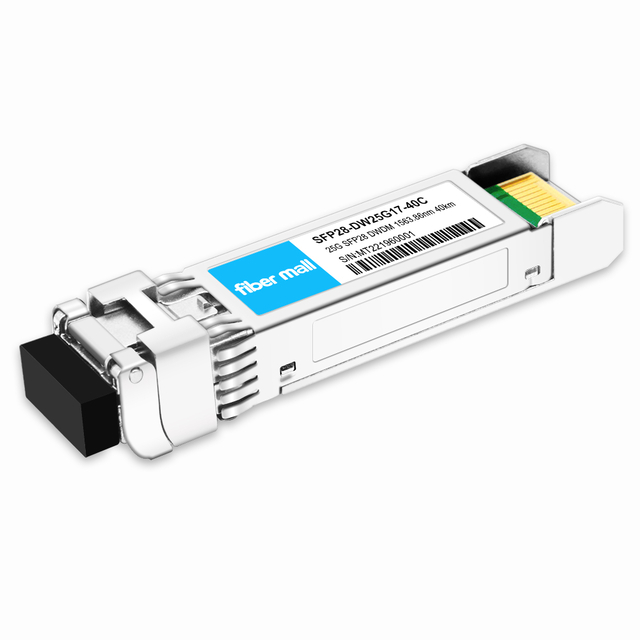

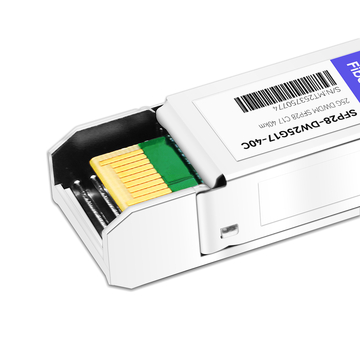

The 25G SFP28 DWDM transceiver is designed for 25-Gigabit Ethernet links up to 40km over single-mode fiber. The module consists of DWDM EML Laser, APD, and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. This module is designed for single-mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C-Band DWDM wavelength. The module optical connection is duplex LC and shall be compatible with SFP+ 28Gbps and backward compatible with legacy 10G SFP+ pluggable. A 2-wire interface is used for serial ID, digital diagnostics, and module control functions.
| FiberMall P/N | SFP28-DW25G17-40C | Vendor Name | FiberMall |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1563.86nm | Max Distance | 40km (with DCM and EDFA) |
| Connector | Duplex LC | Transmitter Type | DWDM EML |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | 0~+5.0dBm | Receiver Sensitivity | < -14.0dBm |
| Protocols | MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |

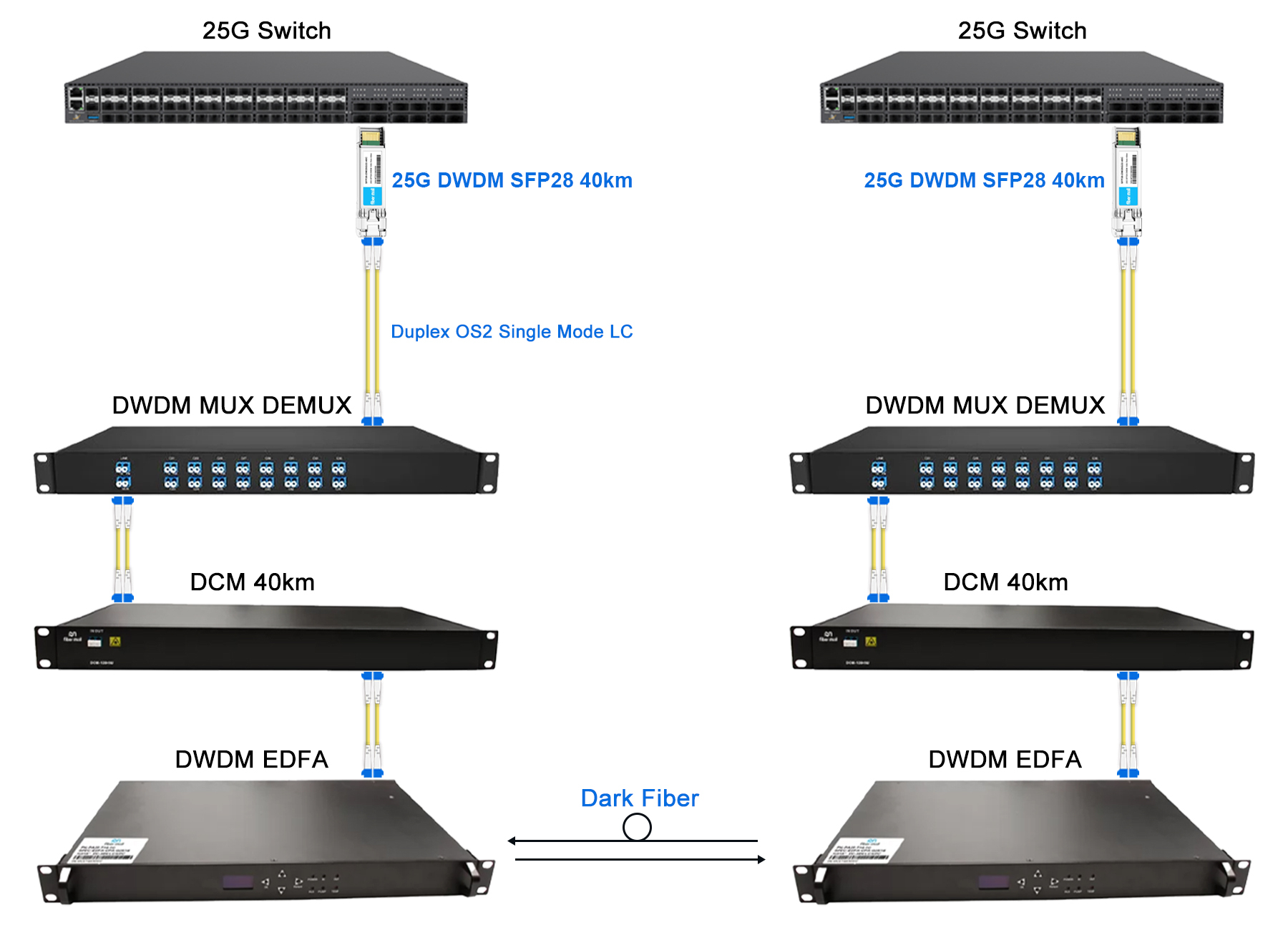

25G DWDM SFP28 solution suitable for 40km with EDFA, DCM, and DWDM MUX DEMUX.
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
FiberMall P/N
|
SFP28-DW25G17-40C
|
SFP28-DW25G17-20C
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
|
Form Factor
|
SFP28
|
SFP28
|
|
Max Data Rate
|
25.78Gbps
|
25.78Gbps
|
|
Wavelength
|
1563.86nm
|
1563.86nm
|
|
Max Distance
|
40km (with DCM and EDFA)
|
20km
|
|
Connector
|
Duplex LC
|
Duplex LC
|
|
Transmitter Type
|
DWDM EML
|
DWDM EML
|
|
Cable Type
|
SMF
|
SMF
|
|
Receiver Type
|
APD
|
APD
|
|
TX Power
|
0~+5.0dBm
|
0~+5.0dBm
|
|
Receiver Sensitivity
|
< -14.0dBm
|
< -14.0dBm
|
|
Protocols
|
MSA Compliant
|
MSA Compliant
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
Product Features
v Up to 25.78Gb/s data links
v DWDM EML transmitter and APD receiver
v 100 GHz ITU channel spacing with an integrated wavelength locker
v Up to 40km on 9/125um SMF
v Hot-pluggable SFP28 footprint
v Support Digital Monitoring interface
v Duplex LC/UPC type pluggable optical interface
v RoHS-10 compliant and lead-free
v With CDR function
v Single +3.3V power supply
v Compliant with SFF+MSA and SFF-8472
v Metal enclosure, for lower EMI
v Meet ESD requirements, resist 8KV direct contact voltage
v Application for High-speed storage area networks, Computer cluster cross-connect, Custom high-speed data pipes, Inter Rack Connection
