DCM 40km Passive Dispersion Compensation Module - FiberMall

Add to wish

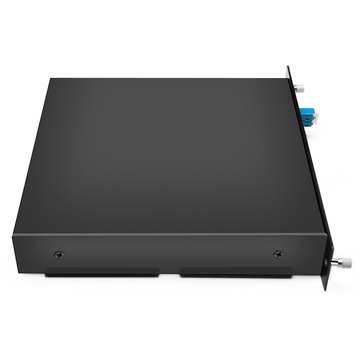

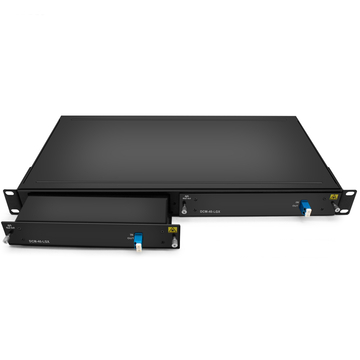

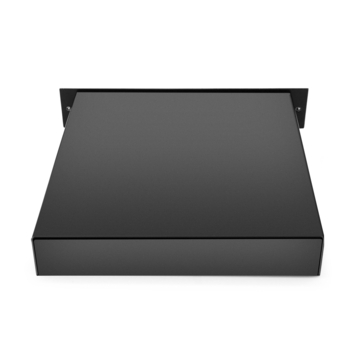

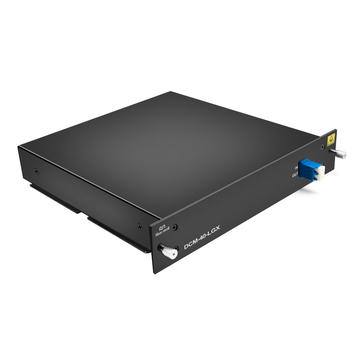

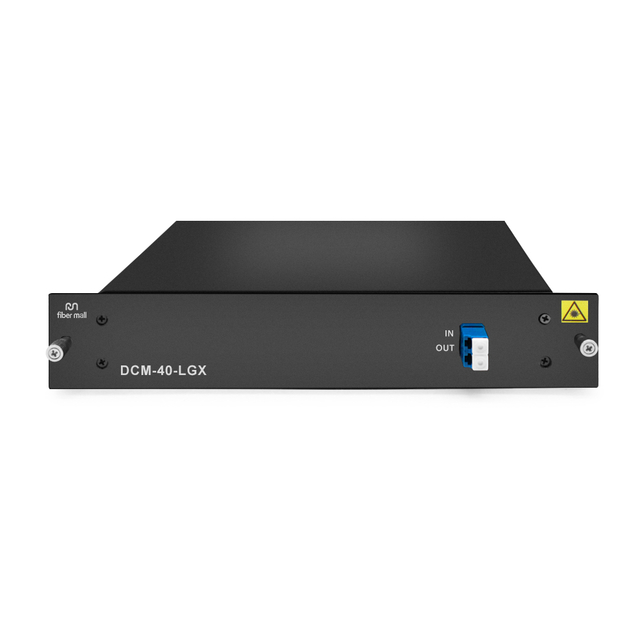

DCM 40km DCF-based Passive Dispersion Compensation Module, 5.2dB Low Loss, LC/UPC Connector

Name: DCM 40km DCF-based Passive Dispersion Compensation Module, 5.2dB Low Loss, LC/UPC Connector
Brand: fibermall
SKU: 40083
Price: 579.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:40083

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compensation Length: 40km

FM PN:

DCM-40-LGX

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Dispersion Optical Fiber Module Equivalent G.652 Compensation Distance 40km

Product Details

Compensation Distance	40km	Wavelength Range	C-Band (1525nm-1565nm)
Dispersion (ps/nm)	--680±20	Relative Dispersion Slope	0.004±20%(nm-1)
Insertion Loss	≤ 5.2dB	Polarization Mode Dispersion	≤ 1.0ps
Power Consumption	0W	Nominal Single-wave Input Optical Power	≤ 0dBm
Connector	LC/UPC	Occupied Slot Number	1 Slot
Working Temperature Range	-10 ℃～+60℃ (Typical)	Storage Temperature Range	-40℃～+85℃

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

FM-OTN Systems

Save Optical Fiber In Huge Bandwidth Need

: 40 channels system; Access capacity:80G

: 40 channels system; Access capacity:160G

: 40/48/80/96 channels system; Access capacity; 400G ➨ 960G➨ 4T➨ 9.6T

WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber

FiberMall FM-OTN System Includes the Following Two Parts

Customized Solutions, Self-help Selection of Our FM-OTN System Function Modules

OTN Platform

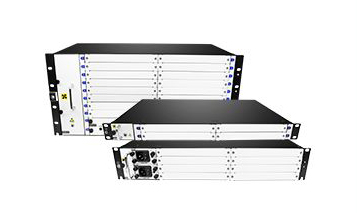

: 1 Main Chassis 1U/2U/5U

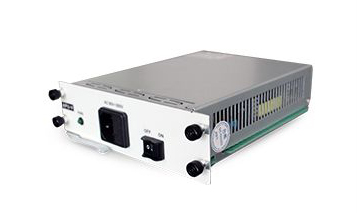

: 2 Power Supply Module

: 3 Network Management Unit

OTN Function Module

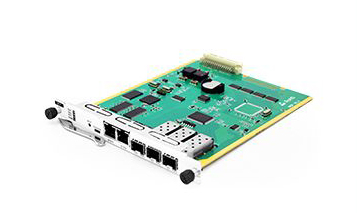

: Transponder (OEO)

: Amplifier Modules

: Dispersion Compensation

: Une Protection

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

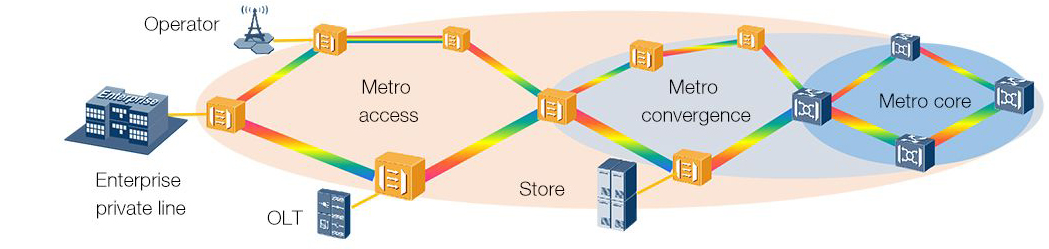

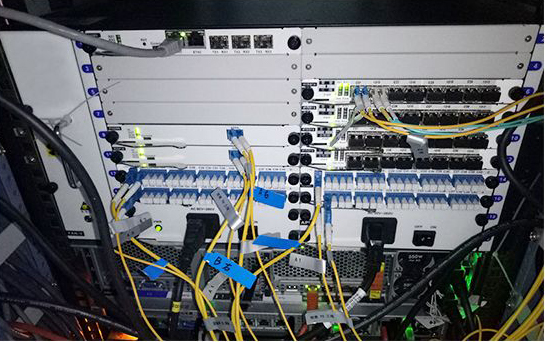

Practical Application Demonstration

As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.
