Q28-DW100G32-80C 100G DWDM QSFP28 PAM4 Single Wave C32 1551.72nm 100GHz LC 80km DDM Optical Transceiver Module

Name: Q28-DW100G32-80C 100G DWDM QSFP28 PAM4 Single Wave C32 1551.72nm 100GHz LC 80km DDM Optical Transceiver Module
Brand: fibermall
SKU: 18467
Price: 1900.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18467

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista; Dell; Huawei; Juniper

DWDM ITU Channel: C15; C16; C17; C18; C19; C20; C21; C22; C23; C24; C25; C26; C27; C28; C29; C30; C31; C32; C33; C34; C35; C36; C37; C38; C39; C40; C41; C42; C43; C44; C45; C46; C47; C48; C49; C50; C51; C52; C53; C54; C55; C56; C57; C58; C59; C60; C61

FM PN:

Q28-DW100G32-80C

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Available for back order. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

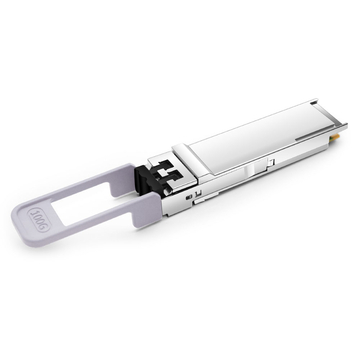

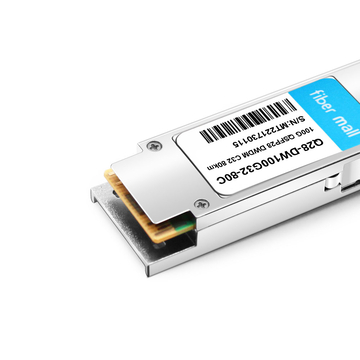

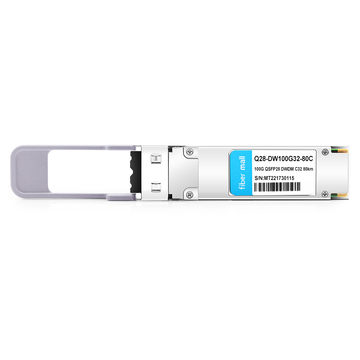

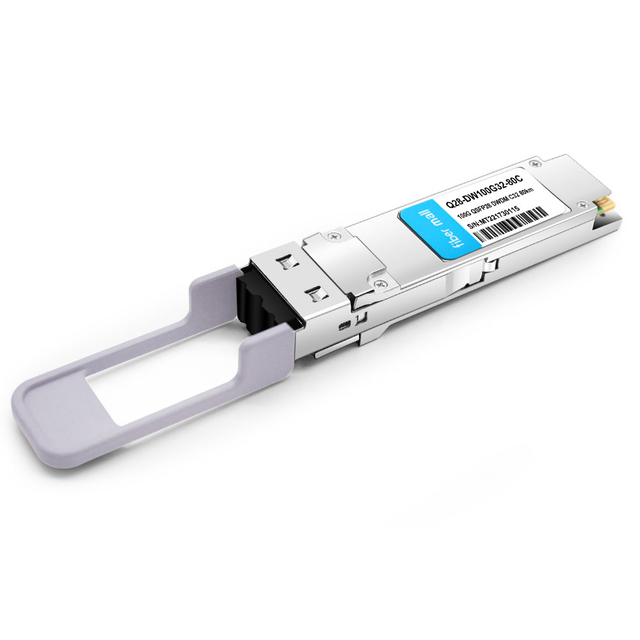

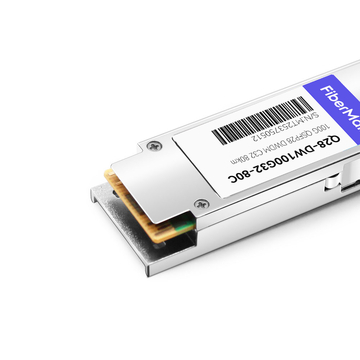

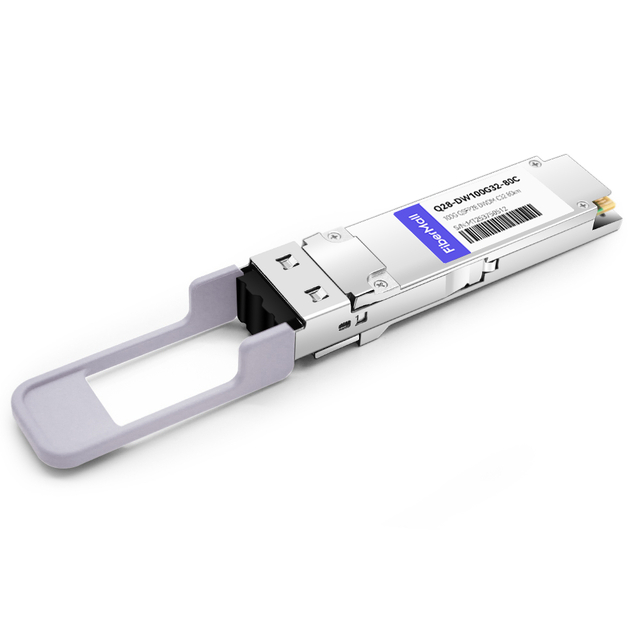

100G DWDM QSFP28 PAM4 C32 Optical Transceiver Module (1551.72nm LC SMF 80km DDM)

100G DWDM QSFP28 single wave transceiver module enables 80km optical transmission over single-mode fiber (SMF) with EDFA & DCM. It is available in all C-Band wavelengths on the 100GHz DWDM ITU Grid from 1528.77nm to 1565.50nm. The transceiver operates at a data rate of 100Gbps with PAM4 modulation format using duplex LC interfaces. It is compliant with the OIF CEI-28G-VSR, QSFP28 MSA and SFF-8636 Rev 2.10a standards for 100G amplified DWDM networks applications.

Product Details

FiberMall P/N	Q28-DW100G32-80C	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	100Gbps
Wavelength	1551.72nm	Max Distance	80km (With EDFA and DCM)
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
DDM Support	Yes	Modulation Format	PAM4
TX Power	-7.0~+4.0dBm	Receiver Sensitivity	< -11.0dBm
Protocols	QSFP28 MSA, OIF CEI-28G-VSR, SFF-8636 Rev 2.10a	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

100G DWDM QSFP28

Product Features

v Supports 100Gbps

v Available in all C-Band Wavelengths on the 100GHz DWDM ITU Grid

v 80km reach over SMF with EDFA&DCM (dispersion compensation modules)

v QSFP28 MSA Compliant

v SFF-8636 Rev 2.10a Compliant

v 4x25G Electrical Interface

v LC Duplex Connector

v Single 3.3V Power Supply

v Power Dissipation < 5.5W

v Commercial Case Temperature Range of 0°C to 70°C

v I2C Interface with Integrated Digital Diagnostic Monitoring

v Safety Certification: TUV/UL/FDA

v RoHS Compliant

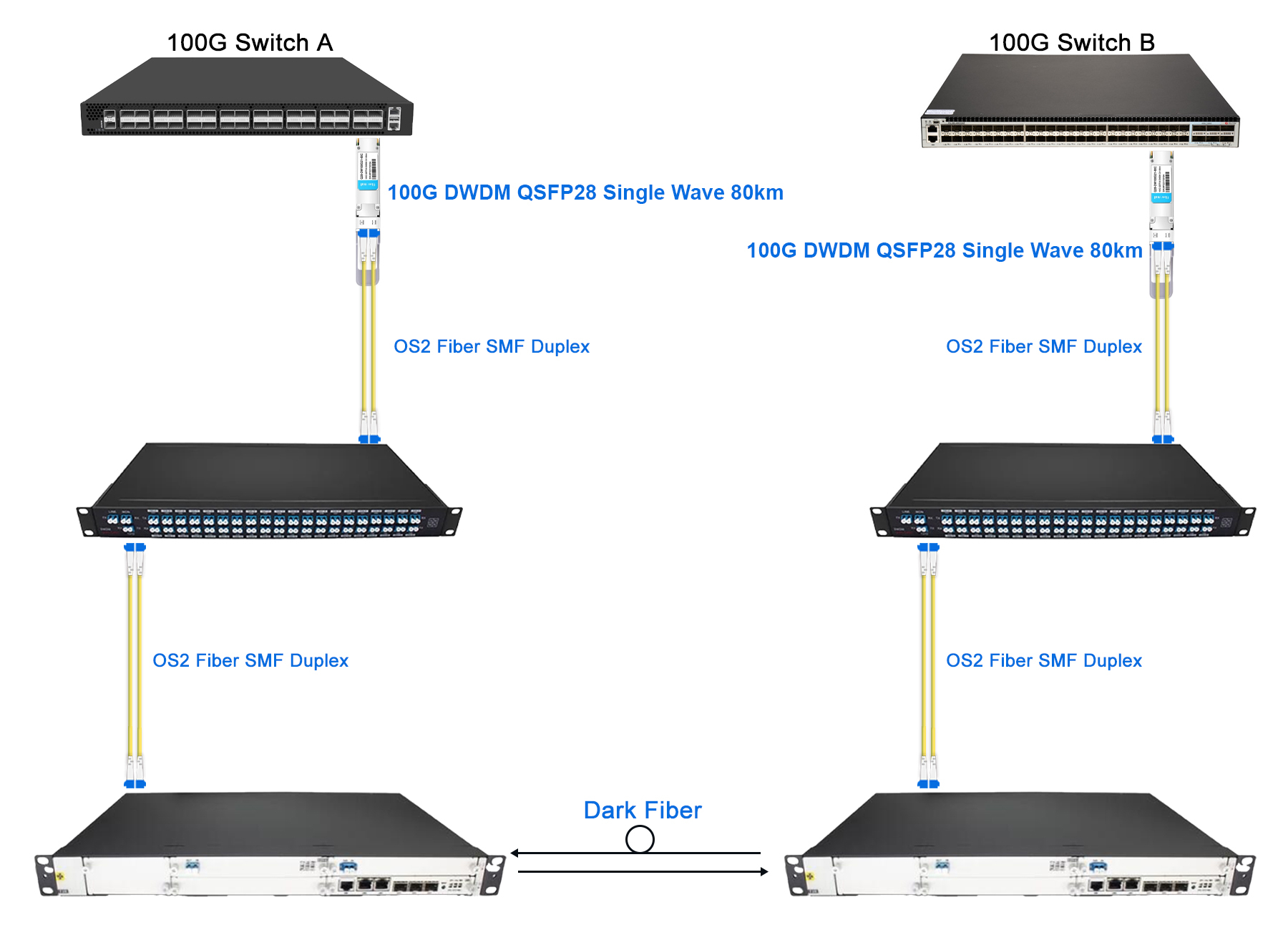

Applications

v 100G Amplified DWDM Networks

v Data Center Interconnects
