100G DWDM QSFP28 single wave transceiver module enables 80km optical transmission over single-mode fiber (SMF) with EDFA & DCM. It is available in all C-Band wavelengths on the 100GHz DWDM ITU Grid from 1528.77nm to 1565.50nm. The transceiver operates at a data rate of 100Gbps with PAM4 modulation format using duplex LC interfaces. It is compliant with the OIF CEI-28G-VSR, QSFP28 MSA and SFF-8636 Rev 2.10a standards for 100G amplified DWDM networks applications.
Product Details
FiberMall P/N
Q28-DW100G23-80C
Vendor Name
FiberMall
Form Factor
QSFP28
Max Data Rate
100Gbps
Wavelength
1558.98nm
Max Distance
80km (With EDFA and DCM)

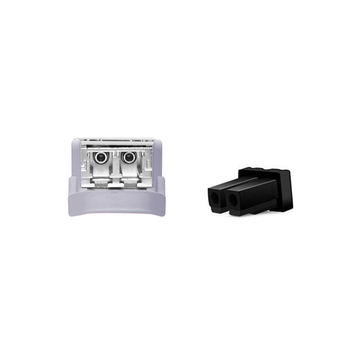

Connector
Duplex LC
Transmitter Type
EML
Cable Type
SMF
Receiver Type
PIN
DDM Support
Yes
Modulation Format
PAM4
TX Power
-7.0~+4.0dBm
Receiver Sensitivity
< -11.0dBm
Protocols
QSFP28 MSA, OIF CEI-28G-VSR, SFF-8636 Rev 2.10a
Operation Temperature
0 to 70°C (32 to 158°F)

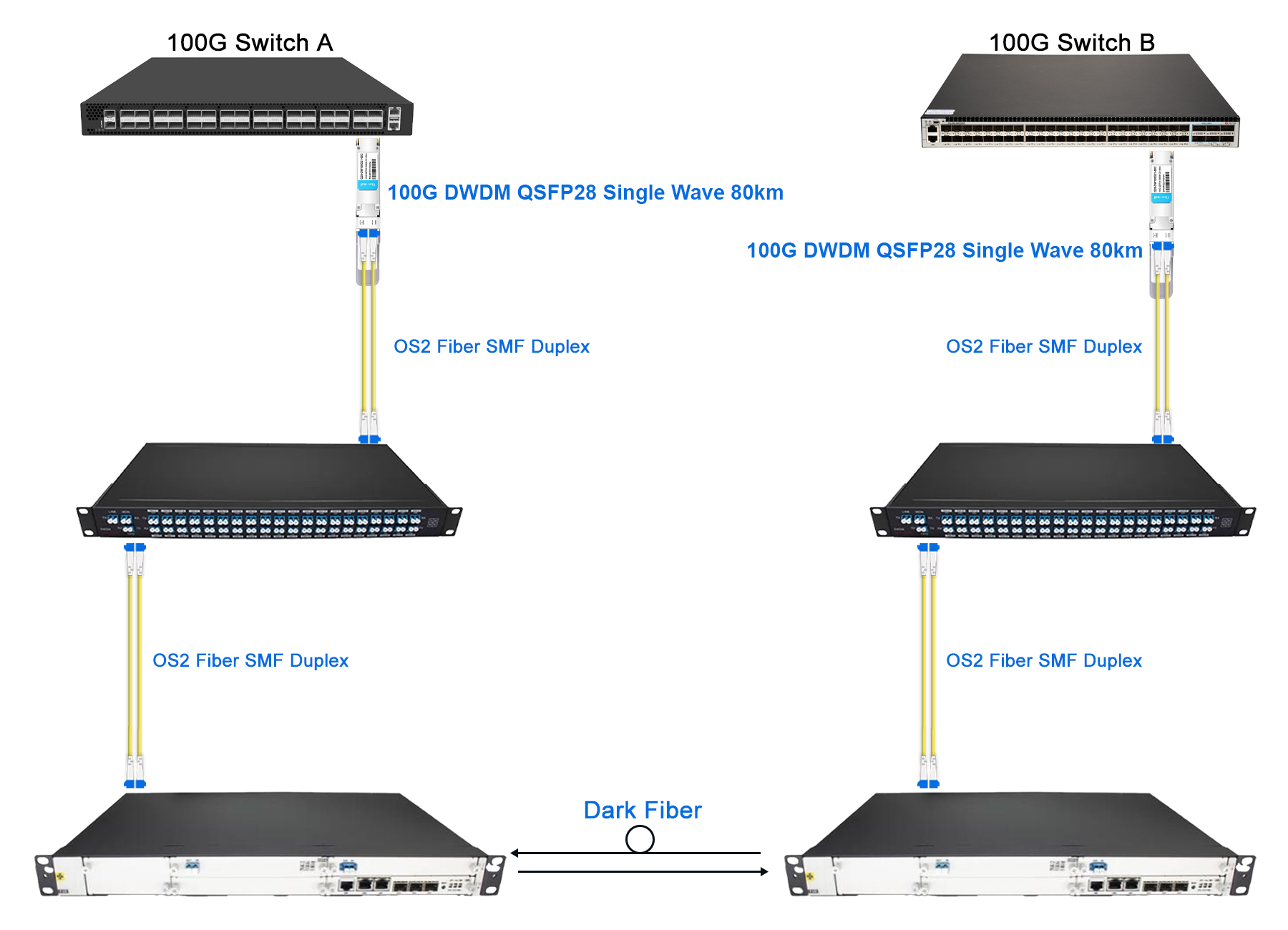

100G DWDM QSFP28 Is a Single-Wave Solution suitable for 80km with EDFA, DCM, and DWDM MUX DEMUX.
