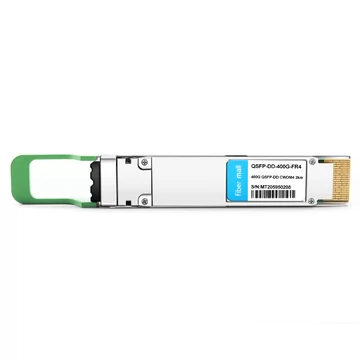

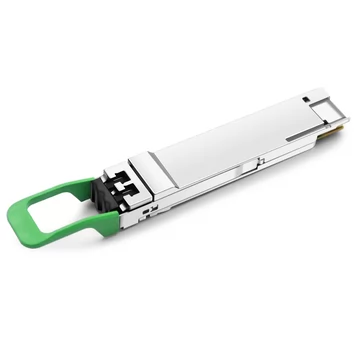

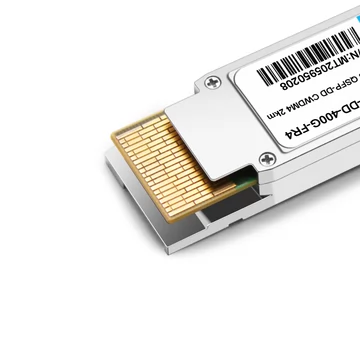

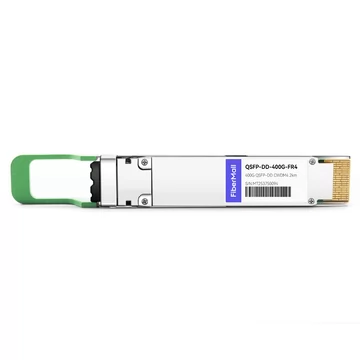

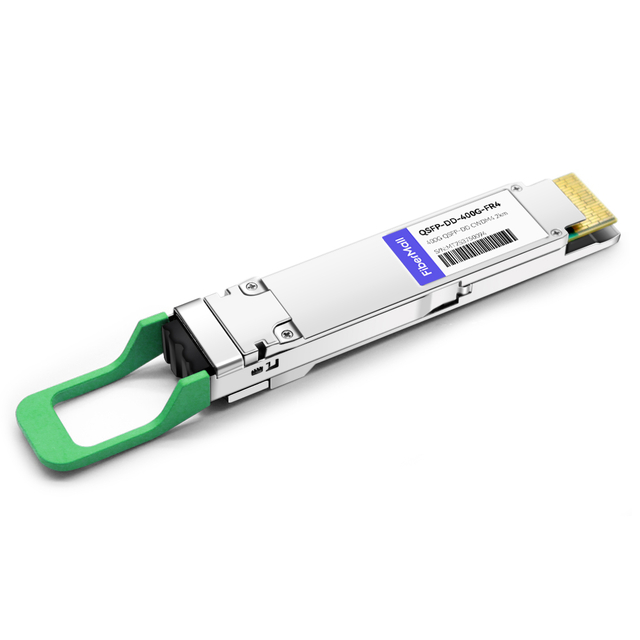

Juniper QDD-400G-FR4 Compatible 400G QSFP-DD FR4 Optics | FiberMall

Add to wish

Juniper Networks QDD-400G-FR4 Compatible 400G QSFP-DD FR4 PAM4 CWDM4 2km LC SMF FEC Optical Transceiver Module

Name: Juniper Networks QDD-400G-FR4 Compatible 400G QSFP-DD FR4 PAM4 CWDM4 2km LC SMF FEC Optical Transceiver Module
Brand: fibermall
SKU: 18098
Price: 600.00 USD
Availability: OutOfStock
Rating: 5 (5 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18098

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; AVAGO Broadcom; Arista Networks; Ciena; DELL; EdgeCore; H3C; HPE Aruba; Huawei; Juniper Networks

Transceiver Type: QDD-400G-DR4; QDD-400G-FR4; QDD-400G-LR8

FM PN:

QSFP-DD-400G-FR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Juniper Networks QDD-400G-FR4 Compatible 400G QSFP-DD FR4 PAM4 CWDM4 lanes MUX/DEMUX design 2km Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm LC SMF 2km with FEC DDM)

Juniper QDD-400G-FR4 Compatible QSFP56-DD 400G FR4 Transceiver Module supports 2km optical transmission using four CWDM lanes MUX/DEMUX & PAM4 technique. The Transceiver is a 400Gb/s Quad Small Form Factor Pluggable Double Density (QSFP-DD) optical module supporting link lengths up to 2km SMF through duplex LC connectors. It complies with IEEE 802.3bs, the 400GBASE-FR4 specification of the 100G Lambda MSA group, and the 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over four CWDM mesh optical wavelengths. Multiplexing and demultiplexing of four wavelengths are managed within the device.

Product Details

Juniper Networks Compatible	QDD-400G-FR4	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1271nm, 1291nm, 1311nm, 1331nm	Max Distance	2km
Modulation Format	PAM4	Host Required	FEC
Connector	Duplex LC	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	CWDM EML	Receiver Type	PIN
TX Power	-3.3~+3.5dBm	Receiver Sensitivity	< -7.7dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 10.5W
Protocols	QSFP-DD MSA, 100G Lambda MSA 400G-FR4	Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QDD-4X100G-FR-4Si	QDD-4X100G-FR-Si	QSFP-DD-400G-FR4
FiberMall P/N	QDD-4X100G-FR-4Si	QDD-4X100G-FR-Si	-
Vendor Name	FiberMall	FiberMall	FiberMall
Form Factor	QSFP-DD	QSFP-DD	QSFP-DD
Max Data Rate	425Gbps	425Gbps	425Gbps
Wavelength	1310nm	1310nm	1271nm, 1291nm, 1311nm, 1331nm
Max Distance	2km	2km	2km
Modulation Format	PAM4	PAM4	PAM4
Host Required	FEC	FEC	FEC
Connector	MTP/MPO-12	MTP/MPO-12	Duplex LC
Voltage Supply	3.3V	3.3V	3.3V
Cable Type	SMF	SMF	SMF
DDM Support	Yes	Yes	Yes
Transmitter Type	Silicon photonics	Silicon photonics	CWDM EML
Receiver Type	PIN	PIN	PIN
TX Power	-2.4~+4.0dBm	-2.4~+4.0dBm	-3.3~+3.5dBm
Receiver Sensitivity	< -4.5dBm	< -4.5dBm	< -7.7dBm
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	< 10W	< 10W	< 10.5W
Protocols	QSFP-DD MSA, 100G Lambda MSA 100G-FR	QSFP-DD MSA, 100G Lambda MSA 100G-FR	QSFP-DD MSA, 100G Lambda MSA 400G-FR4
Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Product Features

v QSFP-DD MSA compliant

v 4 CWDM lanes MUX/DEMUX design

v 100G Lambda MSA 400G-FR4 Specification compliant

v 8x53.125Gb/s electrical interface (400GAUI-8)

v Data Rate 106.25Gbps (PAM4) per channel

v Maximum power consumption 10.5W

v RoHS compliant

v Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking
