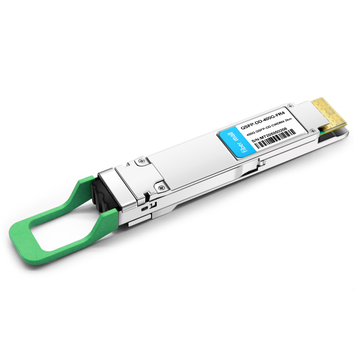

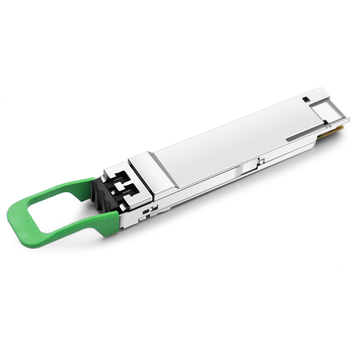

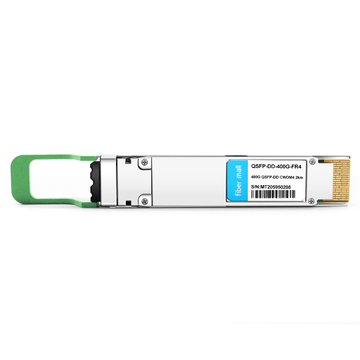

Mellanox MMS1V50-WM Compatible QSFP-DD FR4 Transceiver Module provides 400G connectivity up to 2km distance with FEC using LC connectors, which is hot swapping. The Transceiver complies with IEEE 802.3bs, the 400GBASE-FR4 specification of the 100G Lambda MSA group, and the 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over four CWDM mesh optical wavelengths. Multiplexing and demultiplexing of four wavelengths are managed within the device.
| Mellanox Compatible | MMS1V50-WM | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | CWDM EML | Receiver Type | PIN |
| TX Power | -3.3~+3.5dBm | Receiver Sensitivity | < -7.7dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 10.5W |
| Protocols | QSFP-DD MSA, 100G Lambda MSA 400G-FR4 | Application | 400G Ethernet, Data Center Interconnect |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
Mellanox Compatible
|
MMS1V50-WM
|
-
|
-
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP-DD
|
OSFP
|
QSFP112
|
|
Max Data Rate
|
425Gbps
|
425Gbps
|
425Gbps
|
|
Wavelength
|
1271nm, 1291nm, 1311nm, 1331nm
|
1310nm
|
1310nm
|
|
Max Distance
|
2km
|
500m
|
500m
|
|
Modulation Format
|
PAM4
|
PAM4
|
PAM4
|
|
Host Required
|
FEC
|
FEC
|
FEC
|
|
Connector
|
Duplex LC
|
MTP/MPO-12 APC
|
MTP/MPO-12
|
|
Voltage Supply
|
3.3V
|
3.3V
|
3.3V
|
|
Cable Type
|
SMF
|
SMF
|
SMF
|
|
DDM Support
|
Yes
|
Yes
|
Yes
|
|
Transmitter Type
|
CWDM EML
|
1310nm EML
|
1310nm EML
|
|
Receiver Type
|
PIN
|
PIN
|
PIN
|
|
TX Power
|
-3.3~+3.5dBm
|
-2.9~+4.0dBm
|
-2.9~+4.0dBm
|
|
Receiver Sensitivity
|
< -7.7dBm
|
< -4.4dBm
|
< -5.9dBm
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
|
Maximum Power
|
< 10.5W
|
< 12.0W
|
< 10.5W
|
|
Protocols
|
QSFP-DD MSA,
100G Lambda MSA 400G-FR4 |
OSFP MSA, IEEE 802.3bs
|
QSFP112 MSA, IEEE 802.3bs
|
|
Application
|
400G Ethernet, Data Center Interconnect
|
400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects
|
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
|
Product Features
v QSFP-DD MSA compliant
v 4 CWDM lanes MUX/DEMUX design
v 100G Lambda MSA 400G-FR4 Specification compliant
v 8x53.125Gb/s electrical interface (400GAUI-8)
v Data Rate 106.25Gbps (PAM4) per channel
v Maximum power consumption 10.5W
v RoHS compliant
v Supports Data Center Interconnect, 400G Ethernet, Enterprise networking
