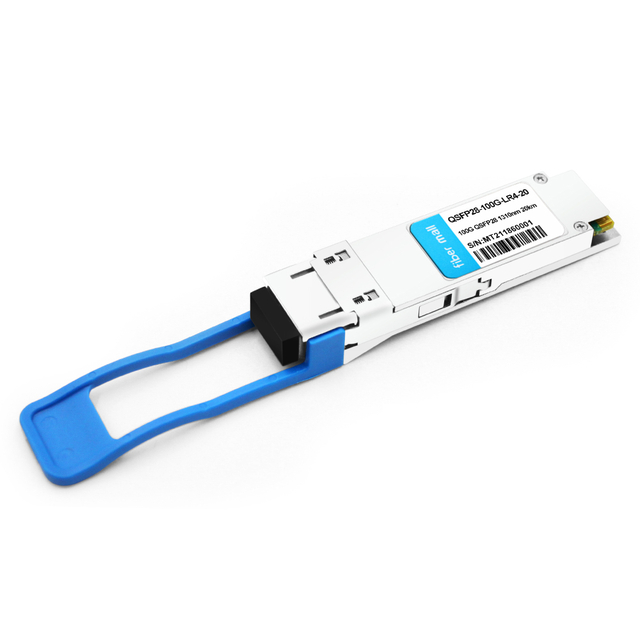

| FiberMall P/N | QSFP28-100G-LR4-20 | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 103.1Gbps |
| Wavelength | 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm | Max Distance | 20km |
| Connector | Duplex LC | Transmitter Type | LAN WDM DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -1.0~+4.5dBm | Receiver Sensitivity | < -12.0dBm |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v 4 lanes MUX/DEMUX design
v Integrated LAN WDM TOSA / ROSA for up to 20km reach over SMF
v Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
v Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
v Single +3.3V power supply operating
v RoHS Compliant Part
v Support FEC(Forward Error Correction)
v Supports Local Area Networks (LAN), Wide Area Networks (WAN), Ethernet switches, and router applications
