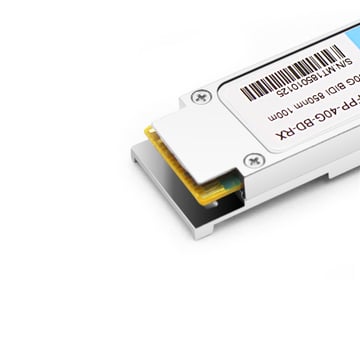

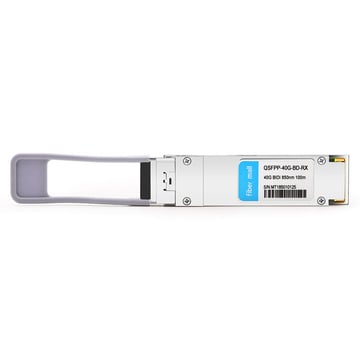

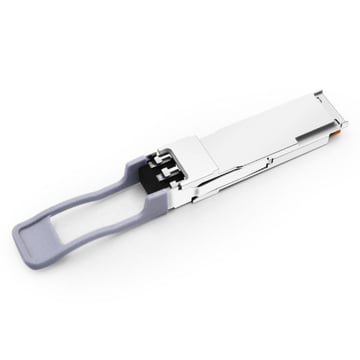

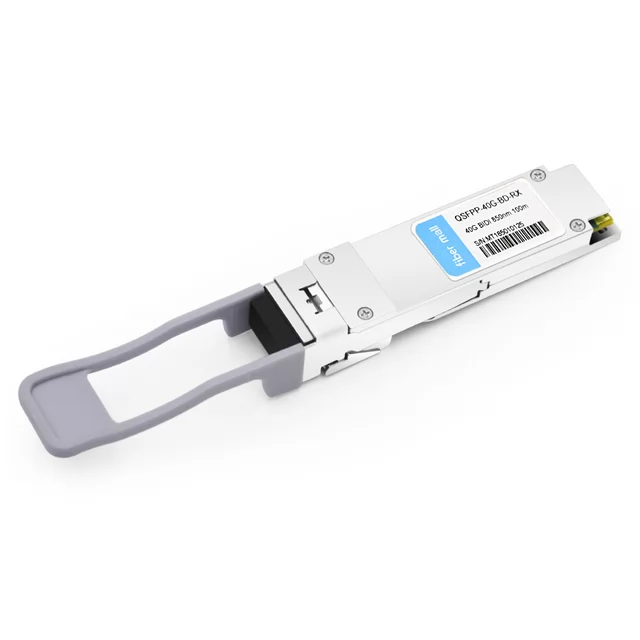

| Cisco Compatible | QSFP-40G-BD-RX | Vendor Name | FiberMall |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 850nm, 900nm | Max Distance | 100m @ OM3 /150m @OM4 |
| Connector | Duplex LC | Transmitter Type | N/A |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | N/A | Receiver Sensitivity | < -6.0dBm |
| Protocols | 40G Ethernet, IEEE802.3ba-2010, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
? Compliant with the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
? Compliant to QSFP+ SFF-8436 Specification
? Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
? QSFP MSA compliant
? Integrated ROSA for up to 100m reach over OM3 Multimode Fiber (MMF)and reach over 150m on OM4 MMF
? Single +3.3V power supply operating
? Without digital diagnostic functions
? RoHS Compliant Part
? Application for 40 Gigabit Ethernet interconnects, Datacom/Telecom switch & router connections, Data aggregation, etc.
