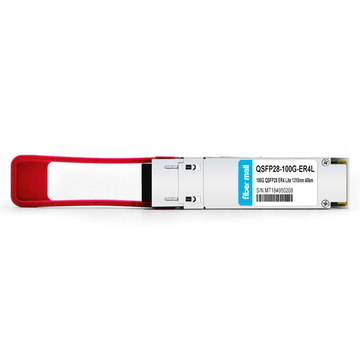

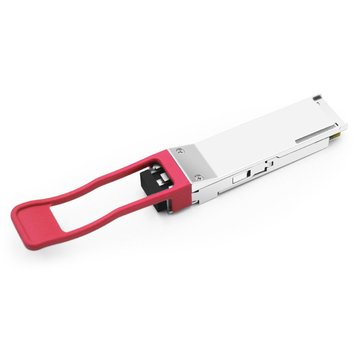

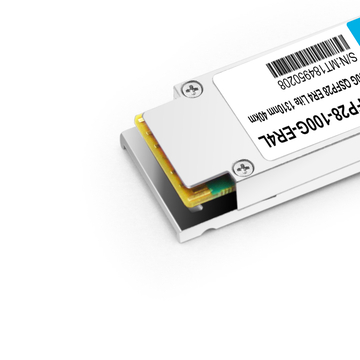

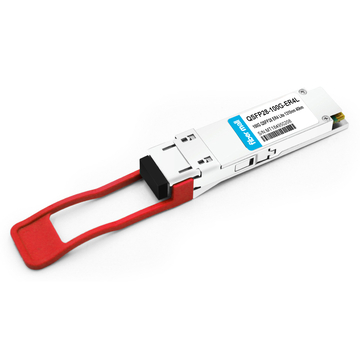

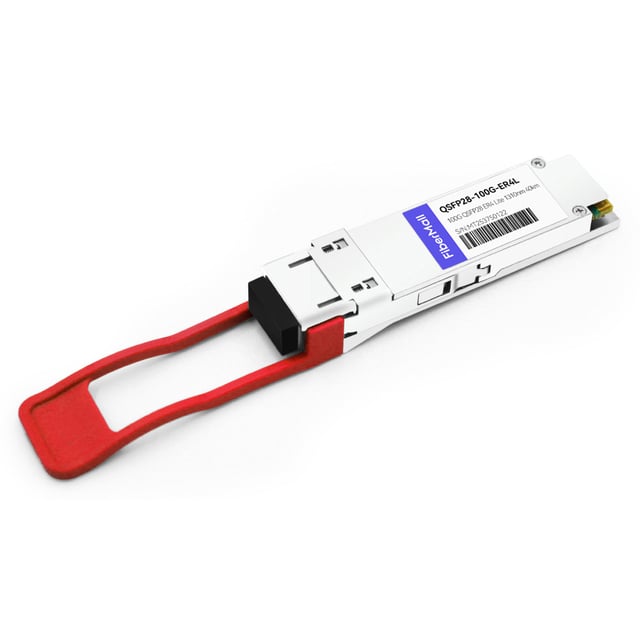

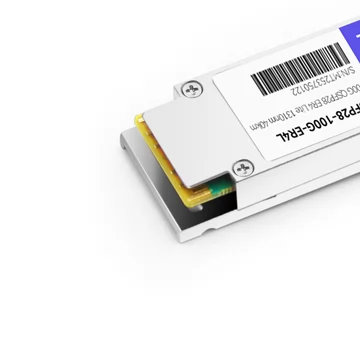

Cisco QSFP-100G-ER4L-S Compatible 100G QSFP28 ER4 Lite1310nm (LAN WDM) 40km with FEC,30km without FEC LC SMF DDM Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:10047
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Transmission Mode
Regular
FM PN:
QSFP28-100G-ER4L
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Cisco QSFP-100G-ER4L-S Compatible 100G QSFP28 ER4 Lite Transceiver Module (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm SMF 40km with FEC,30km without FEC LC DDM)

This product is a 100Gb/s transceiver module designed for optical communication applications compliant with Ethernet 100GBASE-ER4 Lite standard. The module converts input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. The high-performance cooled LAN WDM EA-DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 30km links without FEC and 40km links with FEC.

Product Details

Cisco Compatible QSFP-100G-ER4L-SVendor Name FiberMall
Form Factor QSFP28Max Data Rate 103.1Gbps
Wavelength 1295.56nm, 1300.05nm
1304.58nm, 1309.14nm
Max Distance 30km without FEC
40km with FEC
Connector Duplex LCTransmitter Type LAN WDM EML
Cable Type SMFReceiver Type APD
TX Power -2.9~+4.5dBmReceiver Sensitivity <-16.9dBm without FEC
<-20.9dBm with FEC
Protocols 100G Ethernet, MSA CompliantOperation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall

our advantages

Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall

Keep In Stock

Fast Delivery
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall

Professional Service

Technical Support
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
Coding(EEPROM Programming)
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
Testing system

Partial test demonstartion

Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
Cisco N9k-C92160YC-X-C
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
HP ProCurve 5406zl J8697A
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
ARISTA 7-50QX-32
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
Juniper EX4300
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
HW S5700-28X-L1-AC
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
Brocade VDX 6720
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
DELL S4048 ON
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
DATACOM DM4100
Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall
H3C LS-5500-28C-S

Product Features

v Hot pluggable QSFP28 MSA form factor

v Compliant to Ethernet 100GBASE-ER4 Lite

v Supports 103.1Gb/s aggregate bit rate

v Up to 30km reach for G.652 SMF without FEC, Up to 40km reach for G.652 SMF with FEC

v Single +3.3V power supply

v Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

v Receiver: 4x25Gb/s APD ROSA

v 4x25G electrical interface (OIF CEI-28G-VSR)

v Maximum power consumption 4.5W

v RoHS-6 compliant

v Supports 100GBASE-ER4 Ethernet Links, Infiniband QDR and DDR interconnects, Client-side 100G Telecom connections
