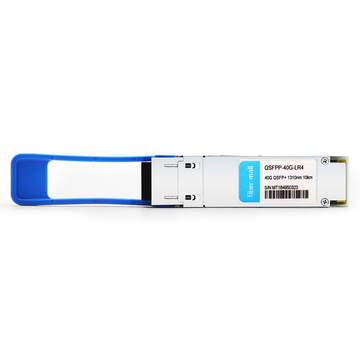

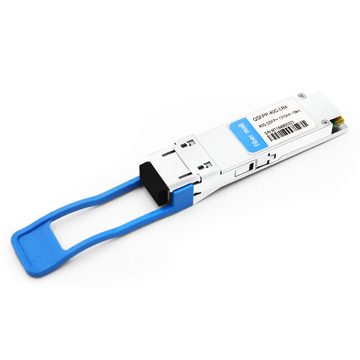

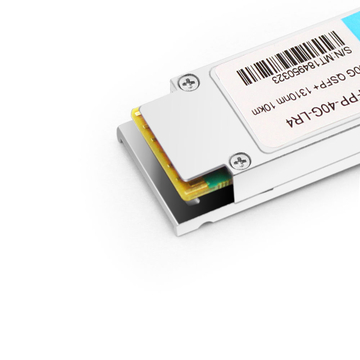

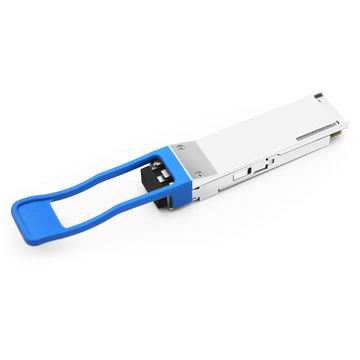

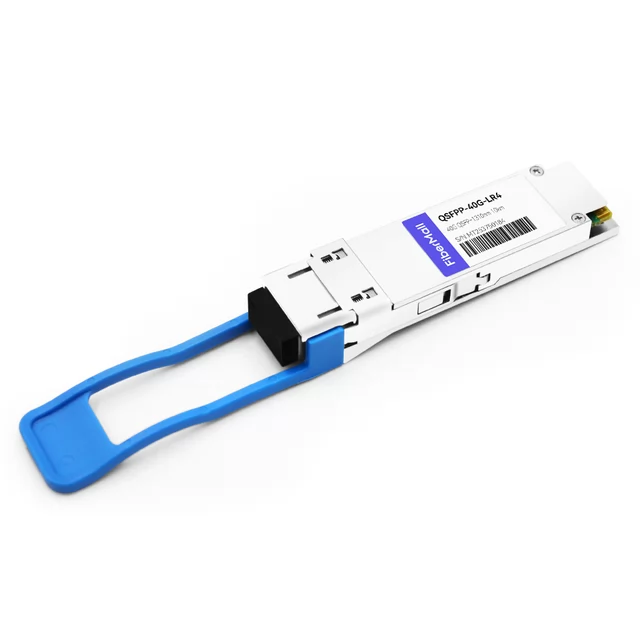

Brocade 40G-QSFP-LR4 Compatible 40G QSFP+ LR4 Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 10km LC DDM)
The 40G QSFP+ LR4 is a transceiver module designed for 10km optical communication applications. The design is compliant with 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMoptical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4CWDM channels signals and converts them to 4-channel output electrical data.
Product Details
| Brocade Compatible | 40G-QSFP-LR4 | Vendor Name | FiberMall |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1271nm, 1291nm
1311nm, 1331nm | Max Distance | 10km |
| Connector | LC | Transmitter Type | 4 Lanes CWDM DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -7~2.3dBm | Receiver Sensitivity | < -14dBm |
| Protocols | OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality
Assurance
Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
![Brocade 40G-QSFP-LR4 40GBase LR4 QSFP+ Optic | FiberMall]()
Keep In Stock
- Fast Delivery
![Brocade 40G-QSFP-LR4 40GBase LR4 QSFP+ Optic | FiberMall]()
Professional Service
- Technical Support
![Brocade 40G-QSFP-LR4 40GBase LR4 QSFP+ Optic | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![Brocade 40G-QSFP-LR4 40GBase LR4 QSFP+ Optic | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
![Brocade 40G-QSFP-LR4 40GBase LR4 QSFP+ Optic | FiberMall]()
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
![Brocade 40G-QSFP-LR4 40GBase LR4 QSFP+ Optic | FiberMall]()
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
![Brocade 40G-QSFP-LR4 40GBase LR4 QSFP+ Optic | FiberMall]()
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
![Brocade 40G-QSFP-LR4 40GBase LR4 QSFP+ Optic | FiberMall]()
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
![Brocade 40G-QSFP-LR4 40GBase LR4 QSFP+ Optic | FiberMall]()
- Coding(EEPROM Programming)
![Brocade 40G-QSFP-LR4 40GBase LR4 QSFP+ Optic | FiberMall]()
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6
-
H3C S6850-56HF
-
Cisco N9K-C92160YC-X
-
HP JG510A
-
Juniper QFX5110-48S-AFO
-
Mellanox SN4700
-
Cisco-N9K-C93600CD-GX
-
NVIDIA QM9790
-
Ruijie RG-S6990-128QC2XS
