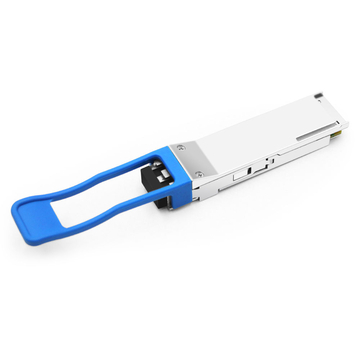

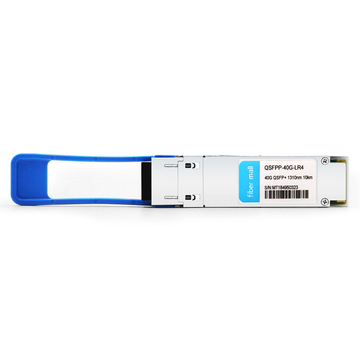

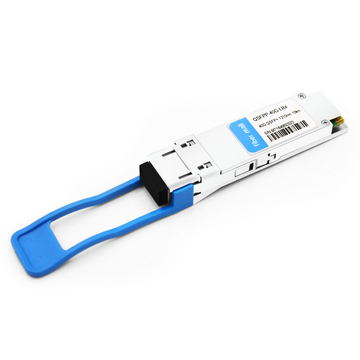

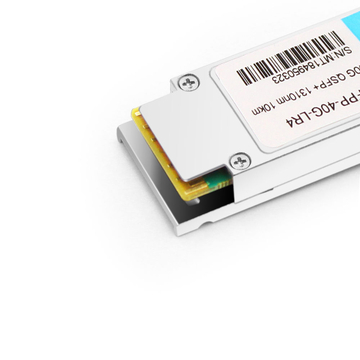

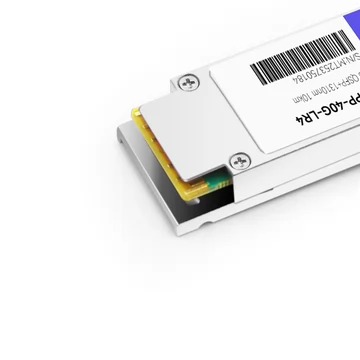

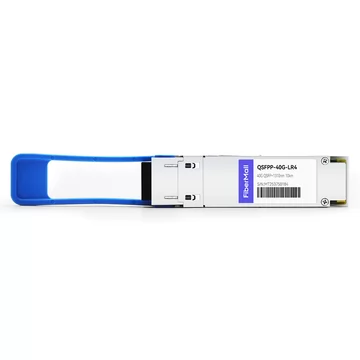

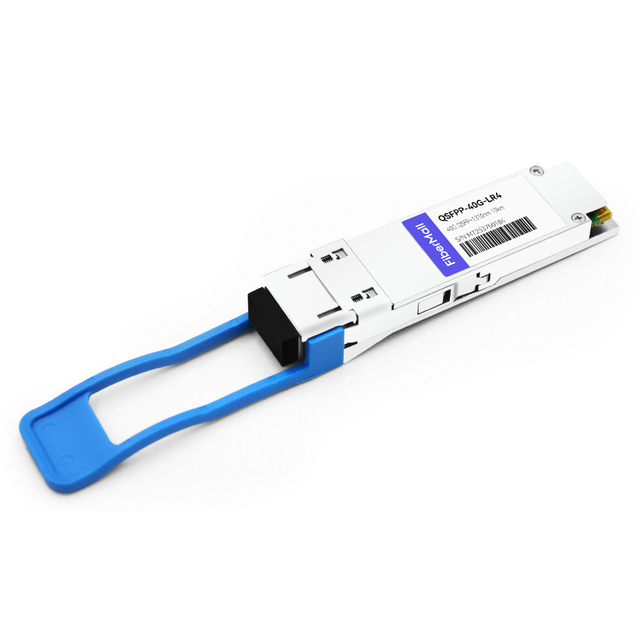

| Juniper Compatible | SRX-QSFP-40G-LR4 | Vendor Name | FiberMall |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1271nm, 1291nm 1311nm, 1331nm | Max Distance | 10km |
| Connector | LC | Transmitter Type | 4 Lanes CWDM DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -7~2.3dBm | Receiver Sensitivity | < -14dBm |
| Protocols | OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v 4 CWDM lanes MUX/DEMUX design
v Up to 11.2Gbps per channel bandwidth
v Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard,
v Up to10km transmission
v Compliant with QDR/DDR Infiniband data rates
v Single +3.3V power supply operating
v RoHS Compliant Part
v Supports Data centers, Switches, and Routers, Metro networks
