{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
| Packet Forwarding Rate | 536Mpps | Box switching capacity | 1.44Tbps |
| Flash/SDRAM | 1GB/2GB | Buffer | 3M |
| Dimensions (W×D×H) | 440×360×43.6 mm | Weight | ≤4.2kg |
| Service ports | 24×1/10GE SFP+ fiber ports | Console ports | 1 |
| Management Ethernet ports | 1 | USB ports | 1 |
| Expansion slots | 1 (2-port 40GE QSFP+ interface module) | Fan Trays | 2 |
| Idle power consumption | AC:25W | Max. power consumption | AC:110W |
| Input voltage range | AC:100V~240V | Operating temperature | 0ºC to 45ºC (32°F to 113°F) |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing | MTBF (Year) | 58.1 |
| MTTR (Hour) | 1 |
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. Our products meet industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
The H3C S6520X-SI series Ethernet switches are designed as 10G access switches, offering 16/24/48 adaptive 10G interfaces for downstream connectivity. With flexible networking configurations, they are ideal for Gigabit-to-Desktop (GTTD) deployments in campus networks and server cluster connections in data centers. Below are several typical networking configurations.
In campus networks, H3C S6520X-SI series Ethernet switches function as aggregation layer switches, delivering high-performance and large-capacity switching services. The S6520X-SI supports 16/24/4810G ports, with an 8-port 10G card enabling expansion. This configuration establishes 10G downlinks for S5130 series devices (equipped with fixed 10G uplinks) to achieve GE/10G aggregation.
Application at the aggregation layer of enterprise or campus networks:

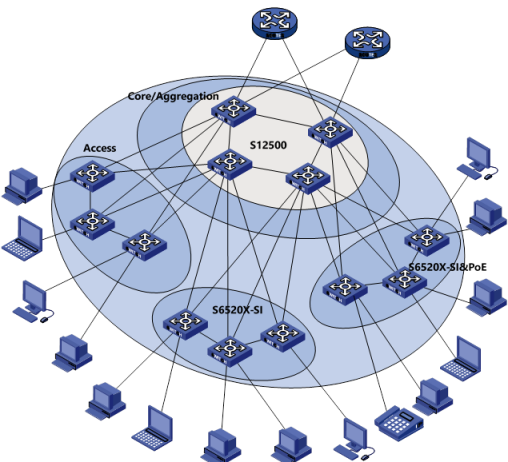

The H3C S6520X-SI series Ethernet switches function as access layer switches, delivering high access bandwidth and premium port density for users. Applications in the access layer:

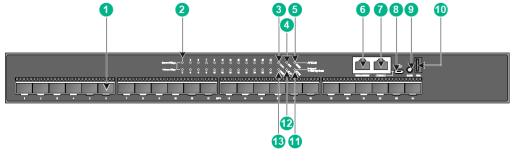

Front Panel

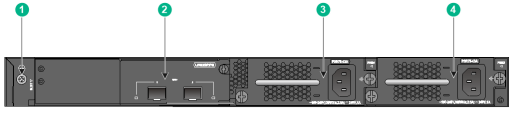

Rear Panel
| Model | Speed | Ports | Throughput | Form Factor | Cooling | Supported Operating Systems | Key Features |
|---|---|---|---|---|---|---|---|
| S5590-24X4YC-EI | 10G | 24×1/10G SFP+/4×25G SFP28 | 1.44 Tbps | 1U | Air | Comware | IRF2, SDN/OpenFlow. OSPF/BGP; high availability (M-LAG). VxLAN, advanced security |
| S5590-24UXMC-EI | 10G | 24×Multigigabit Base-T PoE++ | 2.4 Tbps | 1U | Air | Comware | IRF2, SDN, OSPF/BGP; PoE++(90W/port), M-LAG, VxLAN, MACsec |
| S6520X-54HF-EI | 10G/100G | 48×1/10G SFP+/6×100G QSFP28 | 2.16 Tbps | 1U | Air | Comware | IRF, SDN, OSPF/BGP; multicast, high resiliency advanced telemetry |
| S6520-22SG-SI | 10G | 8×GE+14×1/10GSFP+ | 2.56 Tbps | 1U | Air | Comware | IRF2, SDN/OpenFlow, OSPF/BGP; VXLAN, high availability, QoS |
| S6520X-26C-SI | 10G | 24×1/10G SFP+ | 2.56 Tbps | 1U | Air | Comware | RF, SDN, OSPF/BGP; multicast, flexible expansion, security features |
| S6520X-54QC-EI | 10G/40G | 48×1/10G SFP+/2×40G QSFP+ | 1.44 Tbps | 1U | Air | Comware | IRF, SDN, OSPF/BGPuplink fexibility. esiliency, multicast |
| S6520X-54HC-UPWR-EI | 10G/100G | 24×Multigigabit Base-T PoE++ +4×100G QSFP28 | 1.44 Tbps | 1U | Air | Comware | IRF, SDN, OSPF/BGP; PoE++support, high availability, VxLAN |
To ensure timely heat dissipation and maintain system stability, the switch employs a high-performance cooling system. When planning the installation location, always account for adequate site ventilation.
This switch employs a fixed fan design, with fan brackets drawing ambient air into the chassis from the left and port sides, expelling air from the right side. All fan brackets installed on the switch must be of the same model.
Airflow direction: (S6520X-26C-SI)
