{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
| Dimensions (W×D×H) (unit: mm) | 440×260×43.6 | Full weight | <6kg |
| Console Port | 1 | Ethernet Port for Management | 1 |
| USB Port | 1 | Front Panel Service Port Description | 8 GE+14 1/10G SFP Plus ports |
| Input voltage | Comminicate Rated voltage range: 100V~240V, 50/60Hz | Power consumption (static) | AC: 15W |
| Power consumption (full load) | AC: 45W | Working Temperature | -5 ºC to 45 ºC (23°F~113°F) |
| Relative Humidity of Working Environment | 5 % to 95 % (non-condensing) | exchange capacity | 2.56Tbps/23.04Tbps |
| packet forwarding rate | 220Mpps |
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. Our products meet industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
The H3C S6520-SI series Ethernet switches are designed as 10G access switches, offering both Gigabit and 10G interfaces for downstream connectivity. With flexible networking configurations, they are ideal for Gigabit-to-desktop access in campus networks and server cluster connections in data centers. Below are several typical networking configurations.

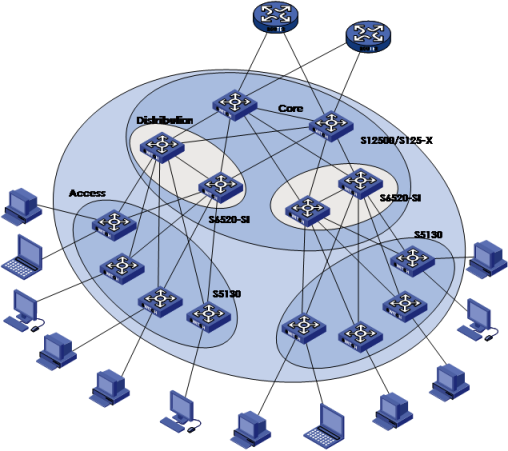

In campus networks, H3C S6520-SI series Ethernet switches function as aggregation layer switches, delivering high-performance and large-capacity switching services. The S6520-SI supports Gigabit to 40G ports, enabling GE/10G aggregation by connecting S5130 series devices (with fixed 10G uplink) downstream.
Application at the aggregation layer of enterprise or campus networks:

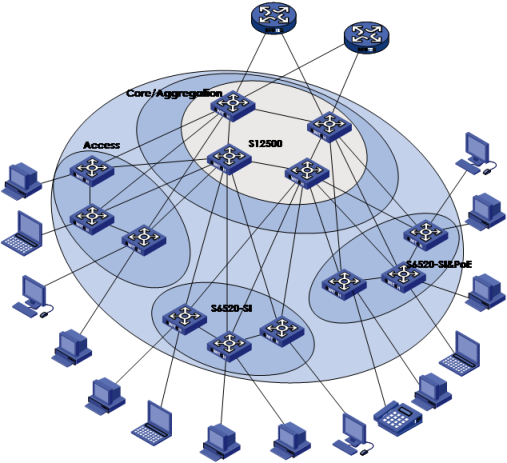

The H3C S6520-SI series Ethernet switches function as access layer switches, delivering high access bandwidth and premium port density for users. Applications in the access layer:

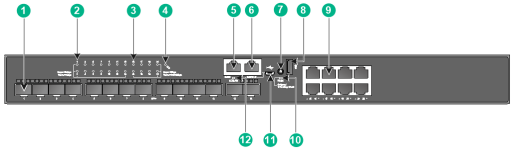

Front Panel

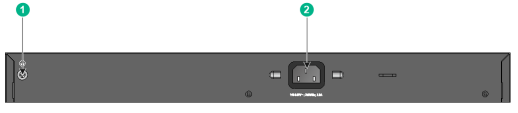

Rear Panel
| Model | Speed | Ports | Throughput | Form Factor | Cooling | Supported Operating Systems | Key Features |
|---|---|---|---|---|---|---|---|
| S5590-24X4YC-EI | 10G | 24×1/10G SFP+/4×25G SFP28 | 1.44 Tbps | 1U | Air | Comware | IRF2, SDN/OpenFlow. OSPF/BGP; high availability (M-LAG). VxLAN, advanced security |
| S5590-24UXMC-EI | 10G | 24×Multigigabit Base-T PoE++ | 2.4 Tbps | 1U | Air | Comware | IRF2, SDN, OSPF/BGP; PoE++(90W/port), M-LAG, VxLAN, MACsec |
| S6520X-54HF-EI | 10G/100G | 48×1/10G SFP+/6×100G QSFP28 | 2.16 Tbps | 1U | Air | Comware | IRF, SDN, OSPF/BGP; multicast, high resiliency advanced telemetry |
| S6520-22SG-SI | 10G | 8×GE+14×1/10GSFP+ | 2.56 Tbps | 1U | Air | Comware | IRF2, SDN/OpenFlow, OSPF/BGP; VXLAN, high availability, QoS |
| S6520X-26C-SI | 10G | 24×1/10G SFP+ | 2.56 Tbps | 1U | Air | Comware | RF, SDN, OSPF/BGP; multicast, flexible expansion, security features |
| S6520X-54QC-EI | 10G/40G | 48×1/10G SFP+/2×40G QSFP+ | 1.44 Tbps | 1U | Air | Comware | IRF, SDN, OSPF/BGPuplink fexibility. esiliency, multicast |
| S6520X-54HC-UPWR-EI | 10G/100G | 24×Multigigabit Base-T PoE++ +4×100G QSFP28 | 1.44 Tbps | 1U | Air | Comware | IRF, SDN, OSPF/BGP; PoE++support, high availability, VxLAN |
To ensure timely heat dissipation and maintain system stability, the switch employs a high-performance cooling system. When planning the installation location, always account for adequate site ventilation.

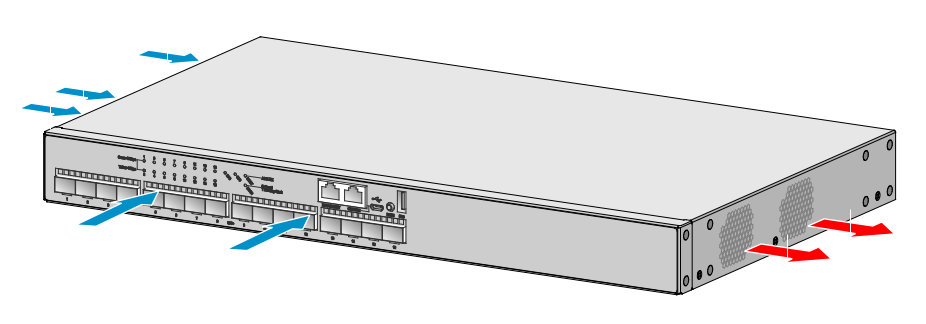

The S6520-SI series switches use fixed fans, with the airflow direction for heat dissipation being intake from the port side and left side of the chassis, and exhaust from the right side of the chassis ("left" and "right" are based on the user's view of the device's port side panel).
Airflow direction:
