| Flash/SDRAM | 4G/2G | Packet Buffer | 9MB |
| Switching Capacity | 2.4Tbps | Latency (64byte/s) | GE: < 5µs 10GE: < 3µs |
| Packet Forwarding Rate | 625Mpps | Dimensions (W×D×H) (unit: mm) | 440×360×44 |
| Weight | <7.0kg | Console Port | 1 |
| Ethernet Port for Management | 10/100/1000Base-T port: 1 | USB Port | 1 |
| SFP+ port | 24 | SFP28 port | 4 |
| Expansion Card Slot | 1 | Input Voltage | AC:90V~264V DC:-48V~-60V |
| Power Consumption | Dual AC:102W Dual DC:98W | MTBF (Year) | 113.68 |
| MTTR (Hour) | 1 | Working Temperature | -5 ºC to 45 ºC (23°F~113°F) |
| Relative Humidity of Working Environment | 5 % to 95 % (non-condensing) |
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. Our products meet industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
The H3C S5590-EI series Ethernet switches are designed as gigabit access switches, offering 24/48 adaptive gigabit interfaces for downstream connectivity. With flexible networking configurations, they are ideal for gigabit-to-desktop access in campus networks and server cluster connections in data centers. Below are several typical networking configurations.
In large and medium-sized enterprises or industrial park networks, H3C S5590-EI series Ethernet switches can serve as aggregation layer switches, delivering high-performance, large-capacity switching and 10/25/40/100G uplink services.

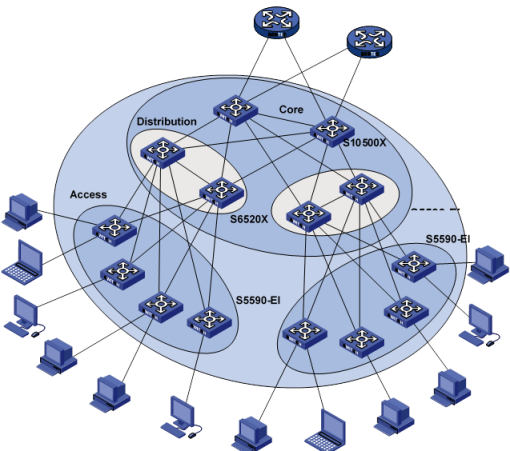

Application at the aggregation layer of enterprise or campus networks:
In a two-tier network, the S5590-EI can directly connect to end users and then aggregate to the core device through the uplink port.
Applications in the access layer:

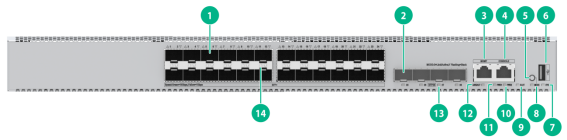

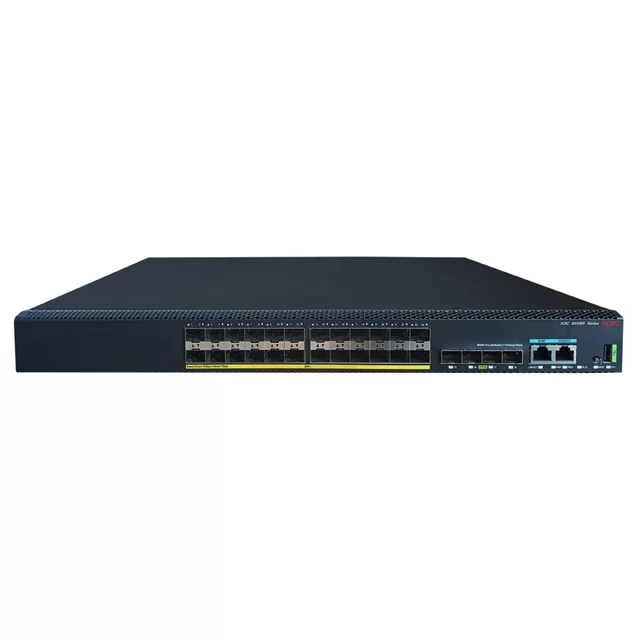

Front panel

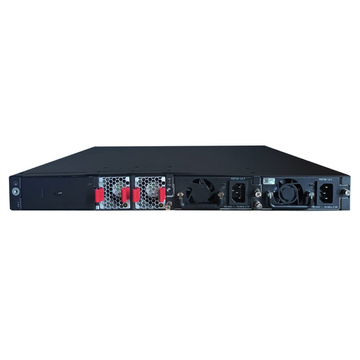

Rear Panel
| Model | Speed | Ports | Throughput | Form Factor | Cooling | Supported Operating Systems | Key Features |
|---|---|---|---|---|---|---|---|
| S5590-24X4YC-EI | 10G | 24×1/10G SFP+/4×25G SFP28 | 1.44 Tbps | 1U | Air | Comware | IRF2, SDN/OpenFlow. OSPF/BGP; high availability (M-LAG). VxLAN, advanced security |
| S5590-24UXMC-EI | 10G | 24×Multigigabit Base-T PoE++ | 2.4 Tbps | 1U | Air | Comware | IRF2, SDN, OSPF/BGP; PoE++(90W/port), M-LAG, VxLAN, MACsec |
| S6520X-54HF-EI | 10G/100G | 48×1/10G SFP+/6×100G QSFP28 | 2.16 Tbps | 1U | Air | Comware | IRF, SDN, OSPF/BGP; multicast, high resiliency advanced telemetry |
| S6520-22SG-SI | 10G | 8×GE+14×1/10GSFP+ | 2.56 Tbps | 1U | Air | Comware | IRF2, SDN/OpenFlow, OSPF/BGP; VXLAN, high availability, QoS |
| S6520X-26C-SI | 10G | 24×1/10G SFP+ | 2.56 Tbps | 1U | Air | Comware | RF, SDN, OSPF/BGP; multicast, flexible expansion, security features |
| S6520X-54QC-EI | 10G/40G | 48×1/10G SFP+/2×40G QSFP+ | 1.44 Tbps | 1U | Air | Comware | IRF, SDN, OSPF/BGPuplink fexibility. esiliency, multicast |
| S6520X-54HC-UPWR-EI | 10G/100G | 24×Multigigabit Base-T PoE++ +4×100G QSFP28 | 1.44 Tbps | 1U | Air | Comware | IRF, SDN, OSPF/BGP; PoE++support, high availability, VxLAN |
To ensure timely heat dissipation and maintain system stability, the switch employs a high-performance cooling system. When planning the installation location, always account for adequate site ventilation.
This switch utilizes pluggable fans. The selected LSPM1FANSB-SN fan tray model directs airflow from the port side to the power supply side. All fan trays installed on the switch must be of the same model.
Airflow direction:
