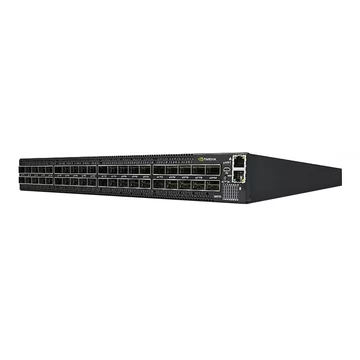

NVIDIA MQM8700-HS2F Quantum HDR InfiniBand Switch, 40 x HDR QSFP56 Ports, Two Power Supplies (AC), Managed, x86 Dual Core, Standard Depth, P2C Airflow, Rail Kit

NVIDIA MQM8700-HS2F Quantum HDR InfiniBand Switch, 40 x HDR QSFP56 Ports, Two Power Supplies (AC), Managed, x86 Dual Core, Standard Depth, P2C Airflow, Rail Kit

Product Details

Part Number	MQM8700-HS2F	Mount Rack	1U rack mount
Ports	40xQSFP56 200Gb/s	System Power Usage	747W
Switching Capacity	16Tb/s	Latency	253W
CPU	x86 ComEx Broadwell D-1508	System Memory	8GB
Software	MLNX-OS	Power Supply	1+1 redundant and hotswappable power
Dimensions(HxWxD)	1.7"(H) x 17"W) x23.2"(D) 43.6mm (H) x 433.2mm (W) x 590.6mm (D)	Warranty	Supported for 1/3/5 years, depending on the years of service purchased

200G InfiniBand NDR Switch to 200G NIC

200G NDR Switch to 200G NIC

NVIDIA Quantum HDR InfiniBand Switch Links Using Multi-mode Optics to 200G HDR NIC

Mellanox MMA1T00-HS Compatible 200G Infiniband HDR QSFP56 SR4 850nm 100m MPO-12 APC OM3/OM4 FEC PAM4 Optical Transceiver Module

$  139.00

NVIDIA MFP7E10-N007 Compatible 7m (23ft) 8 Fibers Low Insertion Loss Female to Female MPO Trunk Cable Polarity B APC to APC LSZH Multimode OM3 50/125

$  42.00

NVIDIA Mellanox MCX653106A-HDAT-SP ConnectX-6 InfiniBand/VPI Adapter Card, HDR/200GbE, Dual-Port QSFP56, PCIe3.0/4.0 x16, Tall Bracket

$  1600.00

NVIDIA MQM8700-HS2F Quantum HDR InfiniBand Switch, 40 x HDR QSFP56 Ports, Two Power Supplies (AC), Managed, x86 Dual Core, Standard Depth, P2C Airflow, Rail Kit

$  17000.00

NVIDIA Quantum HDR InfiniBand Switch Links Using Multi-mode Optics to 200G HDR NIC

Mellanox MFS1S00-H100E Compatible 100m (328ft) 200G HDR QSFP56 to QSFP56 Active Optical Cable

$  465.00

NVIDIA Mellanox MCX653106A-HDAT-SP ConnectX-6 InfiniBand/VPI Adapter Card, HDR/200GbE, Dual-Port QSFP56, PCIe3.0/4.0 x16, Tall Bracket

$  1600.00

NVIDIA MQM8700-HS2F Quantum HDR InfiniBand Switch, 40 x HDR QSFP56 Ports, Two Power Supplies (AC), Managed, x86 Dual Core, Standard Depth, P2C Airflow, Rail Kit

$  17000.00

---

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

Keep In Stock

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High stability

Switch Introduction

NVIDIA Quantum-2 Switches

Model	Speed	Ports	Throughput	Management	Cooling	Topologies	Key Features
Q3400-RA	XDR 800Gb/s	144 (72 OSFP)	115.2Tb/s	Managed	Air, C2P	Fat Tree, DragonFly+, Torus	SHARP™ v4, ultra-low latency
QM9700-NS2F	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Managed	Air, P2C	Fat Tree, DragonFly+, Torus	SHARP™ v3, subnet manager
MQM9700-NS2R	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Managed	Air, C2P	Fat Tree, DragonFly+, Torus	SHARP™ v3, DGX H100 optimized
MQM9790-NS2F	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Unmanaged	Air, P2C	Fat Tree, DragonFly+, Torus	SHARP™ v3, cost-effective
MQM9790-NS2R	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Unmanaged	Air, C2P	Fat Tree, DragonFly+, Torus	SHARP™ v3, scalable
MQM8700-HS2F	HDR 200Gb/s	40 (QSFP56)	16Tb/s	Managed	Air, P2C	Fat Tree, Torus	SHARP™, sub-130ns latency
MQM8790-HS2F	HDR 200Gb/s	40 (QSFP56)	16Tb/s	Unmanaged	Air, P2C	Fat Tree, Torus	SHARP™, cost-effective

Switch to Switch (NDR) - Optics

Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper

Switch to Switch (NDR) - HDR&EDR

Switch to HCA

Switch to HCA (NDR) - Optics

Switch to HCA (NDR) - Copper

Switch-to-DGX H100 GPU Systems
