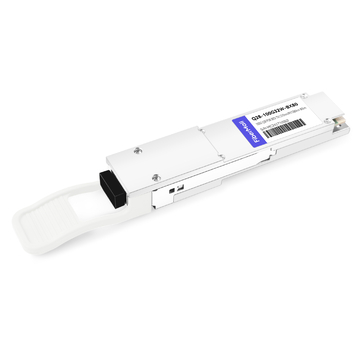

Dell Compatible | Q28-100G32W-BX80 | Vendor Name | FiberMall |
Form Factor | QSFP28 | Max Data Rate | 103.125Gbps |
Wavelength | TX1273.54, 1277.89, 1282.26, 1286.66nm/RX1295.56, 1300.05, 1304.58, 1309.14nm | Max Distance | 80km |
Connector | Simplex LC | Transmitter Type | EML |
Cable Type | SMF | Receiver Type | SOA+PIN |
TX Power | +2.0~+6.5dBm | Receiver Sensitivity | -28dBm |
Protocols | QSFP28 MSA | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
? 4x25Gb/s LAN WDM Blue or Red Side TOSA, LAN WDM Red or Blue Side ROSA with SOA
? Support 100GBASE-ZR4 for a line rate of 103.125Gbps and OTU4 for a line rate of 111.81Gbps
? Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
? Simplex LC connector
? Single +3.3V power supply operating
? Temperature range 0°C to 70°C
? RoHS Compliant Part
Applications
? 100GBASE-ZR4
? Data Center
