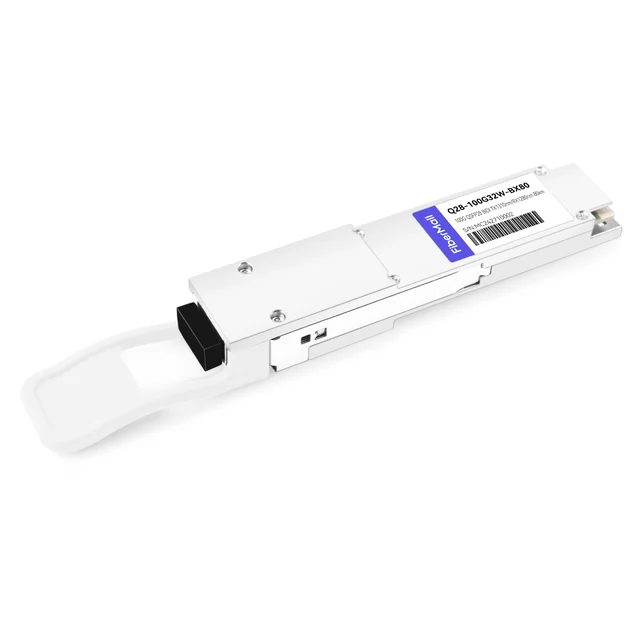

100G BIDI QSFP28 TX1310nm/RX1280nm Module 80km | FiberMall

Add to wish

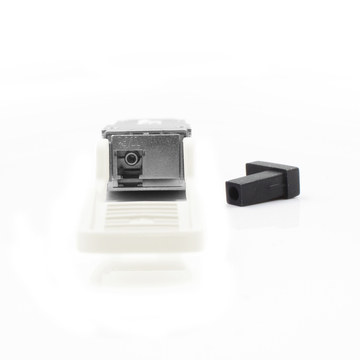

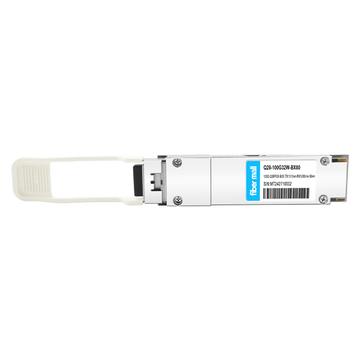

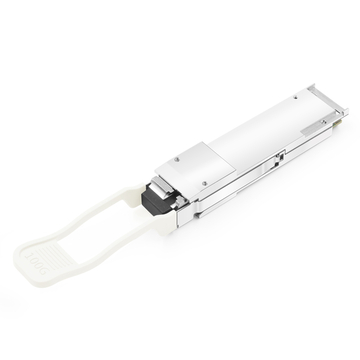

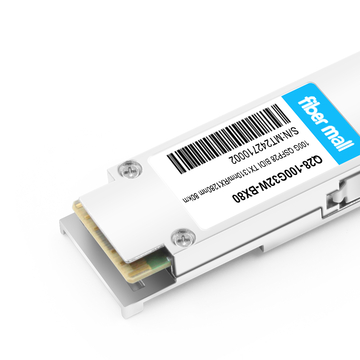

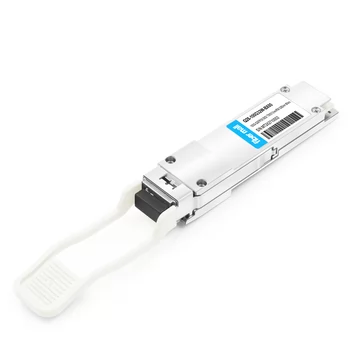

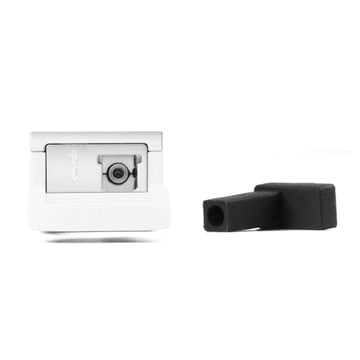

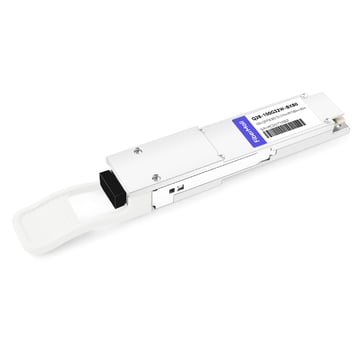

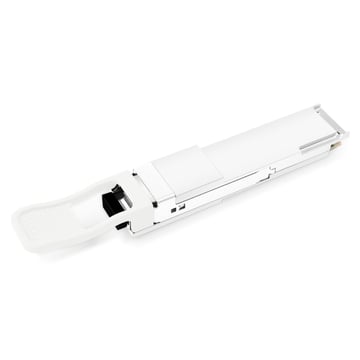

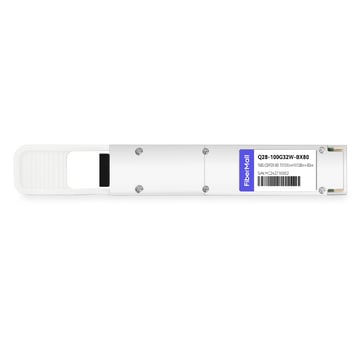

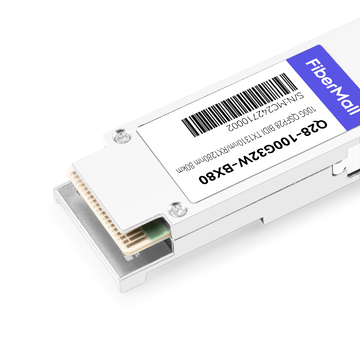

Q28-100G32W-BX80 100G QSFP28 BIDI TX1310nm/RX1280nm Simplex LC SMF 80km with RS FEC DDM Optical Transceiver Module

Name: Q28-100G32W-BX80 100G QSFP28 BIDI TX1310nm/RX1280nm Simplex LC SMF 80km with RS FEC DDM Optical Transceiver Module
Brand: fibermall
SKU: 20162
Price: 2700.00 USD
Availability: OutOfStock
Rating: 5 (7 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20162

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

Transceiver Type: QSFP28-100G-SR4; QSFP28-112G-SR4; QSFP28-100G-eSR4; QSFP28-100G-IR4; QSFP28-100G-DR1; QSFP28-100G-PSM4; QSFP28-100G-4WDM-10; QSFP28-100G-FR1; QSFP28-100G-LR1; QSFP28-100G-SR1.2; QSFP28-100G-LR4; QSFP28-100G-LR4-20; QSFP28-100G-SWDM4; QSFP28-112G-LR4; QSFP28-100G-BDRX; QSFP28-100G-SRBD; Q28-100G23-BX10; Q28-100G32-BX10; Q28-100G23-BX20; Q28-100G32-BX20; QSFP28-100G-ER4L; Q28-100G49-BX30; Q28-100G94-BX30; Q28-100G49-BX40; Q28-100G94-BX40; QSFP28-100G-ER1L; QSFP28-100G-ER1; Q28-100G23W-BX20; Q28-100G32W-BX20; QSFP28-100G-ZR4L; QSFP28-112G-ER4; QSFP28-100G-ZR4; Q28-100G23W-BX40; Q28-100G32W-BX40; QSFP28-100G-ZR4+; Q28-100G23W-BX70; Q28-100G32W-BX70; Q28-100G23W-BX80; Q28-100G32W-BX80

FM PN:

Q28-100G32W-BX80

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

100G QSFP28 BIDI LWDM4 Optical Transceiver Module (TX1273.54, 1277.89, 1282.26, 1286.66nm/RX1295.56, 1300.05, 1304.58, 1309.14nm Simplex LC SMF 80km with RS FEC DDM)

Product Details

FiberMall P/N	Q28-100G32W-BX80	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	103.125Gbps
Wavelength	TX1273.54, 1277.89, 1282.26, 1286.66nm/RX1295.56, 1300.05, 1304.58, 1309.14nm	Max Distance	80km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	SOA+PIN
TX Power	+2.0~+6.5dBm	Receiver Sensitivity	< -28dBm
Protocols	QSFP28 MSA	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

100G QSFP28 BIDI

Product Features

 4x25Gb/s LAN WDM Blue or Red Side TOSA, LAN WDM Red or Blue Side ROSA with SOA

 Support 100GBASE-ZR4 for a line rate of 103.125Gbps and OTU4 for a line rate of 111.81Gbps

 Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard

 Simplex LC connector

 Single +3.3V power supply operating

 Temperature range 0°C to 70°C

 RoHS Compliant Part

Applications

 100GBASE-ZR4

 Data Center

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

Cole

Verified Purchase

5.0

2024-08-17

The installation process of the module is very straightforward. After connecting with the LC interface, the device was immediately recognized and connected smoothly, with no compatibility issues.

5 Helpful vote Comments

Thomas

Verified Purchase

5.0

2024-07-14

The results after use are consistent with my expectations, and the quality is very good.

5 Helpful vote Comments

Aaron

Verified Purchase

5.0

2024-06-26

After using it for a while, I found that the Q28-100G23W-BX80 runs stably under high load without any faults, and its performance is very reliable.

5 Helpful vote Comments

Jamie Rivera

Verified Purchase

5.0

2024-06-09

This module is pretty good, it works great and there was no compatibility problem.

5 Helpful vote Comments

Paul

Verified Purchase

5.0

2024-05-24

The transceiver was delivered just two days after placing the order. I am very satisfied with this logistics efficiency.

5 Helpful vote Comments

Wesley

Verified Purchase

5.0

2024-04-26

This 100G BIDI transceiver performs very reliably over a distance of 80 kilometers, with fast data transmission speeds that match the website description. It fully meets our network requirements and is highly recommended!

5 Helpful vote Comments

Dylan Smith

Verified Purchase

5.0

2023-09-29

Compared to other similar products on the market, this transceiver offers a very high cost-performance ratio, with both performance and price being very reasonable. It is a great choice.

5 Helpful vote Comments
