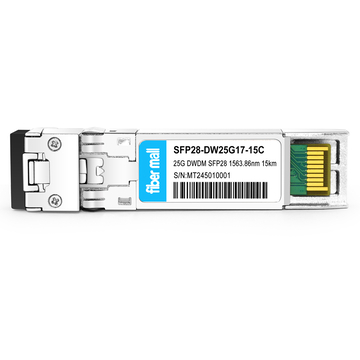

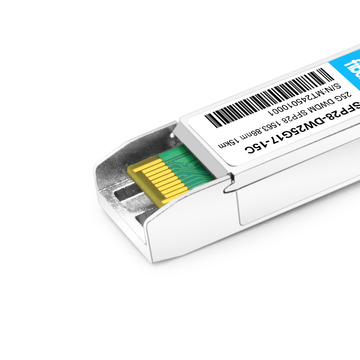

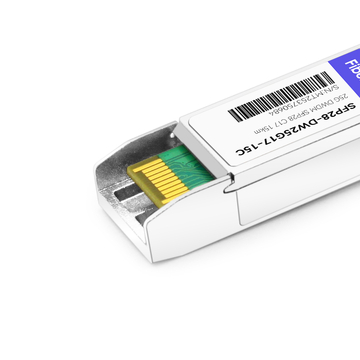

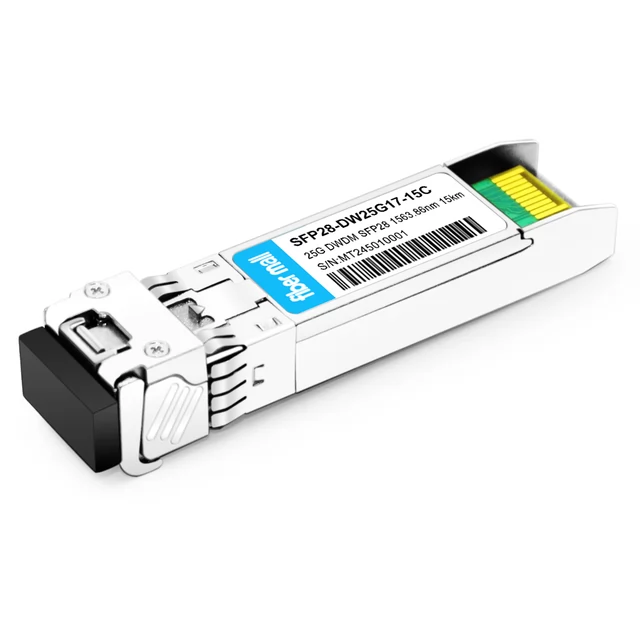

The 25Gigabit SFP28 Transceiver is designed to transmit and receive serial optical data over single-mode optical fiber with 15km. It is compliant with SFF-8431 and SFF-8432. The transmitter converts serial CML electrical data into optical data compliant with the IEEE 802.3ae standard. The receiver converts serial optical data into serial CML electrical data. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
FiberMall P/N | SFP28-DW25G17-15C | Vendor Name | FiberMall |
Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
Wavelength | 1563.86nm | Max Distance | 15km |
Connector | Duplex LC | Transmitter Type | DWDM EML |
Cable Type | SMF | Receiver Type | PIN |
TX Power | 0~+5.0dBm | Receiver Sensitivity | < -19.0dBm |
Protocols | MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
v Compliant to SFP28 MSA
v Fully RoHS Compliant
v All metal housing for superior EMI performance
v Operating data rate up to 25.78Gbps
v High sensitivity APD photodiode and TIA
v LC duplex connector
v Hot pluggable 20pin connector
v Low power consumption <1.8W
v 0 to +70°C operating wide temperature range
v Single +3.3V±5% power supply
v Digital Monitoring SFF-8472 Rev 10.2 compliant
Applications
v 25G Ethernet
v CPRI Option 10
