HPE Aruba S3N96A Compatible 400GBASE LR4 Transceiver | FiberMall

Add to wish

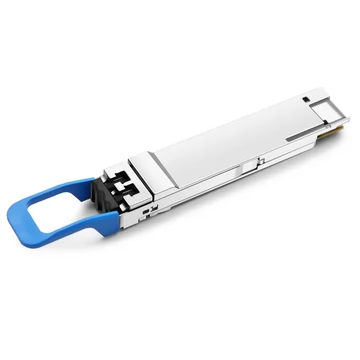

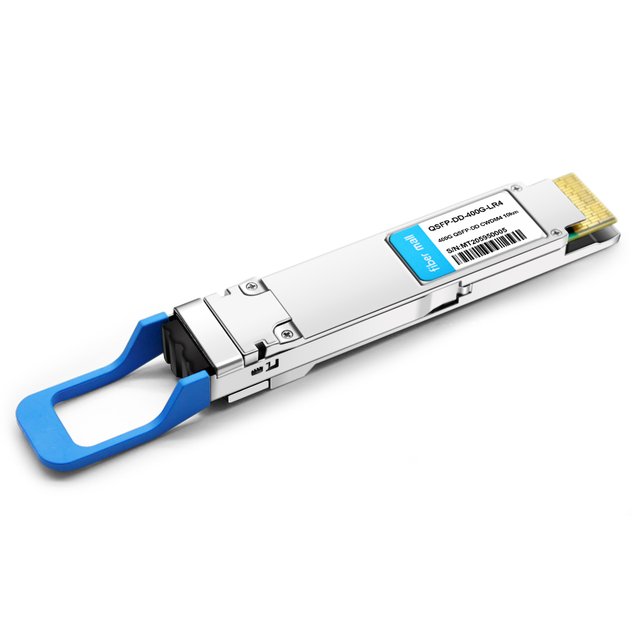

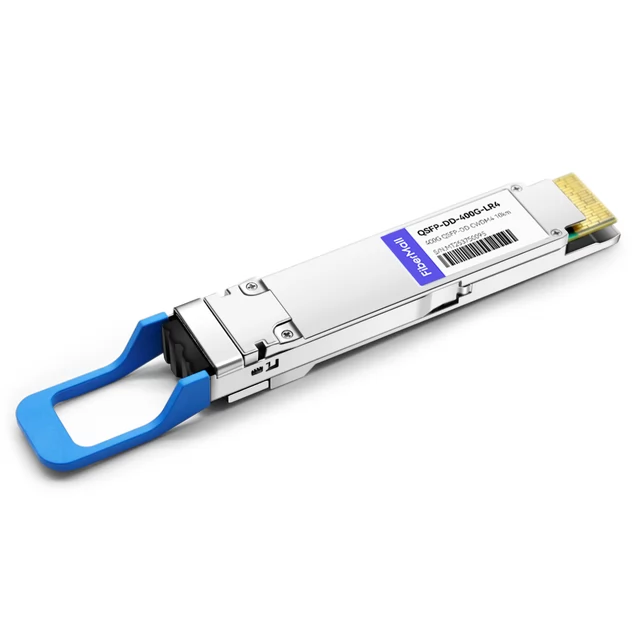

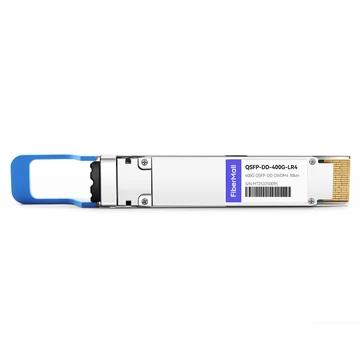

HPE Aruba S3N96A Compatible 400G QSFP-DD LR4 PAM4 CWDM4 10km LC SMF FEC Optical Transceiver Module

Name: HPE Aruba S3N96A Compatible 400G QSFP-DD LR4 PAM4 CWDM4 10km LC SMF FEC Optical Transceiver Module
Brand: fibermall
SKU: 20433
Price: 650.00 USD
Availability: OutOfStock
Rating: 5 (5 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20433

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Ciena; Dell; H3C; HPE Aruba; Juniper

Transceiver Type: S3N93A; R9J30A; S3N95A; R9B42A; S3N96A; S3N94A

FM PN:

QSFP-DD-400G-LR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

HPE Aruba S3N96A Compatible 400G QSFP-DD LR4 PAM4 CWDM4 lanes MUX/DEMUX design 10km Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm LC SMF 10km with FEC DDM)

HPE Aruba S3N96A Compatible QSFP-DD LR4 400G Optics with a PAM4 modulation format provides 10km transmission over single-mode fiber at 1310nm center wavelength. The Transceiver complies with the IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. It uses built-in CWDM mux/demux and duplex LC connectors to aggregate 4 channels with 100G capacity per channel, using 1271 to 1331nm CWDM lasers.

Product Details

HPE Aruba Compatible	S3N96A	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1271nm, 1291nm, 1311nm, 1331nm	Max Distance	10km
Modulation Format	PAM4	Host Required	FEC

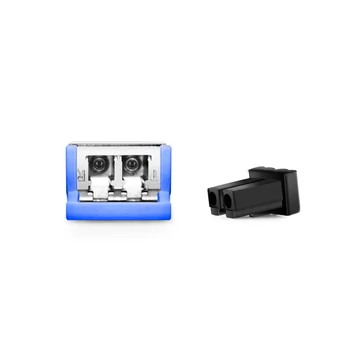

Connector	Duplex LC	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	CWDM EML	Receiver Type	PIN
TX Power	-3.3~+3.5dBm	Receiver Sensitivity	< -7.7dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 12.0W
Protocols	QSFP-DD MSA, 100G Lambda MSA 400G-LR4	Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP-DD-400G-LR4	OSFP-400G-LR4	QSFP-DD-400G-LR8	QSFP-DD-400G-PLR4
Arista Networks Compatible	QDD-400G-LR4	-	-	QDD-400G-PLR4
Vendor Name	FiberMall	FiberMall	FiberMall	FiberMall
Form Factor	QSFP-DD	OSFP	QSFP-DD	QSFP-DD
Max Data Rate	425Gbps	425Gbps	425Gbps	425Gbps
Wavelength	1271nm, 1291nm, 1311nm, 1331nm	1271nm, 1291nm, 1311nm, 1331nm	1273.54nm, 1277.89nm, 1282.26nm 1286.66nm, 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm	1310nm
Max Distance	10km	10km	10km	10km
Modulation Format	PAM4	PAM4	PAM4	PAM4
Host Required	FEC	FEC	FEC	FEC
Connector	Duplex LC	LC	Duplex LC	MTP/MPO-12
Voltage Supply	3.3V	3.3V	3.3V	3.3V
Cable Type	SMF	SMF	SMF	SMF
DDM Support	Yes	Yes	Yes	Yes
Transmitter Type	CWDM EML	CWDM EML	EML	CWDM EML
Receiver Type	PIN	PIN	PIN	PIN
TX Power	-3.3~+3.5dBm	-3.3~+3.5dBm	-2.8~+5.3dBm	-1.4~+4.5dBm
Receiver Sensitivity	< -7.7dBm	< -7.7dBm	< -6.6dBm (SECQ–8dBm)	< -9.1dBm
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	< 12.0W	< 12.0W	< 14.5W	< 12.0W
Protocols	QSFP-DD MSA, 100G Lambda MSA 400G-LR4	OSFP MSA, IEEE 802.3bs	QSFP-DD MSA, IEEE 802.3bs 400GBASE-LR8	QSFP-DD MSA, 100G Lambda MSA 400G-LR4
Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects	400G Ethernet, Telecom Networking, Infiniband Interconnects	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Product Features

v QSFP-DD MSA and RoHS compliant

v 4 CWDM lanes MUX/DEMUX design

v 100G Lambda MSA 400G-LR4 Specification compliant

v 8x 53.125Gb/s electrical interface (400GAUI-8)

v Data Rate 106.25Gbps (PAM4) per channel.

v Maximum power consumption 12W

v Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking
