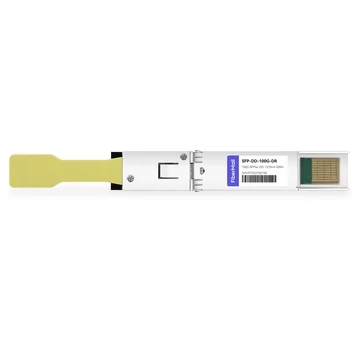

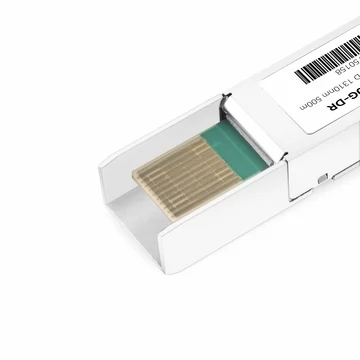

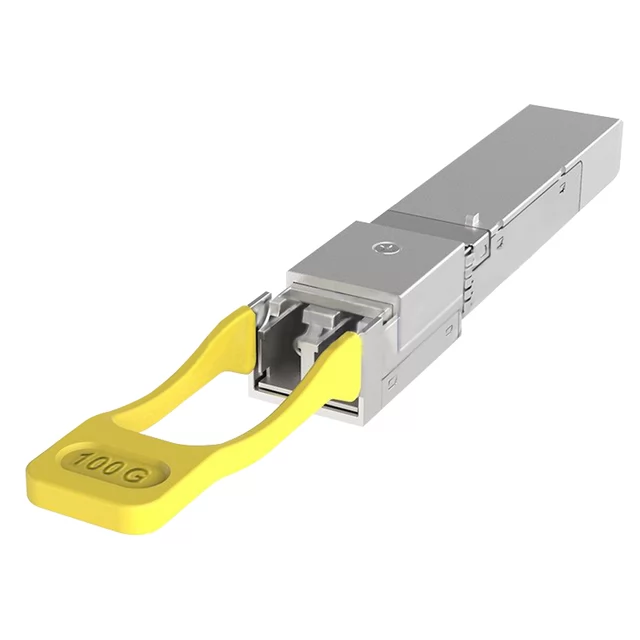

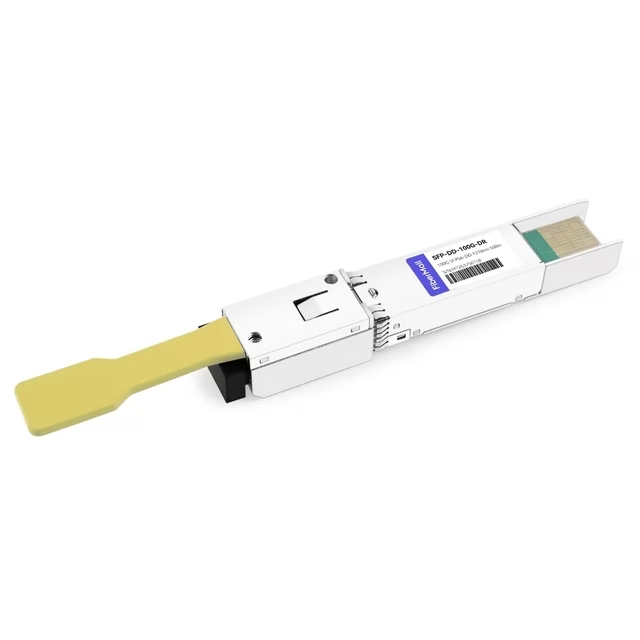

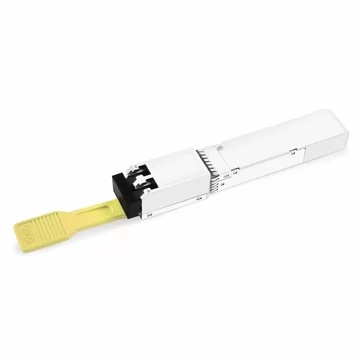

FiberMall SFP-DD transceiver module is designed for 100 Gigabit Ethernet links over 500m single mode fiber. The module incorporates 1 channel optical signal, on 1311nm center wavelength, operating at 100Gbps data rate. This module has 2 independent electrical input/output channels which can convert 2 channels of 50Gbps (PAM4) electrical input data to 1 channel of 100Gbps (PAM4) optical signal and also can convert 1 channel of 100Gbps (PAM4) optical signal to 2 channels of 50Gbps (PAM4) electrical output data. The module's electrical interface complies with the 100GAUI-2 and SFP-DD MSA.
| FiberMall P/N | SFP-DD-100G-DR | Vendor Name | FiberMall |
| Form Factor | SFP56-DD | Max Data Rate | 100Gbps Single Lambda |
| Wavelength | 1310nm | Max Distance | 500m |
| Connector | Duplex LC | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -5.9~+4.0dBm | Receiver Sensitivity | < -3.9dBm |
| DDM Support | YES | FEC Support | YES |
| Protocols | IEEE802.3cd 100GBASE-DR, 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports 100Gbps
v IEEE802.3cd 100GBASE-DR Specification Compliant
v Single 3.3V Power Supply
v Power Dissipation < 3.5W
v Up to 500m over SMF with FEC
v SFP-DD MSA Compliant
v 2x53.125Gbps (PAM4) electrical interface
v LC duplex connector
v Commercial Case Temperature Range of 0°C to 70°C
v I2C Interface with Integrated Digital Diagnostic Monitoring
v Safety Certification: TUV/UL/FDA*1
v RoHS Compliant
Applications
v 100G Ethernet
v Datacenter
