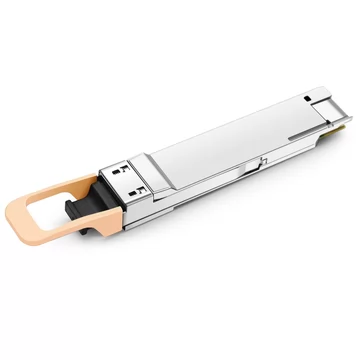

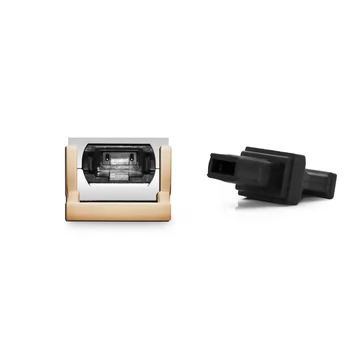

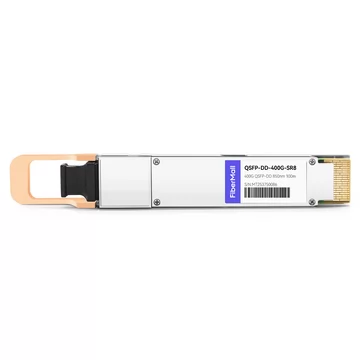

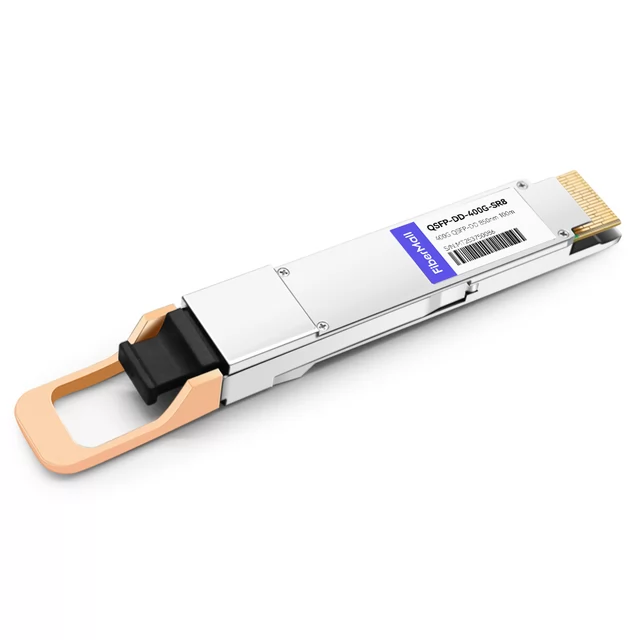

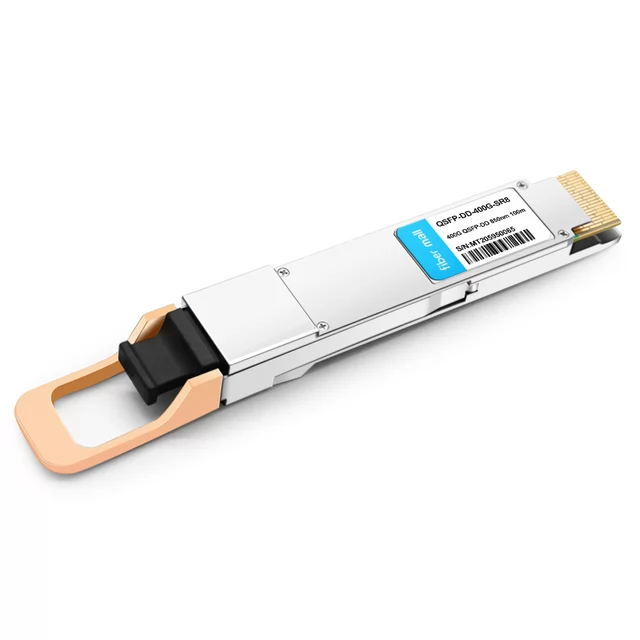

Huawei QSFP-DD-400 400G QSFP-DD SR8 Transceiver | FiberMall

Add to wish

Huawei QSFP-DD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 850nm 100m OM4 MPO-16 DDM MMF Optical Transceiver Module

Name: Huawei QSFP-DD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 850nm 100m OM4 MPO-16 DDM MMF Optical Transceiver Module
Brand: fibermall
SKU: 20249
Price: 180.00 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20249

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; DELL; EdgeCore; H3C; Huawei; Juniper

Transceiver Type: QSFP-DD-400G-SR8; QSFP-DD-400G-DR4; QSFP-DD-400G-FR4; QSFP-DD-400G-SR4; QSFP-DD-400G-LR8

FM PN:

QSFP-DD-400G-SR8

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Huawei QSFP-DD-400G-SR8 Compatible 400G QSFP-DD SR8 Transceiver Module Use for Enterprise Core and Data Center(PAM4, 850nm, 100m, OM4, MPO-16, DDM, MMF)

Huawei QSFP-DD-400G-SR8 Compatible 400G QSFP-DD SR8 supports to 100m over OM4 fiber, 8x26.5625 GBd (PAM4) EI, and uses a wavelength of 850nm via MPO-16 connector. It supports eight electrical interface channels that operate in 50G PAM4 coding mode to produce 400G (8x50G) data rates. The Transceiver is compliant with the IEEE 802.3bs protocol and the 400GAUI-8/CEI-56G-VSR-PAM4 standard. The multiplexing and demultiplexing of eight wavelengths are managed within the device and connect 400G signals from the server side (NIC) to the data center aggregation switch.

Product Details

Huawei Compatible	QSFP-DD-400G-SR8	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	850nm	Max Distance	70m on OM3/100m on OM4
Modulation Format	PAM4	Host Required	FEC
Connector	MTP/MPO-16	Voltage Supply	3.3V
Cable Type	MMF	DDM Support	Yes
Transmitter Type	850nm VCSEL	Receiver Type	PIN
TX Power	-6.5~+4.0dBm	Receiver Sensitivity	<-7.9dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	<12W
Protocols	QSFP-DD MSA, IEEE 802.3bs	Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP-DD-400G-FR4	QSFP-DD-400G-DR4	QSFP-DD-400G-SR4	QSFP-DD-400G-SR8	QSFP-DD-400G-LR8
Huawei Compatible	QSFP-DD-400G-FR4	QSFP-DD-400G-DR4	QSFP-DD-400G-SR4	QSFP-DD-400G-SR8	QSFP-DD-400G-LR8
Vendor Name	FiberMall	FiberMall	FiberMall	FiberMall	FiberMall
Form Factor	QSFP-DD	QSFP-DD	QSFP-DD	QSFP-DD	QSFP-DD
Max Data Rate	425Gbps	425Gbps	-	425Gbps	425Gbps
Wavelength	1271nm, 1291nm, 1311nm, 1331nm	1310nm	850nm	850nm	1273.54nm, 1277.89nm, 1282.26nm 1286.66nm, 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm
Max Distance	2km	500m	60m on OM3/100m on OM4	70m on OM3/100m on OM4	10km
Modulation Format	PAM4	PAM4	PAM4	PAM4	PAM4
Host Required	FEC	FEC	FEC	FEC	FEC
Connector	Duplex LC	MTP/MPO-12	MTP/MPO-12	MTP/MPO-16	Duplex LC
Voltage Supply	3.3V	3.3V	3.3V	3.3V	3.3V
Cable Type	SMF	SMF	MMF	MMF	SMF
DDM Support	Yes	Yes	Yes	Yes	Yes
Transmitter Type	CWDM EML	1310nm EML	-	850nm VCSEL	EML
Receiver Type	PIN	PIN	PIN	PIN	PIN
TX Power	-3.3~+3.5dBm	-2.9~+4.0dBm	-4.6~+4.0dBm	-6.5~+4.0dBm	-2.8~+5.3dBm
Receiver Sensitivity	< -7.7dBm	< -5.9dBm	<-6.4dBm	<-7.9dBm	< -6.6dBm (SECQ–8dBm)
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	< 10.5W	< 10.5W	<9W	<12W	< 14.5W
Protocols	QSFP-DD MSA, 100G Lambda MSA 400G-FR4	QSFP-DD MSA, IEEE 802.3bs 400GBASE-DR4	QSFP-DD MSA, IEEE 802.3bs	QSFP-DD MSA, IEEE 802.3bs	QSFP-DD MSA, IEEE 802.3bs 400GBASE-LR8
Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Data Center Interconnect	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Telecom Networking, Infiniband Interconnects

Product Features

v QSFP-DD MSA compliant

v 8 parallel lanes on 850nm center wavelength

v Compliant to IEEE 802.3bs, RoHS

v 8x53.125Gb/s electrical interface (400GAUI-8)

v Data Rate 53.125Gbps (PAM4) per channel.

v Maximum power consumption 12W

v Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking
