Avago Broadcom AFBR-89CEHZ 100G QSFP28 eSR4 | FiberMall

Add to wish

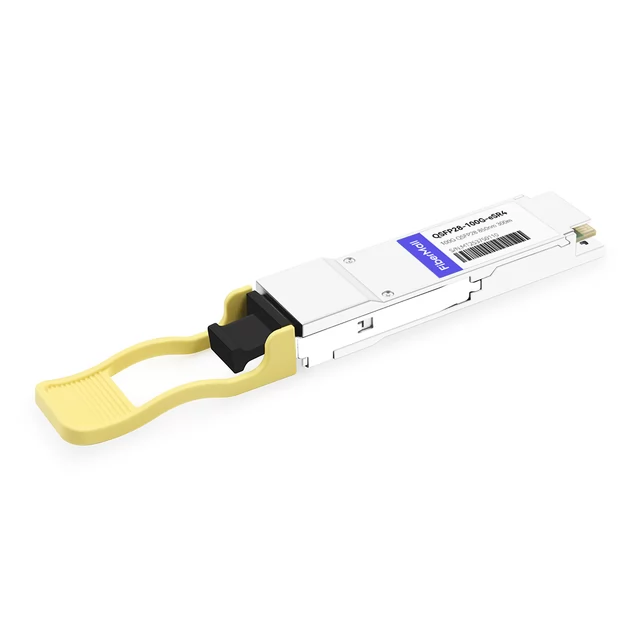

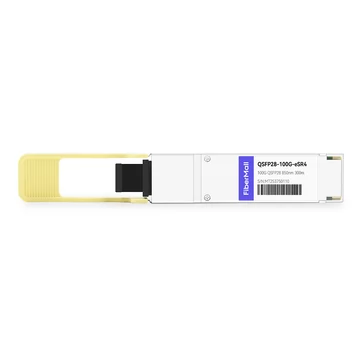

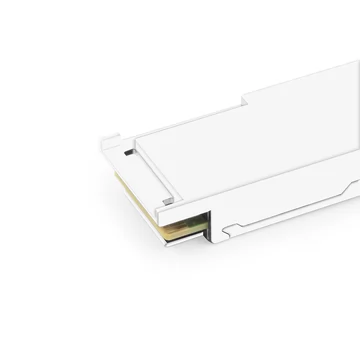

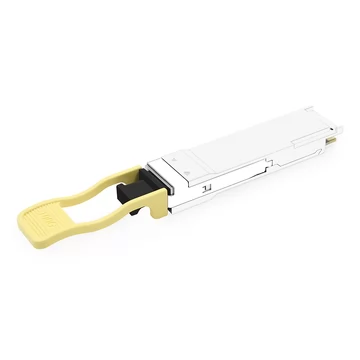

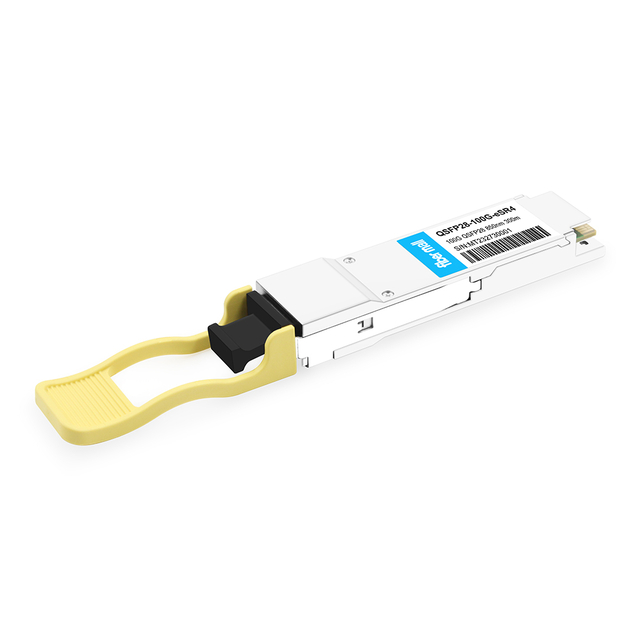

Avago Broadcom AFBR-89CEHZ Compatible 100G QSFP28 eSR4 850nm 200m on OM3/300m on OM4 MTP/MPO MMF DDM Transceiver Module

Name: Avago Broadcom AFBR-89CEHZ Compatible 100G QSFP28 eSR4 850nm 200m on OM3/300m on OM4 MTP/MPO MMF DDM Transceiver Module
Brand: fibermall
SKU: 20213
Price: 75.00 USD
Availability: OutOfStock
Rating: 5 (5 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20213

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

100+ pieces

$ 67.50

Compatible: FiberMall; AVAGO Broadcom; Arista; H3C; Huawei

Transceiver Type: AFBR-89CTDZ; AFBR-89CEHZ; AFCT-89SDDZ

Transmission Mode: Regular

FM PN:

QSFP28-100G-eSR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Avago Broadcom AFBR-89CEHZ Compatible 100G QSFP28 eSR4 Transceiver Module (850nm MMF 300m MTP/MPO DDM)

The 100G QSFP28 SR4 transceiver modules are designed for 100G Ethernet links over multimode fiber. They are compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostic functions are available through the QSFP28 MSA-specified I2C interface.

Product Details

AVAGO Broadcom Compatible	AFBR-89CEHZ	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	850nm	Max Distance	200m on OM3/300m on OM4
Connector	MTP/MPO-12	Transmitter Type	850nm VCSEL
Cable Type	MMF	Receiver Type	PIN
TX Power	-8.4~+2.4dBm	Receiver Sensitivity	< -10.3dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP28-100G-eSR4	QSFP28-100G-SR4	QSFP28-100G-SRBD
AVAGO Broadcom Compatible	AFBR-89CEHZ	AFBR-89CTDZ	AFBR-89BDDZ
Vendor Name	FiberMall	FiberMall	FiberMall
Form Factor	QSFP28	QSFP28	QSFP28
Max Data Rate	103.1Gbps	103.1Gbps	40Gbps/100Gbps
Wavelength	850nm	850nm	850nm & 900nm
Max Distance	200m on OM3/300m on OM4	100m on OM4	100m
Connector	MTP/MPO-12	MTP/MPO-12	Duplex LC
Transmitter Type	850nm VCSEL	850nm VCSEL	850/900nm VCSEL
Cable Type	MMF	MMF	MMF
Receiver Type	PIN	PIN	PIN
TX Power	-8.4~+2.4dBm	-8.4~+2.4dBm	-6.0~+4.0dBm
Receiver Sensitivity	< -10.3dBm	< -10.3dBm	<-8.0dBm
Protocols	100G Ethernet, MSA Compliant	100G Ethernet, MSA Compliant	100G Ethernet, QSFP28 MSA Compliant
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)

100G QSFP28 eSR4

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Datasheet

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

Daniel

Verified Purchase

5.0

2024-08-13

The packaging was intact when it arrived, and the module was well-protected during transportation.

5 Helpful vote Comments

Nolan

Verified Purchase

5.0

2024-07-25

The installation and use of this module were very simple—basically plug and play. Worth buying!

5 Helpful vote Comments

Alex Rivera

Verified Purchase

5.0

2024-07-24

Among 100G transceiver modules, this product offers excellent value for money. It supports long transmission distances at a reasonable price, making it especially suitable for scenarios requiring high bandwidth and low latency.

5 Helpful vote Comments

Cameron Smith

Verified Purchase

5.0

2024-06-17

The installation of this optical module is very simple; just plug it in. It is running smoothly.

5 Helpful vote Comments

Lucas

Verified Purchase

5.0

2024-05-16

The transmission performance of this QSFP28 module is very stable. We tested it with both OM3 and OM4 fibers at distances of 200 meters and 300 meters, and the signal quality remained strong, with almost no delay or packet loss.
