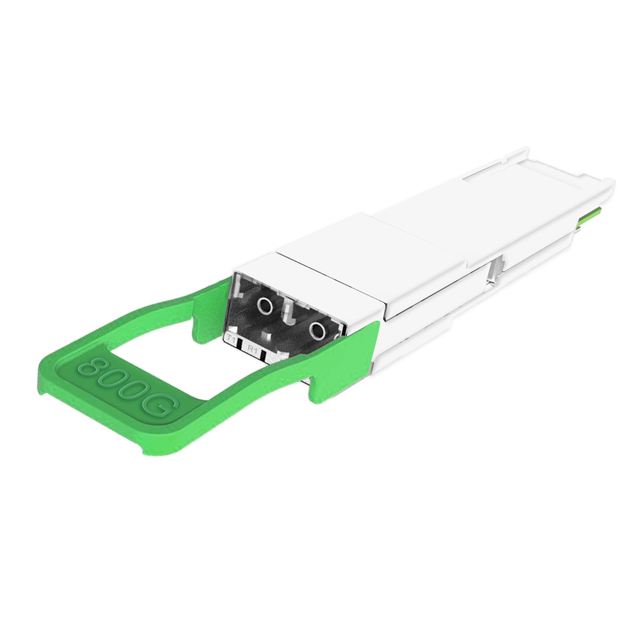

Juniper QDD-2X400G-FR4-P Compatible 800G QSFP-DD800 FR4 (200G per line) PAM4 CWDM 2km DOM Duplex LC SMF Optical Transceiver Module

Juniper QDD-2X400G-FR4-P Compatible 800G QSFP-DD800 FR4 Optical Transceiver Module (SMF, CWDM, 2km, Duplex LC, DDM)

Product Details

Juniper Compatible	QDD-2X400G-FR4-P	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	4x200G, 800GbE
Wavelength	CWDM	Max Distance	2km
Modulation Format	PAM4	Host Required	KP4-FEC
Connector	Duplex LC	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	EML	Receiver Type	PIN
TX Power	-3.1~+4.0dBm	Receiver Sensitivity	<-7.1dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 18W
Protocols	CMIS Rev 5.0, lEEE802.3ck, IEEE 802.3cu, QSFP-DD MSA	Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

---

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

Keep In Stock

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

Coding(EEPROM Programming)

Testing system

Partial test demonstartion

Cisco N9k-C92160YC-X-C

HP ProCurve 5406zl J8697A

ARISTA 7-50QX-32

Juniper EX4300

HW S5700-28X-L1-AC

Brocade VDX 6720

DELL S4048 ON

DATACOM DM4100

H3C LS-5500-28C-S
