{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

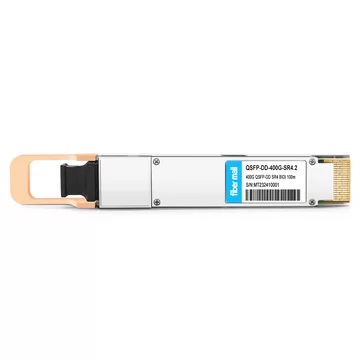

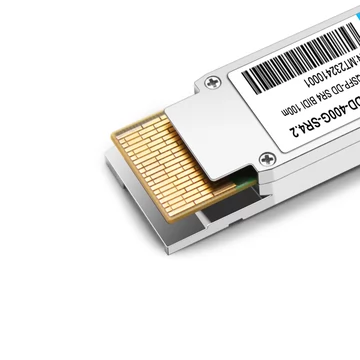

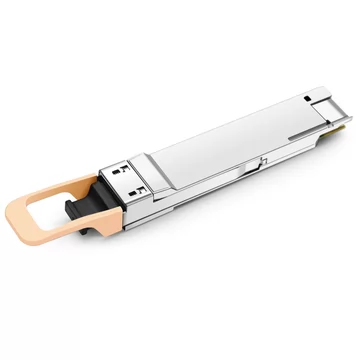

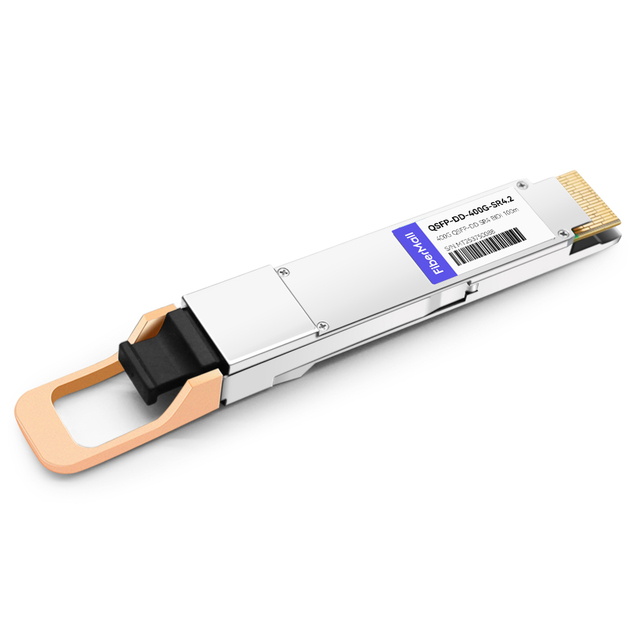

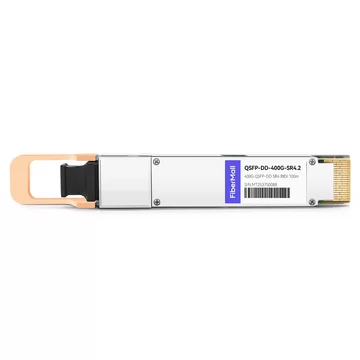

Cisco QDD-400G-SR4.2-BD Compatible 400Gb/s QSFP-DD SR4 BiDi Module, which is capable of supporting Ethernet links of up to 400 Gigabits and up to four 100 Gigabit Ethernet breakout link lengths over OM4 Multimode Fiber (MMF) at distances of up to 100 meters. The module includes four pairs of MMF featuring an MPO-12 UPC connector and complies with the IEEE 802.3bm protocol and the 400GAUI-8/CEI-56G-VSR-PAM4 standards. To transmit the 400 Gigabit Ethernet signal, the module employs two bidirectional wavelengths per fiber across four parallel pairs of threads. Additionally, the module can function as a 4x100GE breakout to QSFP-100G-SR1.2 modules, and Forward Error Correction (FEC) is conducted on the host platform.
| Juniper Compatible | QDD-400G-SR4P2 | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 850nm/910nm | Max Distance | 100m on OM4/150m on OM5 |
| Modulation Format | PAM4 | Host Required | FEC |

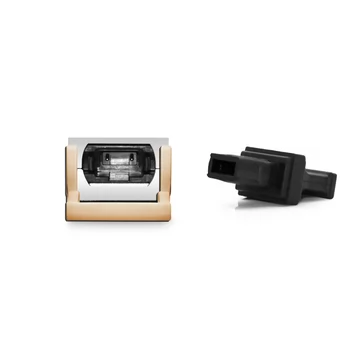

| Connector | MTP/MPO-12 | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Receiver Type | PIN | TX Power | -6.5~+4.0dBm |
| Receiver Sensitivity | < -6.6dBm | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Maximum Power | < 12W | Protocols | QSFP-DD MSA, IEEE 802.3bs |
| Application | 400G Ethernet, Data Center Interconnect, Infiniband HDR, EDR |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
Juniper Compatible
|
QDD-400G-SR4P2
|
QDD-400G-SR4
|
QDD-400G-SR8
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP-DD
|
QSFP-DD
|
QSFP-DD
|
|
Max Data Rate
|
425Gbps
|
-
|
425Gbps
|
|
Wavelength
|
850nm/910nm
|
850nm
|
850nm
|
|
Max Distance
|
100m on OM4/150m on OM5
|
60m on OM3/100m on OM4
|
70m on OM3/100m on OM4
|
|
Modulation Format
|
PAM4
|
PAM4
|
PAM4
|
|
Host Required
|
FEC
|
FEC
|
FEC
|
|
Connector
|
MTP/MPO-12
|
MTP/MPO-12
|
MTP/MPO-16
|
|
Voltage Supply
|
3.3V
|
3.3V
|
3.3V
|
|
Cable Type
|
MMF
|
MMF
|
MMF
|
|
DDM Support
|
Yes
|
Yes
|
Yes
|
|
Receiver Type
|
PIN
|
PIN
|
PIN
|
|
TX Power
|
-6.5~+4.0dBm
|
-4.6~+4.0dBm
|
-6.5~+4.0dBm
|
|
Receiver Sensitivity
|
< -6.6dBm
|
<-6.4dBm
|
<-7.9dBm
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
|
Maximum Power
|
< 12W
|
<9W
|
<12W
|
|
Protocols
|
QSFP-DD MSA, IEEE 802.3bs
|
QSFP-DD MSA, IEEE 802.3bs
|
QSFP-DD MSA, IEEE 802.3bs
|
|
Application
|
400G Ethernet, Data Center Interconnect, Infiniband HDR, EDR
|
400G Ethernet, Data Center Interconnect
|
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
|
