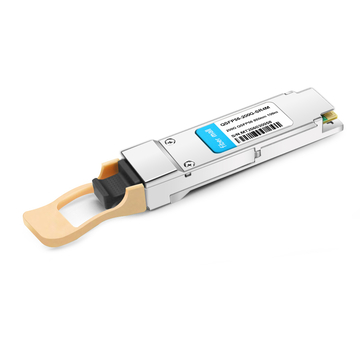

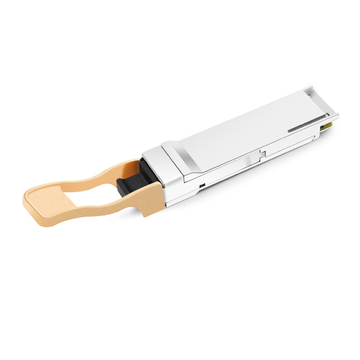

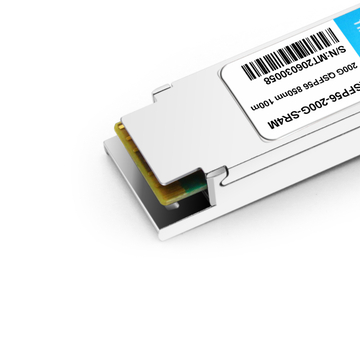

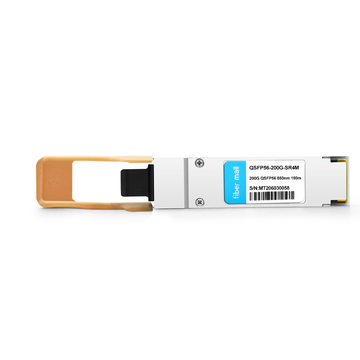

| Dell Compatible | Q56-200G-SR4 | Vendor Name | FiberMall |
| Form Factor | QSFP56 | Max Data Rate | 212.5Gbps |
| Wavelength | 850nm | Max Distance | 70m on OM3/100m on OM4 |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-12 | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| TX Power | -6.5~+4.0dBm | Receiver Sensitivity | < -8.4dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 5W |
| Protocols | QSFP56 MSA, IEEE 802.3bs | Application | 200G InfiniBand HDR,200G Ethernet Data Center Interconnect |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
Dell Compatible
|
Q56-200G-SR4
|
-
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP56
|
QSFP56
|
|
Max Data Rate
|
212.5Gbps
|
212.5Gbps
|
|
Wavelength
|
850nm
|
850nm
|
|
Max Distance
|
70m on OM3/100m on OM4
|
70m on OM3/100m on OM4
|
|
Modulation Format
|
PAM4
|
PAM4
|
|
Host Required
|
FEC
|
FEC
|
|
Connector
|
MTP/MPO-12
|
MTP/MPO-12(APC）
|
|
Voltage Supply
|
3.3V
|
3.3V
|
|
Cable Type
|
MMF
|
MMF
|
|
DDM Support
|
Yes
|
Yes
|
|
Transmitter Type
|
850nm VCSEL
|
850nm VCSEL
|
|
Receiver Type
|
PIN
|
PIN
|
|
TX Power
|
-6.5~+4.0dBm
|
-6.5~+4.0dBm
|
|
Receiver Sensitivity
|
< -8.4dBm
|
< -8.4dBm
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
|
Maximum Power
|
< 5W
|
< 5W
|
|
Protocols
|
QSFP56 MSA, IEEE 802.3bs
|
QSFP56 MSA, IEEE 802.3bs
|
|
Application
|
200G InfiniBand HDR,200G Ethernet
Data Center Interconnect |
200G InfiniBand HDR,200G Ethernet Data Center Interconnect
|
Product Features
v Hot-pluggable QSFP56 Form Factor
v High-speed Electrical Compliant with IEEE802.3bs 200GBASE-SR4 and IEEE 802.3cd
v 4 channels full-duplex transceiver module
v 212.5 Gbit/s aggregate bit rate
v Maximum link length of 70 m OM3, 100 m OM4 with FEC
v Single MPO-12/APC receptacle
v Maximum power dissipation < 5 W
v Supports 200G Ethernet, InfiniBand HDR, data center, and cloud networks
