Dell DWDM-SFP25G-59.79 Compatible 25G DWDM SFP28 C22 | FiberMall

Add to wish

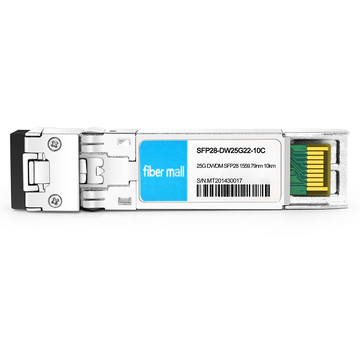

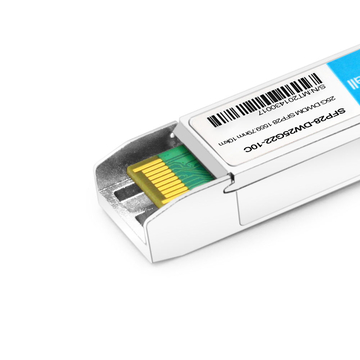

Dell DWDM-SFP25G-59.79 Compatible 25G DWDM SFP28 C22 100GHz 1559.79nm 10km LC SMF DDM Transceiver Module

Name: Dell DWDM-SFP25G-59.79 Compatible 25G DWDM SFP28 C22 100GHz 1559.79nm 10km LC SMF DDM Transceiver Module
Brand: fibermall
SKU: 20026
Price: 300.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20026

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Brocade; Dell; Huawei; Juniper

ITU Channel: CH18; CH19; CH20; CH21; CH22; CH23; CH24; CH25; CH26; CH27; CH28; CH29; CH30; CH31; CH32; CH33; CH34; CH35; CH36; CH37; CH38; CH39; CH40; CH41; CH42; CH43; CH44; CH45; CH46; CH47; CH48; CH49; CH50; CH51; CH52; CH53; CH54; CH55; CH56; CH57; CH58; CH59; CH60; CH61

FM PN:

SFP28-DW25G22-10C

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Dell DWDM-SFP25G-59.79 Compatible 25G DWDM SFP28 C22 100GHz Transceiver Module (1559.79nm 10km LC SMF DDM)

Dell DWDM-SFP25G-59.79 Compatible SFP28 transceiver provides 25GBase-DWDM throughput up to 10km over single-mode fiber (SMF) using a wavelength via an LC duplex connector. Channel 25GBASE-LR SFP28 support 8.5-28.1 Gbps data rate and is designed for 25G Ethernet (25.78 Gbps) and 10G Ethernet (10.31 Gbps) applications. It supports Internet Service Provider (ISP) Access and Metro Networks Data Center Core Networks and Enterprise Campus Networks. It complies with SFF-8431 and SFF-8472 Multi-Source Agreement (MSA), IEEE 802.3 by 25 Gb/s specification.

Product Details

Dell Compatible	DWDM-SFP25G-59.79	Vendor Name	FiberMall
Form Factor	SFP28	Max Data Rate	25.78Gbps
Wavelength	1559.79nm	Max Distance	10km
Connector	Duplex LC	Transmitter Type	DWDM EML
Cable Type	SMF	Receiver Type	PIN
TX Power	-1.0~+6.0dBm	Receiver Sensitivity	< -15.0dBm
Protocols	MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

25G DWDM SFP28

Product Features

v Hot-pluggable SFP+ footprint

v 100GHz ITU, C Band DWDM Cooled EML laser and PIN photodiode

v Up to 10km for SMF transmission

v Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

v Compatible with RoHS

v Single +3.3V power supply

v Real-Time Digital Diagnostic Monitoring

v Application for 25G Ethernet
