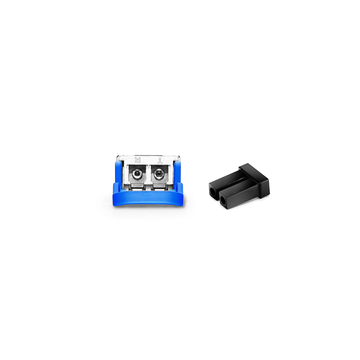

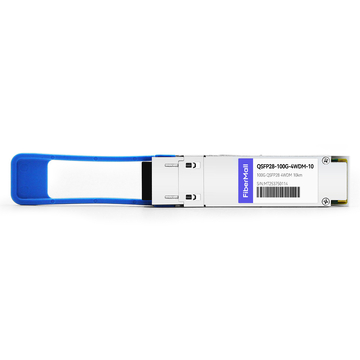

Arista QSFP-100G-XCWDM4 Compatible 100G-4WDM-10 QSFP28 1310nm 10km Duplex LC DDM SMF Optical Transceiver Module

Name: Arista QSFP-100G-XCWDM4 Compatible 100G-4WDM-10 QSFP28 1310nm 10km Duplex LC DDM SMF Optical Transceiver Module
Brand: fibermall
SKU: 19826
Price: 200.00 USD
Availability: OutOfStock
Rating: 5 (5 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19826

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista; Arista Networks; Brocade; DELL; EdgeCore; H3C; Huawei; Juniper Networks; Palo Alto Networks

Transceiver Type: QSFP-100G-XSR4; QSFP-100G-XCWDM4; Q28-100G49-BX30-AR; Q28-100G94-BX30-AR; QSFP-100G-ZR4; QSFP28-100G-ZR4+-AR

Transmission Mode: Regular

FM PN:

QSFP28-100G-4WDM-10

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Arista QSFP-100G-XCWDM4 Compatible 100G-4WDM-10 QSFP28 Optical Transceiver Module Use for Enterprise Core and Data Center(1271nm~1331nm, 10km, LC, DDM, SMF)

The 100G QSFP28 CWDM4 is a transceiver module designed for 10 km optical communication applications. The design is compliant with 100GbASE-LR4 of the IEEE802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standardITU-T G.959.1-2012-02 standard. The module converts 4 input channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes of optical signals and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lane signals and converts them to 4 lanes output electrical data.

Product Details

Arista Compatible	QSFP-100G-XCWDM4	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	111.81Gbps
Wavelength	1271nm,1291nm 1311nm,1331nm	Max Distance	10km
Connector	Duplex LC	Transmitter Type	CWDM4 DML
Cable Type	SMF	Receiver Type	PIN
TX Power	-6~+2.5dBm	Receiver Sensitivity	< -13.0dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

100G QSFP28 CWDM4

Product Features

v 4 lanes MUX/DEMUX design

v Integrated CWDM TOSA / ROSA for up to 10km reach over SMF

v Support 100GBASE-CWDM4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

v Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard

v Single +3.3V power supply operating

v RoHS Compliant Part

v Support FEC(Forward Error Correction)

v Local Area Networks (LAN), Wide Area Networks (WAN), Ethernet switches, and router applications
