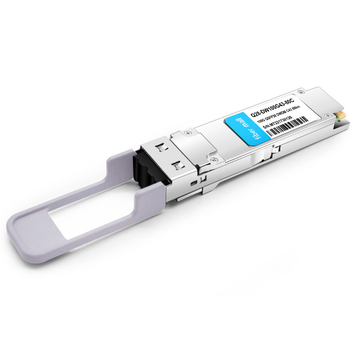

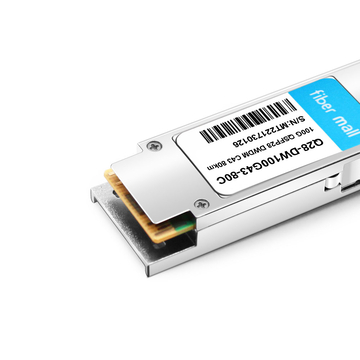

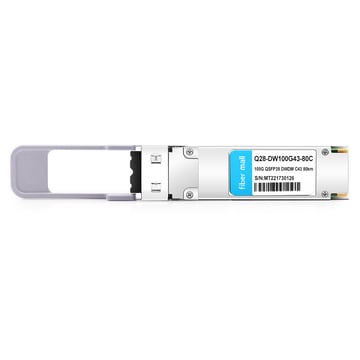

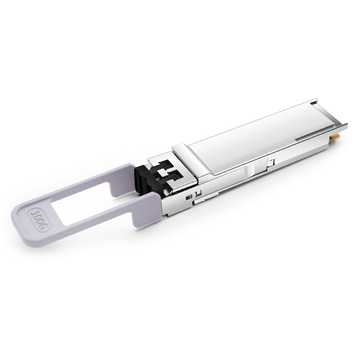

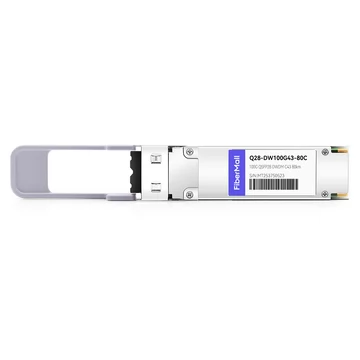

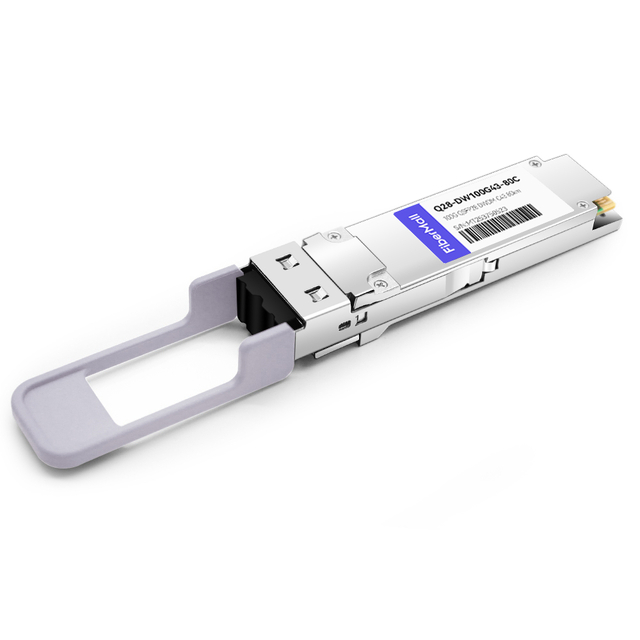

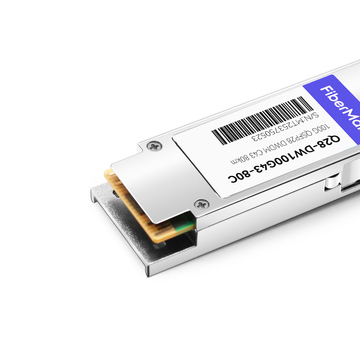

100G DWDM QSFP28 single wave transceiver module enables 80km optical transmission over single-mode fiber (SMF) with EDFA & DCM. It is available in all C-Band wavelengths on the 100GHz DWDM ITU Grid from 1528.77nm to 1565.50nm. The transceiver operates at a data rate of 100Gbps with PAM4 modulation format using duplex LC interfaces. It complies with the OIF CEI-28G-VSR, QSFP28 MSA and SFF-8636 Rev 2.10a standards for 100G amplified DWDM network applications.
| FiberMall P/N | Q28-DW100G43-80C | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 100Gbps |
| Wavelength | 1542.94nm | Max Distance | 80km (With EDFA and DCM) |
| Connector | Duplex LC | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | PIN |
| DDM Support | Yes | Modulation Format | PAM4 |
| TX Power | -7.0~+4.0dBm | Receiver Sensitivity | < -11.0dBm |
| Protocols | QSFP28 MSA, OIF CEI-28G-VSR, SFF-8636 Rev 2.10a | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports 100Gbps
v Available in all C-Band Wavelengths on the 100GHz DWDM ITU Grid
v 80km reach over SMF with EDFA&DCM (dispersion compensation modules)
v QSFP28 MSA Compliant
v SFF-8636 Rev 2.10a Compliant
v 4x25G Electrical Interface

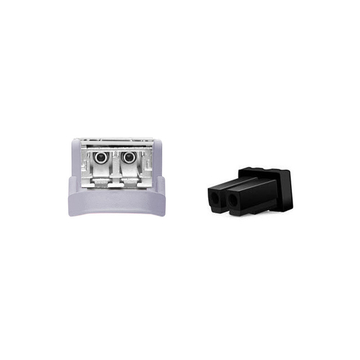

v LC Duplex Connector
v Single 3.3V Power Supply
v Power Dissipation < 5.5W
v Commercial Case Temperature Range of 0°C to 70°C
v I2C Interface with Integrated Digital Diagnostic Monitoring
v Safety Certification: TUV/UL/FDA
v RoHS Compliant
Applications
v 100G Amplified DWDM Networks
v Data Center Interconnects
