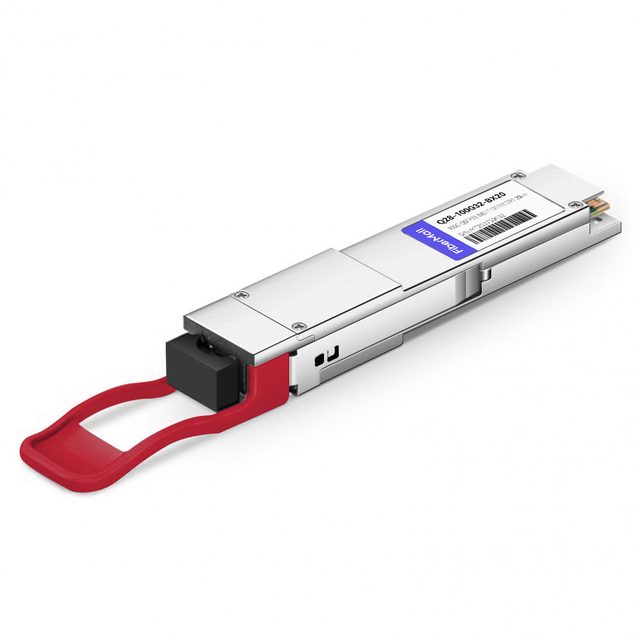

Huawei 100G BIDI QSFP28 TX1311nm Single Lambda 20km | FiberMall

Add to wish

Huawei Compatible 100G QSFP28 BIDI TX1311nm/RX1291nm Single Lambda LC SMF 20km PAM4 DDM Optical Transceiver Module

Name: Huawei Compatible 100G QSFP28 BIDI TX1311nm/RX1291nm Single Lambda LC SMF 20km PAM4 DDM Optical Transceiver Module
Brand: fibermall
SKU: 19554
Price: 600.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19554

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Dell; Extreme; Huawei; Juniper; Mellanox

Transceiver Type: QSFP-100G-SR4; QSFP28-100G-eSR4; QSFP-100G-CWDM4; QSFP28-100G-DR; QSFP28-100G-PSM4; QSFP-100G-eCWDM4; QSFP-100G-FR1; QSFP-100G-LR1; QSFP-100G-BIDI-G2; QSFP-100G-LR4; 02311QUK; QSFP28-100G-BIDI; Q28-100G23-BX10-HW; Q28-100G32-BX10-HW; Q28-100G23-BX20-HW; Q28-100G32-BX20-HW; QSFP-100G-ER4-Lite; Q28-100G49-BX30-HW; Q28-100G94-BX30-HW; Q28-100G49-BX40-HW; Q28-100G94-BX40-HW

Transmission Mode: Single Lambda

FM PN:

Q28-100G32-BX20

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Huawei Compatible 100G QSFP28 BIDI Single Lambda Optical Transceiver Module (TX1311nm/RX1291nm Simplex LC SMF 20km DDM)

100G BIDI QSFP28 optical transceiver uses the wavelengths of TX1311nm/RX1271nm with PAM4 signals for up to 20km transmission over single-mode fiber. The module supports 103.125/106.25Gb/s with PAM4 lane signaling data rate with a simplex LC connector using the QSFP28 footprint. This bidirectional transceiver fully complies with QSFP28 MSA, 802.3cu, SFF-8636 & SFF-8679 specifications in 100GBASE-LR1 BIDI applications. The hot-swapping module features an I2C interface with integrated digital diagnostic monitoring functions.

Product Details

FiberMall P/N	Q28-100G32-BX20	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	106.25Gb/s
Wavelength	TX1311nm/RX1291nm	Max Distance	20km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
DDM Support	Yes	Modulation Format	PAM4
TX Power	-0.2~+6.6dBm	Receiver Sensitivity	< -7.6dBm
Protocols	802.3cu, SFF-8636 & SFF-8679, 100G OTU4, QSFP28 MSA	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

100G QSFP28 BIDI

Product Features

 Supports 100GBASE-LR1-20 BIDI

 Lane signaling rate 106.25Gb/s with PAM4

 Up to 20km transmission on SMF

 4x25.78Gb/s with NRZ electrical interface (CAUI-4)

 QSFP28 MSA package with simplex LC connector

 Single +3.3V power supply

 Support Huawei TX_DIS and RX_LOS for telecom application

 Maximum power consumption 4.5 W

 Compliant to 802.3cu, SFF-8636&SFF-8679 standard, EU Directive 2015/863/EU
