H3C 100G BIDI QSFP28 TX1304nm Single Lambda 40km | FiberMall

Add to wish

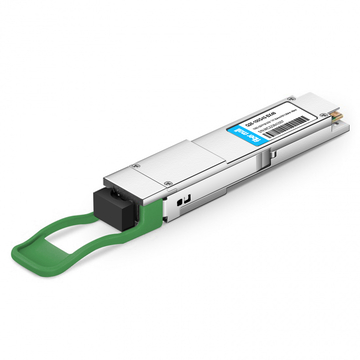

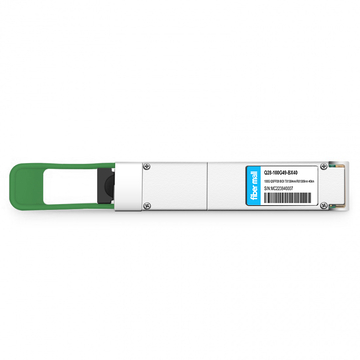

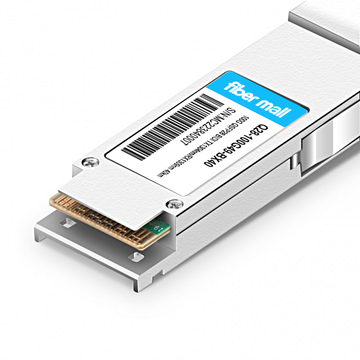

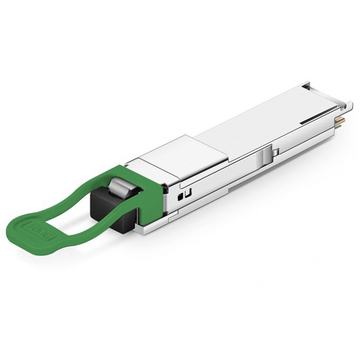

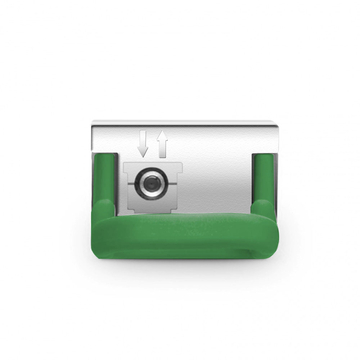

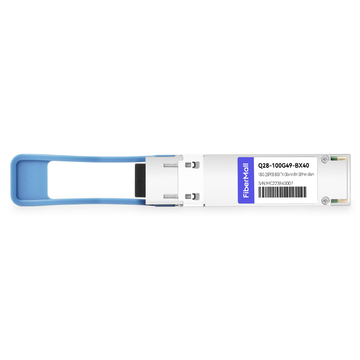

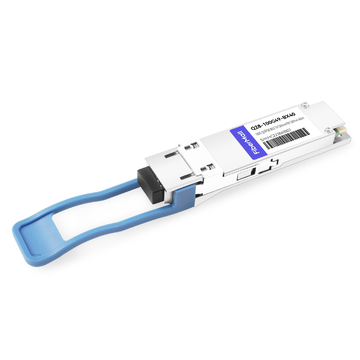

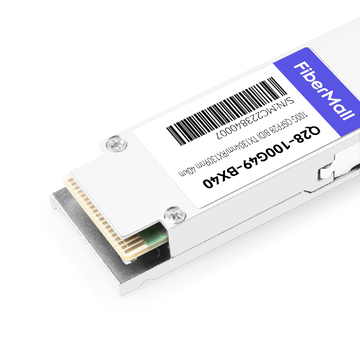

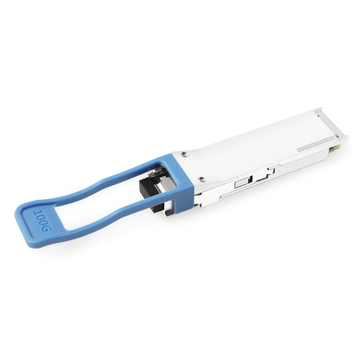

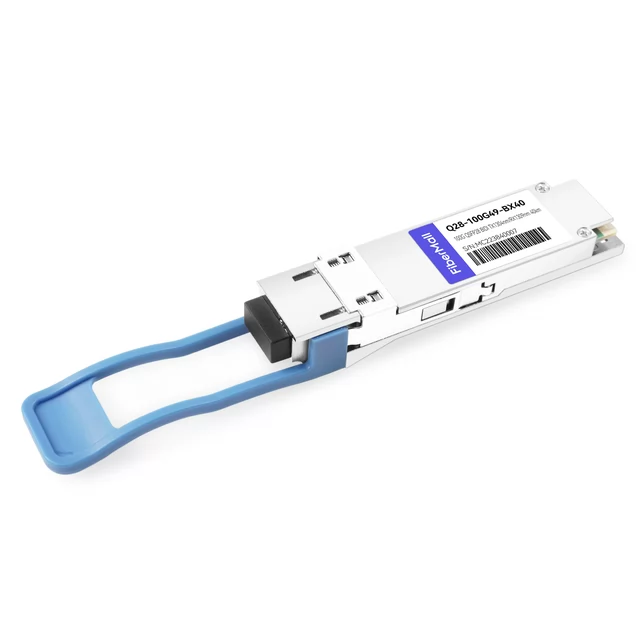

H3C Compatible 100G QSFP28 BIDI TX1304nm/RX1309nm Single Lambda LC SMF 40km PAM4 DDM Optical Transceiver Module

Name: H3C Compatible 100G QSFP28 BIDI TX1304nm/RX1309nm Single Lambda LC SMF 40km PAM4 DDM Optical Transceiver Module
Brand: fibermall
SKU: 19545
Price: 1200.00 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19545

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Dell; H3C; Huawei; Juniper; Mikrotik

Transceiver Type: QSFP-100G-SR4-MM850; QSFP-100G-eSR4-MM850; QSFP-100G-LR4L-WDM1300; QSFP-100G-PSM4-SM1310; QSFP-100G-4WDM-1300; QSFP-100G-LR4-WDM1300; QSFP-100G-SWDM4-MM850; QSFP-100G-BIDI-MM850; Q28-100G49-BX30-HC; Q28-100G94-BX30-HC; Q28-100G49-BX40-HC; Q28-100G94-BX40-HC

Transmission Mode: Single Lambda

FM PN:

Q28-100G49-BX40

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

H3C Compatible 100G QSFP28 BIDI Single Lambda Optical Transceiver Module (TX1304nm/RX1309nm Simplex LC SMF 40km DDM)

100G BIDI QSFP28 optical transceiver uses the wavelengths of TX1304nm/RX1309nm with PAM4 signals for up to 40km transmission over single-mode fiber. The module supports 103.125/106.25Gb/s with PAM4 lane signaling data rate with a simplex LC connector using the QSFP28 footprint. This bidirectional transceiver fully complies with QSFP28 MSA, 802.3cu, SFF-8636 & SFF-8679 specifications in 100GBASE-LR1 BIDI applications. The hot-swapping module features an I2C interface with integrated digital diagnostic monitoring functions.

Product Details

H3C Compatible	Q28-100G49-BX40-HC	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	106.25Gb/s
Wavelength	TX1304nm/RX1309nm	Max Distance	40km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	APD
DDM Support	Yes	Modulation Format	PAM4
TX Power	1.7~+7.1dBm	Receiver Sensitivity	< -13.8dBm
Protocols	802.3cu, SFF-8636 & SFF-8679, 100G OTU4, QSFP28 MSA	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

100G QSFP28 BIDI

Product Features

 Supports 100GBASE-ER1-40 BIDI

 Lane signaling rate 106.25Gb/s with PAM4

 Up to 40km transmission on SMF

 4x25.78Gb/s with NRZ electrical interface (CAUI-4)

 High-speed I/O electrical interface

 Single +3.3V power supply

 Maximum power consumption 4.5 W

 Compliant with 802.3cu, SFF-8636&SFF-8679 standard, EU Directive 2015/863/EU
