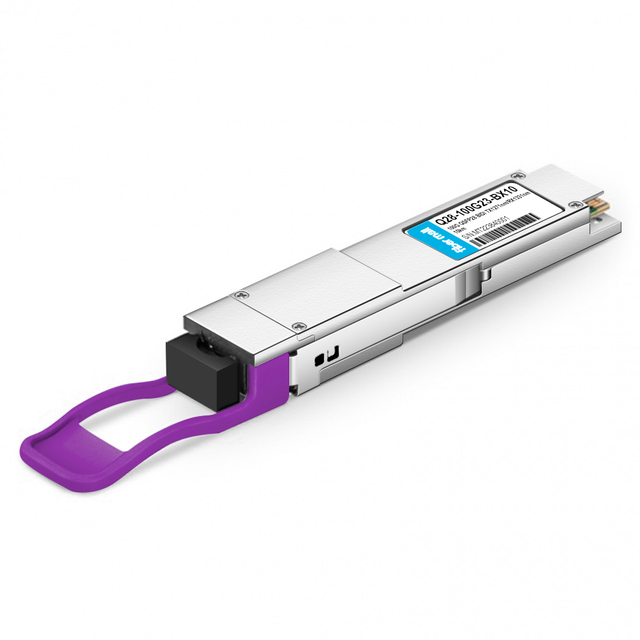

Arista 100G QSFP28 BIDI TX1271nm/RX1331nm 10km Optics | FiberMall

Add to wish

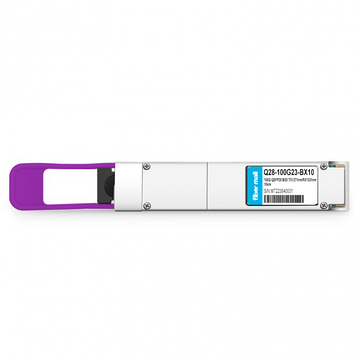

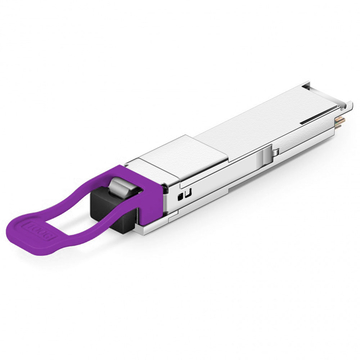

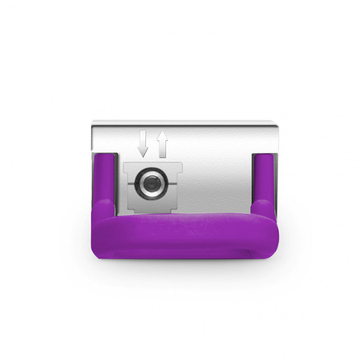

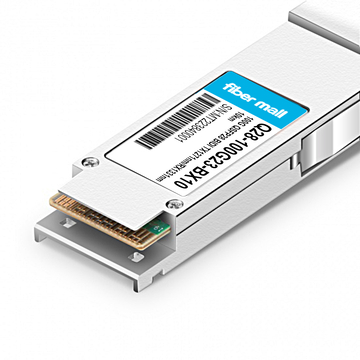

Arista Networks Compatible 100G QSFP28 BIDI TX1271nm/RX1331nm PAM4 Single Lambda LC SMF 10km DDM Optical Transceiver Module

Name: Arista Networks Compatible 100G QSFP28 BIDI TX1271nm/RX1331nm PAM4 Single Lambda LC SMF 10km DDM Optical Transceiver Module
Brand: fibermall
SKU: 19499
Price: 500.00 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19499

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Dell; Extreme; Huawei; Juniper; Mellanox

Transceiver Type: QSFP-100-XSR4; QSFP-100G-SR4; QSFP-100G-CWDM4; QSFP-100G-LRL4; QSFP-100G-DR; QSFP-100G-PSM4; QSFP-100G-4WDM-10; QSFP-100G-FR; QSFP-100G-LR; QSFP-100G-LR4; QSFP-100G-SWDM4; QSFP-100G-SRBD; Q28-100G23-BX10-AN; Q28-100G32-BX10-AN; Q28-100G23-BX20; Q28-100G32-BX20; QSFP-100G-ERL4; QSFP-100G-ER

Transmission Mode: Single Lambda

FM PN:

Q28-100G23-BX10

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Arista Networks Compatible 100G QSFP28 Bidirectional PAM4 Optical Transceiver Module (TX1271nm/RX1331nm Simplex LC SMF 10km DDM)

100G BIDI QSFP28 optical transceiver uses the wavelengths of TX1271nm/RX1331nm with PAM4 signals for up to 10km transmission over single-mode fiber. The module supports 103.125/106.25Gb/s with PAM4 lane signaling data rate with a simplex LC connector using the QSFP28 footprint. This bidirectional transceiver is fully compliant with QSFP28 MSA, 802.3cu, SFF-8636 & SFF-8679 specifications in 100GBASE-LR1 BIDI applications. The hot-swapping module features an I2C interface with integrated digital diagnostic monitoring functions.

Product Details

FiberMall P/N	Q28-100G23-BX10	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	106.25Gb/s
Wavelength	TX1271nm/RX1331nm	Max Distance	10km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
DDM Support	Yes	Modulation Format	PAM4
TX Power	-1.4~+4.5dBm	Receiver Sensitivity	< -6.1dBm
Protocols	802.3cu, SFF-8636 & SFF-8679, 100G OTU4, QSFP28 MSA	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

100G QSFP28 BIDI

Product Features

v Supports 100GBASE-LR1 BIDI

v Lane signaling rate 103.125/106.25/111.8Gb/s with PAM4

v Up to 10km transmission on SMF

v 4x25.78Gb/s with NRZ electrical interface (CAUI-4)

v High-speed I/O electrical interface

v Single +3.3V power supply

v Support Huawei TX_DIS and RX_LOS for telecom application

v Maximum power consumption 4.5 W

v Compliant to 802.3cu, SFF-8636&SFF-8679 standard, EU Directive 2011/65/EU

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

Sean Simpson

United Kingdom

Verified Purchase

5.0

2024-09-21

A comprehensive sales process from Ryan at Fibermall, to ensure compatibility with our target devices. Please to report that these are working really well between 100G enabled MikroTik and Cisco endpoints. Had to use a 5dB attenuator in line, as the link here is fairly short, so a bitt too much intensity on the RX. Very easily solved by checking the Tx and Rx light levels on these pluggables in the target kit. So far very pleased with these. As said in other reviews a fair price and quality appears to be very good.

0 Helpful vote Comments

Jamie Lee

Verified Purchase

5.0

2024-03-05

We've been using this module for several months now, and the performance has remained consistent without any issues.

5 Helpful vote Comments

Roberta O'Neil

Canada

Verified Purchase

5.0

2022-01-22

The pricing is fair. Customer service is excellent. Shipping is prompt.

5 Helpful vote Comments

Nicole Jordan

United States

Verified Purchase

5.0

2021-12-18

I double-checked with the customer service, and was told 100G QSFP28 BIDI Single Lambda 1271nm 10km is workable for me.
