{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

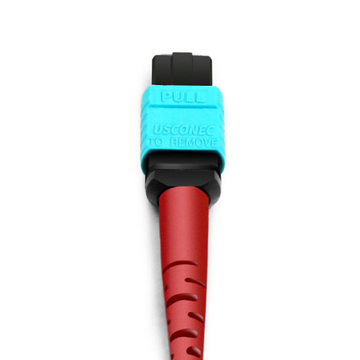

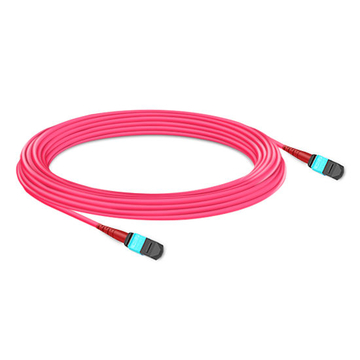

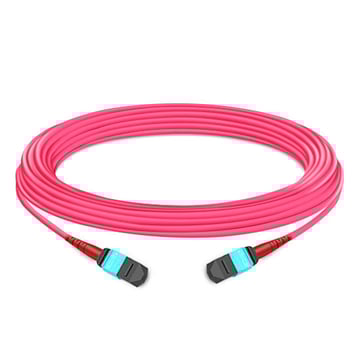

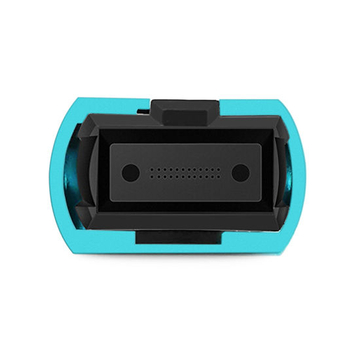

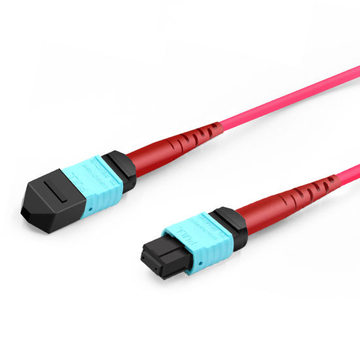

| Connector A | MTP Female (US Conec) | Connector B | MTP Female (US Conec) |
| Fiber Type | OM4 50/125μm Multimode | Wavelength | 850/1300nm |
| Fiber Count | 24 Fibers | Distance | 5m (16ft) |
| Glass Fiber | Corning ClearCurve® | Cable Jacket | Plenum (OFNP) |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km | Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm | Fiber Color | Aqua/Violet |
| Installation Tensile Load | 66 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
Short Lead Time
Professional Service
Worry-Free Guarantee
Premium Quality
Communication and networks products require high stability and reliability. FiberMall adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
8 fibers
MTP-LC Harness Cables
12 fibers
MTP Trunk Cables / MTP-LC Harness Cables
24 fibers
MTP Trunk Cables
