Arista C-O800-O800-1M 800G OSFP NDR Passive DAC 1m | FiberMall

Add to wish

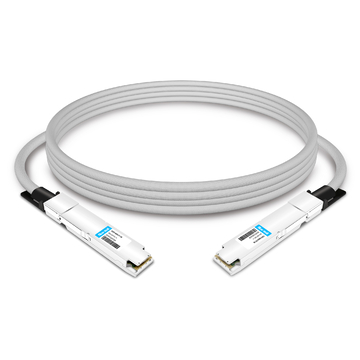

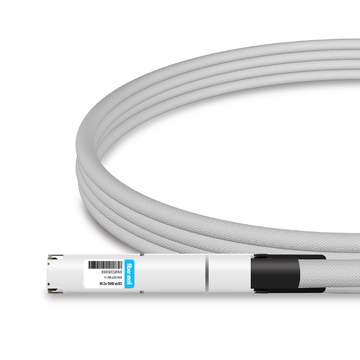

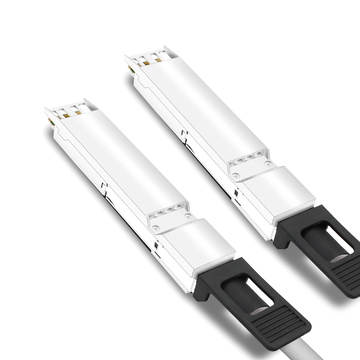

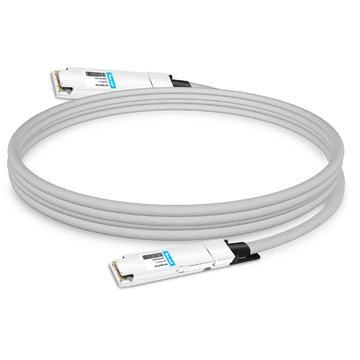

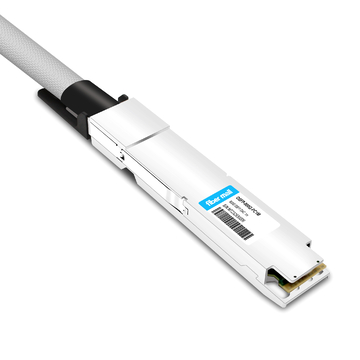

Arista C-O800-O800-1M Compatible 1m (3ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive Direct Attach Copper Cable

Name: Arista C-O800-O800-1M Compatible 1m (3ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive Direct Attach Copper Cable
Brand: fibermall
SKU: 19328
Price: 125.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19328

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall; Arista

Length: 1m (3ft); 2m (7ft)

FM PN:

OSFP-800G-PC1M

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Available for back order. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Arista C-O800-O800-1M Compatible 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive DAC (OSFP to OSFP DAC Cable, Passive 28AWG 1m)

Product Details

Arista Compatible	C-O800-O800-1M	Vendor Name	FiberMall
Connector	OSFP to OSFP	Max Data Rate	800Gb/s
Wire Gages	28AWG	Cable Length	1m (3ft)
Jacket Material	Hair Tail Technology Net	Minimum Bend Radius	72mm
Operation Temperature	0~ 70 °C (32 to 158°F)	Modulation Format	PAM4
Protocols	OSFP MSA, CMIS, ETC 800GBASE-CR8	Application	800G InfiniBand NDR and Ethernet

800G OSFP NDR Switch to Switch

800G OSFP NDR Switch to Switch Links Using 800G OSFP Passive DAC Cable

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing system

FiberMall's OSFP series products incorporate advanced technology and design, boasting advantages such as high efficiency, density, reliability, and low power consumption. They stand as an ideal choice for high-speed data transmission.

Switch Introduction

NVIDIA Quantum-2 Switches

Network Card Introduction

Network Card List

Notes:

1. 100G can be supported as either 4x25G NRZ or 2x50G.

2. 200G can be supported as either 4x50G or 2x100G.

3. 400G is supported as 4x100G.

4. QSFP112 is backwards compatible with QSFP56 and QSFP28.

Switch to Switch (NDR) - Optics

Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper

Switch to Switch (NDR) - HDR&EDR

Switch to HCA

Switch to HCA (NDR) - Optics

Switch to HCA (NDR) - Copper

Switch-to-DGX H100 GPU Systems

	OSFP-800G-PC1M-FLT	OSFP-800G-PC1M
NVIDIA Compatible	MCP4Y10-N001-FLT	-
Vendor Name	FiberMall	FiberMall
Connector	OSFP to OSFP	OSFP to OSFP
Max Data Rate	800Gb/s	800Gb/s
Wire Gages	28AWG	28AWG
Cable Length	1m (3ft)	1m (3ft)
Jacket Material	Hair Tail Technology Net	Hair Tail Technology Net
Minimum Bend Radius	72mm	72mm
Operation Temperature	0~ 70 °C (32 to 158°F)	0~ 70 °C (32 to 158°F)
Modulation Format	PAM4	PAM4
Protocols	OSFP MSA, CMIS, ETC 800GBASE-CR8	OSFP MSA, CMIS, ETC 800GBASE-CR8
Application	800G InfiniBand NDR and Ethernet	800G InfiniBand NDR and Ethernet
