The 200G Muxponder service card supports mapping 20x10G optical signals received from the client into an OTUC2 signal and interconverting the OTUC2 signal to WDM optical signals with wavelengths compliant with ITU-T standards. Pluggable CFP2 DCO is used on the line side to realize ultra-long-distance transmission using advanced technologies such as coherent detection

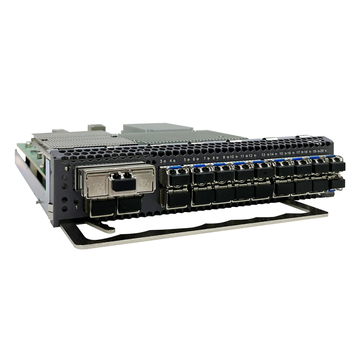

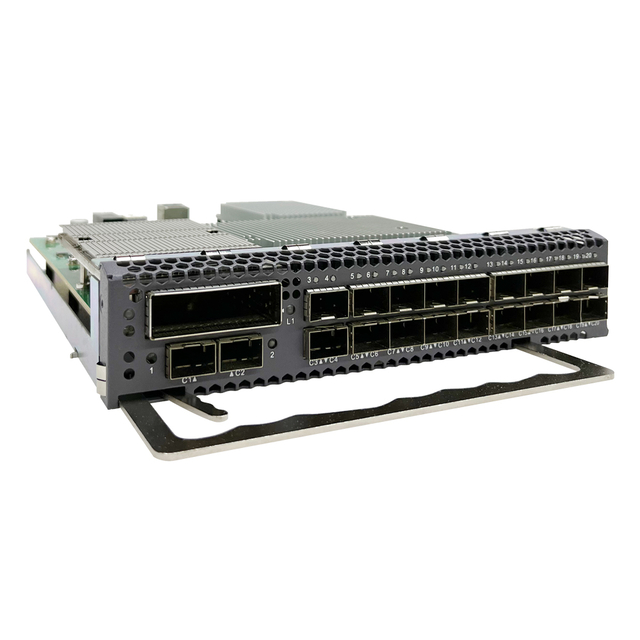

200G Muxponder Service Card
Function
Support 20x10G service signal signals mapping to 1 OTUC2 signal
Slot number
1/2 slot
Line side
Support 1 CFP2-DCO module hot-pluggable
Client-side
Support 20 SFP+ modules hot-pluggable
OTN function
Frame format and overhead handling using ITU-T G709 recommendations
ODUk (k=2, 2e, 4, C2) layer: support PM and other functions
OTUk (k=C2) layer: support SM functions
SRWavelength adjustable
The range covers 191.35 THz ~ 196.1thz
Supports 50GHz, 75 GHz, and 100 GHz adjustable
Support services
10GE, STM-64, 10GE WAN, OTU2
Time delay measurement
Online delay measurement based on ODU layer
Loopback
Support line side and client side loopbacks
LLDP
Ethernet Support
Performance monitoring and alarm monitoring
Support OTN performance monitoring and alarm monitoring functions
Support optical module temperature, current, optical power monitoring, etc.
Support Ethernet RMON monitoring
Support Telemetry
Product Details
Quality Assurance
Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
FM-OTN Systems
Save Optical Fiber In Huge Bandwidth Need
40 channels system
Access capacity:80G
40 channels system
Access capacity:160G
40/48/80/96 channels system
Access capacity
400G ➨ 960G➨ 4T➨ 9.6T
WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber
FiberMall FM-OTN System Includes the Following Two Parts
Customized Solutions, Self-help Selection of Our FM-OTN System Function Modules
OTN Platform
1 Main Chassis 1U/2U/5U
2 Power Supply Module
3 Network Management Unit
OTN Function Module
Transponder (OEO)
Amplifier Modules
Dispersion Compensation
Une Protection
our advantages
Short Lead Time
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability
Practical Application Demonstration
As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.
