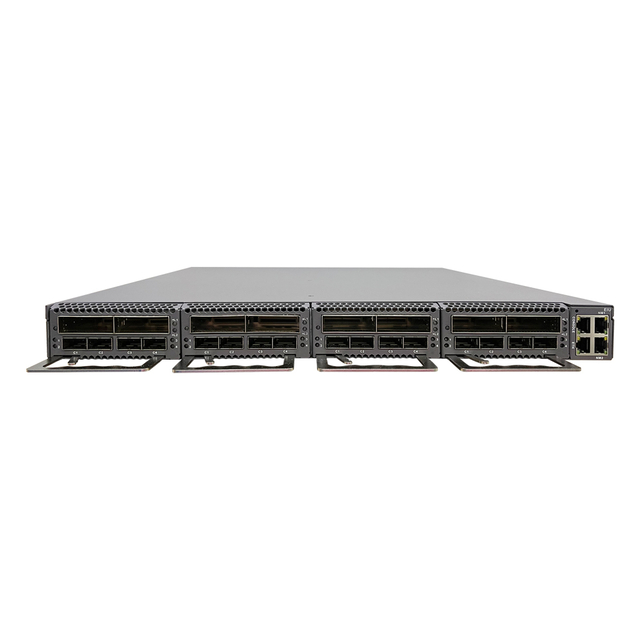

1.6T 1U OTN/DCI WDM Muxponder System | FiberMall

Add to wish

DCI BOX Chassis, 19", 1U: 4 equal 1/4 slots, also compatible with 2 equal 1/2 slots, including front interface board, support provides 1 CONSOLE and 3 ETH management ports, 2 Standard CRPS power supplies: 220V AC or 48V DC optional

Name: DCI BOX Chassis, 19", 1U: 4 equal 1/4 slots, also compatible with 2 equal 1/2 slots, including front interface board, support provides 1 CONSOLE and 3 ETH management ports, 2 Standard CRPS power supplies: 220V AC or 48V DC optional
Brand: fibermall
SKU: 40107
Price: 3600.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:40107

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Housing: 1U

FM PN:

FM-1600

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

1U Chassis Supports an optoelectronic integrated WDM transmission platform designed for Data Centre Interconnection (DCI)

Parameter		Description
Chassis	Dimensions (H x W x D)	1U: 44 mm (H)×444 mm (W)×490 mm (D)
	Maximum capacity	1.6Tbit/s
	Number of service card slots	4
	Applicable cabinets	19" cabinet 800mm or deeper
Line-side port	Rate	200G(PDM QPSK) 200G(PDM 8QAM) 200G(PDM 16QAM) 400G(PDM 16QAM)
Line-side port	Optical module	Pluggable CFP2, wavelength adjustable
Client-side port	Service type	10GE, 100GE, 100GE FlexE(Unware), OTU2, OTU4, STM-64, 10GE WAN
Client-side port	Optical module	Pluggable SFP+ Pluggable QSFP28
Max. number of wavelengths		Fixed grid: 96 wavelengths @50 GHz
Channel spacing		Fixed grid: 50 GHz/75 GHz/100 GHz/150 GHz
Central frequency range		191.35 GHz～196.1 GHz
Central wavelength range		1528.77 nm～1566.73 nm
Protection function		Optical line protection (OLP) Optical multiplexed segment protection (OMSP) Optical channel protection (OCHP)
Network management		Supports main controller 1+1 backup Supports CLI, NETCONF, and B/S-based GUI management platform Support OSC-based DCN communication
Power supply	Back-up	Standard CRPS power supply 1+1 backup
	AC	Rated voltage range: 100VAC～130VAC(50/60Hz) 200VAC～240VAC(50/60Hz) Max. voltage range:90V AC～264VAC(45Hz~65Hz)
	HVDC	Rated voltage range: 240V HVDC Max. voltage range: 192 V HVDC～288 V HVD
	DC	Rated voltage range:-48 V DC/-60 V DC Max. voltage range:-40V DC～-72V DC
Heat dissipation		Front inlet air and rear outlet air 1+1 Fan units backup
Typical power consumption		<550W(Electric layer full match)
Environment	Operating temperature	Short-term:-5℃~+45℃ Long-term:0℃~40℃
	Storage temperature	40℃~+70℃
	Humidity	5%～95%(no condensation)

Product Details

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

FM-OTN Systems

Save Optical Fiber In Huge Bandwidth Need

: 40 channels system; Access capacity:80G

: 40 channels system; Access capacity:160G

: 40/48/80/96 channels system; Access capacity; 400G ➨ 960G➨ 4T➨ 9.6T

WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber

FiberMall FM-OTN System Includes the Following Two Parts

Customized Solutions, Self-help Selection of Our FM-OTN System Function Modules

OTN Platform

: 1 Main Chassis 1U/2U/5U

: 2 Power Supply Module

: 3 Network Management Unit

OTN Function Module

: Transponder (OEO)

: Amplifier Modules

: Dispersion Compensation

: Une Protection

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Practical Application Demonstration

As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.

OTN DCI System

Matching Products

Pictures	ID#	Description	Price	Stock	Add to Cart
	460588	2x400G Muxponder Service Card: 8x100G QSFP28 to 2x400G CFP2, 2 Slot	$ 4,725.00 / piece	Available	{"pid":"460588","picid":"1178063","name":"2x400G Muxponder Service Card: 8x100G QSFP28 to 2x400G CFP2, 2 Slot","keyword":"Muxponder Service Card","picurl":"https:\/\/www.fibermall.com\/photo\/p1178063-200x200-2x400g-muxponder-service-card-8x100g-qsfp28-to-2x400g-cfp2-2-slot.jpg","test_url":"\/test\/www.fibermall.com\/sale-460588-400g-muxponder-service-card-8-qsfp28-cfp2.htm","min_price":"4725.00","max_price":"4725.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"The 2x400G Muxponder service card supports mapping 8x100G optical signals received on the client side into 2 OTUC4 signals and interconverting OTUC4 signals with optical signals of WDM wavelengths con","skulist":[{"pskuid":"152178","cid":"605","pid":"460588","sku":"40109","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"4725.00","strike_price":"0.00","innercode":"","addtime":"2023-10-29 18:56:59","uptime":"2023-10-29 19:56:59","status":"0"}],"link":"\/sale-460588-400g-muxponder-service-card-8-qsfp28-cfp2.htm","displayed_price":{"unit_prefix":"$","value":"4,725.00","min":"4,725.00","max":"4,725.00","usd_min":"4725.00","usd_max":"4725.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"3","datemax":"5","unit_price":"4,725.00","subtotal":4725},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"3","datemax":"5","unit_price":"4,725.00","subtotal":4725},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"3","datemax":"5","unit_price":"4,725.00","subtotal":4725}]}
	460592	200G Muxponder Service Card: 20x10G SFP+ to 1x200G CFP2, 2 Slot	$ 8,835.00 / piece	Available	{"pid":"460592","picid":"1178061","name":"200G Muxponder Service Card: 20x10G SFP+ to 1x200G CFP2, 2 Slot","keyword":"Muxponder Service Card","picurl":"https:\/\/www.fibermall.com\/photo\/p1178061-200x200-200g-muxponder-service-card-20x10g-sfp-to-1x200g-cfp2-2-slot.jpg","test_url":"\/test\/www.fibermall.com\/sale-460592-200g-muxponder-service-card-sfp-cfp2.htm","min_price":"8835.00","max_price":"8835.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"The 200G Muxponder service card supports mapping 20x10G optical signals received from the client into an OTUC2 signal and interconverting the OTUC2 signal to WDM optical signals with wavelengths compl","skulist":[{"pskuid":"152182","cid":"605","pid":"460592","sku":"40112","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"8835.00","strike_price":"0.00","innercode":"","addtime":"2023-10-29 22:38:38","uptime":"2023-10-29 23:38:38","status":"0"}],"link":"\/sale-460592-200g-muxponder-service-card-sfp-cfp2.htm","displayed_price":{"unit_prefix":"$","value":"8,835.00","min":"8,835.00","max":"8,835.00","usd_min":"8835.00","usd_max":"8835.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835}]}
	460591	2x200G Muxponder Service Card: 4x100G QSFP28 to 2x200G CFP2, 1 Slot	$ 3,285.00 / piece	Available	{"pid":"460591","picid":"1178069","name":"2x200G Muxponder Service Card: 4x100G QSFP28 to 2x200G CFP2, 1 Slot","keyword":"Muxponder Service Card","picurl":"https:\/\/www.fibermall.com\/photo\/p1178069-200x200-2x200g-muxponder-service-card-4x100g-qsfp28-to-2x200g-cfp2-1-slot.jpg","test_url":"\/test\/www.fibermall.com\/sale-460591-2x200g-muxponder-service-card-4qsfp28-cfp2.htm","min_price":"3285.00","max_price":"3285.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"The 200G Muxponder service card supports mapping 4x100G optical signals received from the client into 2 OTUC2 signals and interconverting the OTUC2 signals to WDM optical signals with wavelengths","skulist":[{"pskuid":"152181","cid":"605","pid":"460591","sku":"40111","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"3285.00","strike_price":"0.00","innercode":"","addtime":"2023-10-29 22:13:03","uptime":"2023-10-29 23:13:03","status":"0"}],"link":"\/sale-460591-2x200g-muxponder-service-card-4qsfp28-cfp2.htm","displayed_price":{"unit_prefix":"$","value":"3,285.00","min":"3,285.00","max":"3,285.00","usd_min":"3285.00","usd_max":"3285.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285}]}
	460590	200G Muxponder Service Card: 2x100G QSFP28 or 1x100G QSFP28 and 10x10G SFP+ to 1x200G CFP2, 2 Slot	$ 8,835.00 / piece	Available	{"pid":"460590","picid":"1178067","name":"200G Muxponder Service Card: 2x100G QSFP28 or 1x100G QSFP28 and 10x10G SFP+ to 1x200G CFP2, 2 Slot","keyword":"Muxponder Service Card","picurl":"https:\/\/www.fibermall.com\/photo\/p1178067-200x200-200g-muxponder-service-card-2x100g-qsfp28-or-1x100g-qsfp28-and-10x10g-sfp-to-1x200g-cfp2-2-slot.jpg","test_url":"\/test\/www.fibermall.com\/sale-460590-200g-muxponder-service-card-2qsfp28-sfp.htm","min_price":"8835.00","max_price":"8835.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"The 200G Muxponder service card supports mapping the 20x10G optical signal received on the client side to a 1 OTUC2 signal and interconverting the OTUC2 signal with the optical signal of WDM wavelengt","skulist":[{"pskuid":"152180","cid":"605","pid":"460590","sku":"40110","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"8835.00","strike_price":"0.00","innercode":"","addtime":"2023-10-29 21:55:19","uptime":"2023-10-29 22:55:19","status":"0"}],"link":"\/sale-460590-200g-muxponder-service-card-2qsfp28-sfp.htm","displayed_price":{"unit_prefix":"$","value":"8,835.00","min":"8,835.00","max":"8,835.00","usd_min":"8835.00","usd_max":"8835.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835}]}
	460587	400G Muxponder Service Card: 4x100G QSFP28 to 1x400G CFP2, 1 Slot	$ 3,285.00 / piece	Available	{"pid":"460587","picid":"1178065","name":"400G Muxponder Service Card: 4x100G QSFP28 to 1x400G CFP2, 1 Slot","keyword":"Muxponder Service Card","picurl":"https:\/\/www.fibermall.com\/photo\/p1178065-200x200-400g-muxponder-service-card-4x100g-qsfp28-to-1x400g-cfp2-1-slot.jpg","test_url":"\/test\/www.fibermall.com\/sale-460587-400g-muxponder-service-card-4-qsfp28.htm","min_price":"3285.00","max_price":"3285.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"The 400G Muxponder service card supports mapping 4x100G optical signals received from the client into one OTUC4 signal and interconverting the OTUC4 signal to WDM optical signals with wavelengths comp","skulist":[{"pskuid":"152177","cid":"605","pid":"460587","sku":"40108","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"3285.00","strike_price":"0.00","innercode":"","addtime":"2023-10-29 18:44:25","uptime":"2023-10-29 19:44:25","status":"0"}],"link":"\/sale-460587-400g-muxponder-service-card-4-qsfp28.htm","displayed_price":{"unit_prefix":"$","value":"3,285.00","min":"3,285.00","max":"3,285.00","usd_min":"3285.00","usd_max":"3285.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285}]}
	459143	CFP2-400G-DCO 400G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module	$ 8,000.00 / piece	Available	{"pid":"459143","picid":"1174924","name":"CFP2-400G-DCO 400G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module","keyword":"Coherent Transceivers#CFP2 DCO#400G Coherent","picurl":"https:\/\/www.fibermall.com\/photo\/p1174924-200x200-cfp2-400g-dco-400g-coherent-cfp2-dco-c-band-tunable-optical-transceiver-module.jpg","test_url":"\/test\/www.fibermall.com\/sale-459143-cfp2-dco-400g-coherent-transceiver.htm","min_price":"8000.00","max_price":"8000.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"100G\/200G\/400G Coherent CFP2 DCO Transceiver Module (DWDM C Band 50GHz Grid: 191.15-196.1GHz)The 400G CFP2 DCO is a portfolio of digital coherent optical transceiver (or transponder) modules with up t","skulist":[{"pskuid":"150735","cid":"605","pid":"459143","sku":"18292","psvid1":"251081","psvid2":"251082","psvid3":"0","psvid4":"0","left_num":"0","price":"8000.00","strike_price":"0.00","innercode":"6972913892307","addtime":"2022-01-25 01:02:10","uptime":"2022-10-27 20:25:55","status":"0"}],"link":"\/sale-459143-cfp2-dco-400g-coherent-transceiver.htm","displayed_price":{"unit_prefix":"$","value":"8,000.00","min":"8,000.00","max":"8,000.00","usd_min":"8000.00","usd_max":"8000.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"1","datemax":"5","unit_price":"8,000.00","subtotal":8000},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"1","datemax":"5","unit_price":"8,000.00","subtotal":8000},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"1","datemax":"5","unit_price":"8,000.00","subtotal":8000}]}
	459142	CFP2-200G-DCO 200G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module	$ 7,000.00 / piece	Available	{"pid":"459142","picid":"1174929","name":"CFP2-200G-DCO 200G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module","keyword":"Coherent Transceivers#200G Coherent","picurl":"https:\/\/www.fibermall.com\/photo\/p1174929-200x200-cfp2-200g-dco-200g-coherent-cfp2-dco-c-band-tunable-optical-transceiver-module.jpg","test_url":"\/test\/www.fibermall.com\/sale-459142-cfp2-dco-200g-coherent-transceiver.htm","min_price":"7000.00","max_price":"7000.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"100G\/200G Coherent CFP2 DCO Transceiver Module (DWDM C Band 50GHz Grid: 191.15-196.1GHz)The CFP2-DCO pluggable transceiver is a CFP2 MSA-compliant digital coherent optical module designed for line-sid","skulist":[{"pskuid":"150734","cid":"605","pid":"459142","sku":"18291","psvid1":"251079","psvid2":"251080","psvid3":"0","psvid4":"0","left_num":"0","price":"7000.00","strike_price":"0.00","innercode":"6972913892291","addtime":"2022-01-25 00:55:41","uptime":"2024-07-17 03:09:08","status":"0"}],"link":"\/sale-459142-cfp2-dco-200g-coherent-transceiver.htm","displayed_price":{"unit_prefix":"$","value":"7,000.00","min":"7,000.00","max":"7,000.00","usd_min":"7000.00","usd_max":"7000.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"1","datemax":"5","unit_price":"7,000.00","subtotal":7000},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"1","datemax":"5","unit_price":"7,000.00","subtotal":7000},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"1","datemax":"5","unit_price":"7,000.00","subtotal":7000}]}

2x400G Muxponder Service Card: 8x100G QSFP28 to 2x400G CFP2, 2 Slot

$ 4,725.00 / piece

Available

{"pid":"460588","picid":"1178063","name":"2x400G Muxponder Service Card: 8x100G QSFP28 to 2x400G CFP2, 2 Slot","keyword":"Muxponder Service Card","picurl":"https:\/\/www.fibermall.com\/photo\/p1178063-200x200-2x400g-muxponder-service-card-8x100g-qsfp28-to-2x400g-cfp2-2-slot.jpg","test_url":"\/test\/www.fibermall.com\/sale-460588-400g-muxponder-service-card-8-qsfp28-cfp2.htm","min_price":"4725.00","max_price":"4725.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"The 2x400G Muxponder service card supports mapping 8x100G optical signals received on the client side into 2 OTUC4 signals and interconverting OTUC4 signals with optical signals of WDM wavelengths con","skulist":[{"pskuid":"152178","cid":"605","pid":"460588","sku":"40109","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"4725.00","strike_price":"0.00","innercode":"","addtime":"2023-10-29 18:56:59","uptime":"2023-10-29 19:56:59","status":"0"}],"link":"\/sale-460588-400g-muxponder-service-card-8-qsfp28-cfp2.htm","displayed_price":{"unit_prefix":"$","value":"4,725.00","min":"4,725.00","max":"4,725.00","usd_min":"4725.00","usd_max":"4725.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"3","datemax":"5","unit_price":"4,725.00","subtotal":4725},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"3","datemax":"5","unit_price":"4,725.00","subtotal":4725},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"3","datemax":"5","unit_price":"4,725.00","subtotal":4725}]}
200G Muxponder Service Card: 20x10G SFP+ to 1x200G CFP2, 2 Slot

$ 8,835.00 / piece

Available

{"pid":"460592","picid":"1178061","name":"200G Muxponder Service Card: 20x10G SFP+ to 1x200G CFP2, 2 Slot","keyword":"Muxponder Service Card","picurl":"https:\/\/www.fibermall.com\/photo\/p1178061-200x200-200g-muxponder-service-card-20x10g-sfp-to-1x200g-cfp2-2-slot.jpg","test_url":"\/test\/www.fibermall.com\/sale-460592-200g-muxponder-service-card-sfp-cfp2.htm","min_price":"8835.00","max_price":"8835.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"The 200G Muxponder service card supports mapping 20x10G optical signals received from the client into an OTUC2 signal and interconverting the OTUC2 signal to WDM optical signals with wavelengths compl","skulist":[{"pskuid":"152182","cid":"605","pid":"460592","sku":"40112","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"8835.00","strike_price":"0.00","innercode":"","addtime":"2023-10-29 22:38:38","uptime":"2023-10-29 23:38:38","status":"0"}],"link":"\/sale-460592-200g-muxponder-service-card-sfp-cfp2.htm","displayed_price":{"unit_prefix":"$","value":"8,835.00","min":"8,835.00","max":"8,835.00","usd_min":"8835.00","usd_max":"8835.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835}]}
2x200G Muxponder Service Card: 4x100G QSFP28 to 2x200G CFP2, 1 Slot

$ 3,285.00 / piece

Available

{"pid":"460591","picid":"1178069","name":"2x200G Muxponder Service Card: 4x100G QSFP28 to 2x200G CFP2, 1 Slot","keyword":"Muxponder Service Card","picurl":"https:\/\/www.fibermall.com\/photo\/p1178069-200x200-2x200g-muxponder-service-card-4x100g-qsfp28-to-2x200g-cfp2-1-slot.jpg","test_url":"\/test\/www.fibermall.com\/sale-460591-2x200g-muxponder-service-card-4qsfp28-cfp2.htm","min_price":"3285.00","max_price":"3285.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"The 200G Muxponder service card supports mapping 4x100G optical signals received from the client into 2 OTUC2 signals and interconverting the OTUC2 signals to WDM optical signals with wavelengths","skulist":[{"pskuid":"152181","cid":"605","pid":"460591","sku":"40111","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"3285.00","strike_price":"0.00","innercode":"","addtime":"2023-10-29 22:13:03","uptime":"2023-10-29 23:13:03","status":"0"}],"link":"\/sale-460591-2x200g-muxponder-service-card-4qsfp28-cfp2.htm","displayed_price":{"unit_prefix":"$","value":"3,285.00","min":"3,285.00","max":"3,285.00","usd_min":"3285.00","usd_max":"3285.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285}]}
200G Muxponder Service Card: 2x100G QSFP28 or 1x100G QSFP28 and 10x10G SFP+ to 1x200G CFP2, 2 Slot

$ 8,835.00 / piece

Available

{"pid":"460590","picid":"1178067","name":"200G Muxponder Service Card: 2x100G QSFP28 or 1x100G QSFP28 and 10x10G SFP+ to 1x200G CFP2, 2 Slot","keyword":"Muxponder Service Card","picurl":"https:\/\/www.fibermall.com\/photo\/p1178067-200x200-200g-muxponder-service-card-2x100g-qsfp28-or-1x100g-qsfp28-and-10x10g-sfp-to-1x200g-cfp2-2-slot.jpg","test_url":"\/test\/www.fibermall.com\/sale-460590-200g-muxponder-service-card-2qsfp28-sfp.htm","min_price":"8835.00","max_price":"8835.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"The 200G Muxponder service card supports mapping the 20x10G optical signal received on the client side to a 1 OTUC2 signal and interconverting the OTUC2 signal with the optical signal of WDM wavelengt","skulist":[{"pskuid":"152180","cid":"605","pid":"460590","sku":"40110","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"8835.00","strike_price":"0.00","innercode":"","addtime":"2023-10-29 21:55:19","uptime":"2023-10-29 22:55:19","status":"0"}],"link":"\/sale-460590-200g-muxponder-service-card-2qsfp28-sfp.htm","displayed_price":{"unit_prefix":"$","value":"8,835.00","min":"8,835.00","max":"8,835.00","usd_min":"8835.00","usd_max":"8835.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"3","datemax":"5","unit_price":"8,835.00","subtotal":8835}]}
400G Muxponder Service Card: 4x100G QSFP28 to 1x400G CFP2, 1 Slot

$ 3,285.00 / piece

Available

{"pid":"460587","picid":"1178065","name":"400G Muxponder Service Card: 4x100G QSFP28 to 1x400G CFP2, 1 Slot","keyword":"Muxponder Service Card","picurl":"https:\/\/www.fibermall.com\/photo\/p1178065-200x200-400g-muxponder-service-card-4x100g-qsfp28-to-1x400g-cfp2-1-slot.jpg","test_url":"\/test\/www.fibermall.com\/sale-460587-400g-muxponder-service-card-4-qsfp28.htm","min_price":"3285.00","max_price":"3285.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"The 400G Muxponder service card supports mapping 4x100G optical signals received from the client into one OTUC4 signal and interconverting the OTUC4 signal to WDM optical signals with wavelengths comp","skulist":[{"pskuid":"152177","cid":"605","pid":"460587","sku":"40108","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"3285.00","strike_price":"0.00","innercode":"","addtime":"2023-10-29 18:44:25","uptime":"2023-10-29 19:44:25","status":"0"}],"link":"\/sale-460587-400g-muxponder-service-card-4-qsfp28.htm","displayed_price":{"unit_prefix":"$","value":"3,285.00","min":"3,285.00","max":"3,285.00","usd_min":"3285.00","usd_max":"3285.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"3","datemax":"5","unit_price":"3,285.00","subtotal":3285}]}
CFP2-400G-DCO 400G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module

$ 8,000.00 / piece

Available

{"pid":"459143","picid":"1174924","name":"CFP2-400G-DCO 400G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module","keyword":"Coherent Transceivers#CFP2 DCO#400G Coherent","picurl":"https:\/\/www.fibermall.com\/photo\/p1174924-200x200-cfp2-400g-dco-400g-coherent-cfp2-dco-c-band-tunable-optical-transceiver-module.jpg","test_url":"\/test\/www.fibermall.com\/sale-459143-cfp2-dco-400g-coherent-transceiver.htm","min_price":"8000.00","max_price":"8000.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"100G\/200G\/400G Coherent CFP2 DCO Transceiver Module (DWDM C Band 50GHz Grid: 191.15-196.1GHz)The 400G CFP2 DCO is a portfolio of digital coherent optical transceiver (or transponder) modules with up t","skulist":[{"pskuid":"150735","cid":"605","pid":"459143","sku":"18292","psvid1":"251081","psvid2":"251082","psvid3":"0","psvid4":"0","left_num":"0","price":"8000.00","strike_price":"0.00","innercode":"6972913892307","addtime":"2022-01-25 01:02:10","uptime":"2022-10-27 20:25:55","status":"0"}],"link":"\/sale-459143-cfp2-dco-400g-coherent-transceiver.htm","displayed_price":{"unit_prefix":"$","value":"8,000.00","min":"8,000.00","max":"8,000.00","usd_min":"8000.00","usd_max":"8000.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"1","datemax":"5","unit_price":"8,000.00","subtotal":8000},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"1","datemax":"5","unit_price":"8,000.00","subtotal":8000},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"1","datemax":"5","unit_price":"8,000.00","subtotal":8000}]}
CFP2-200G-DCO 200G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module

$ 7,000.00 / piece

Available

{"pid":"459142","picid":"1174929","name":"CFP2-200G-DCO 200G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module","keyword":"Coherent Transceivers#200G Coherent","picurl":"https:\/\/www.fibermall.com\/photo\/p1174929-200x200-cfp2-200g-dco-200g-coherent-cfp2-dco-c-band-tunable-optical-transceiver-module.jpg","test_url":"\/test\/www.fibermall.com\/sale-459142-cfp2-dco-200g-coherent-transceiver.htm","min_price":"7000.00","max_price":"7000.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"100G\/200G Coherent CFP2 DCO Transceiver Module (DWDM C Band 50GHz Grid: 191.15-196.1GHz)The CFP2-DCO pluggable transceiver is a CFP2 MSA-compliant digital coherent optical module designed for line-sid","skulist":[{"pskuid":"150734","cid":"605","pid":"459142","sku":"18291","psvid1":"251079","psvid2":"251080","psvid3":"0","psvid4":"0","left_num":"0","price":"7000.00","strike_price":"0.00","innercode":"6972913892291","addtime":"2022-01-25 00:55:41","uptime":"2024-07-17 03:09:08","status":"0"}],"link":"\/sale-459142-cfp2-dco-200g-coherent-transceiver.htm","displayed_price":{"unit_prefix":"$","value":"7,000.00","min":"7,000.00","max":"7,000.00","usd_min":"7000.00","usd_max":"7000.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.05","isfree":0,"total":"28.05","datemin":"1","datemax":"5","unit_price":"7,000.00","subtotal":7000},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"33.78","isfree":0,"total":"33.78","datemin":"1","datemax":"5","unit_price":"7,000.00","subtotal":7000},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"35.43","isfree":0,"total":"35.43","datemin":"1","datemax":"5","unit_price":"7,000.00","subtotal":7000}]}

Resources

Datasheet


DCI-BOX.pdf
